Digging holes can be very simple. Knowing which tool to use — and in this case, which auger attachment to use with your compact track loader — not so much.
Contractors looking to buy a new auger attachment have no shortage of options. The major construction OEMs have their own portfolios of auger drives and bits, in addition to what the specialized attachment manufacturers have to offer.
When determining which model is right for your business, consider a few things:
Soil conditions: if you often encounter rocky or heavy soils on your jobsites, several models below offer specialized configurations for handling those tricky applications.
Drive type: consider whether you'll benefit more from a planetary auger drive (gear reduction for higher torque) or a direct auger drive (hydraulic motor runs to auger shaft for higher speed).
Bit offerings: do you need a multiple bits to handle a variety of soil conditions? If so, consider an OEM that already offers a suite of bits that will fit your business.
Hole usage: it might seem obvious, but consider what your drilled holes will actually be used for. Will you need a certain diameter or depth on a regular basis?
If you’re looking for an auger, check out Equipment World’s product roundup below.
Blue Diamond
Blue Diamond Attachments Extreme Duty Series 2
Blue Diamond Attachments recently rolled out its new Extreme Duty Series 2 Augers, with six models available for skid steers, compact track loaders, excavators, tractors and mini skid steers.
The EX2, EX3, EX4HF, EX5HF EX6HF and EX7HF are designed to deliver maximum torque, efficiency and durability in challenging drilling environments, such as rocky and heavy soils, the company says.
The attachments are constructed with high-grade materials for prolonged life, according to Blue Diamond. Each auger features an Eaton drive motor and comes standard with 2- or 2.5-inch hex shafts.
Depending on the model, the augers deliver a maximum range of 2,630 to 7,189 foot-pounds of torque. The compact, high-torque drive design allows the auger to extend into the hole maximizing drilling depth and productivity, Blue Diamond says.
New from Equipment World
Get fast, free estimate values for your used construction equipment
Access one of the industry's largest resale and auction databases with the new Construction Equipment Valuation Calculator
For its compact track loader and skid steers, Bobcat offers several auger attachments, including the 35PH and 50PH.
These planetary augers are ideal for high torque applications and can accept multiple bit types and teeth for varying digging conditions. Bobcat also boasts a unique knuckle joint design for digging vertical holes on uneven terrain.
The 35PH and 50PH’s planetary drives can deliver both high speed/low torque and high torque/low speed performance for rock, shale, clay and frost. Operators can also use these augers to install screw anchors and dig with bits over 24 inches in diameter.
Partner Insights
Information to advance your business from industry suppliers

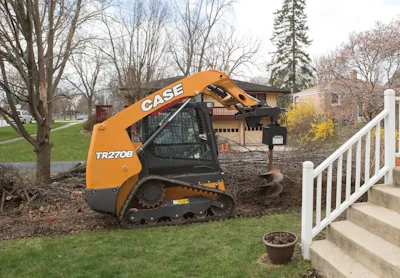

Case CE offers several auger attachments for a variety of applications.
At the top end of the range is the X5075H200 Auger Drive Unit. It delivers 5,069 foot-pounds of max torque, a max flow of 40 gallons per minute and a max auger diameter of 36 inches.
On the other end of Case’s auger attachment spectrum is the X1475H200 Auger Drive Unit, with 2,377 foot-pounds of max torque at max flow and pressure.
The X1475H200 Auger Drive Unit also offers flow from 10 to 25 gpm and a max auger dimeter of 24 inches.
As far as auger bits go, Case highlights the following categories to cover different digging conditions:
HDF Style: for light to moderate ground conditions, offering a fabricated boring head and hardened “fishtail” point
HDC Style: for difficult ground conditions, compacted soils, heavy clay, asphalt, frozen ground, fracturable rock, offering a heavy-duty cast boring head and hardened “fishtail” point
HTF Style: for tree and shrub planting, offering a fabricated boring head, two-meter design and hardened, bolt-on teeth
SSR Rock Augers: for solid, fracturable rock, frozen ground and compact soils, offering bullet style teeth, a fabricated boring head and ¾-inch thick bottom flight
Standard Duty Augers: for light to moderate soils, offering a solid one-piece cast steel boring head and hardened bolt-on gauge and wisdom teeth
Aggressive Duty Augers: for compact soils, heavy clay, frozen soil and cobble-mixed soil, offering a heavy-duty aggressive cast steel boring head, high double flight auger and hardened drive-in gauge and chisel teeth
Case X5075H200 Auger Drive Unit Specs:
Flow: 28-40 gpm
RPM at max flow: 85
Max torque at max flow and pressure: 5,069 foot-pounds
Max auger diameter: 36 inches
Output shaft: 2-inch hex
Case X1475H200 Auger Drive Unit Specs:
Flow: 10-25 gpm
RPM at max flow: 96
Max torque at max flow and pressure: 2,377 foot-pounds
Max auger diameter: 24 inches
Output shaft: 2-inch hex
Caterpillar
Caterpillar A23, A41 and A68
Caterpillar offers three auger attachments for its compact track loaders and skid steer loaders: the A23, A41 and A68.
Offering a drive shaft torque range at max pressure from 1,699.3 to 5,034.6 pound-feet, the A23 runs on a direct-drive gerotor motor, while the A41 and A68 use single planetary reduction and double planetary methods, respectively.
The models can drill holes for footings, fencing, signposts, trees and shrubs in construction, agricultural and landscaping applications. Available bits include tree, industrial and standard rock drill head.
Contractors can also opt for various extensions for digging deeper and adapting to round- or hex-shaft bit designs.
Caterpillar A23 Auger Attachment Specs:
Drive shaft torque at maximum pressure: 1,699.3 pound-feet
Drive method: Gerotor motor – direct drive
Optimal hydraulic flow: 11-22 gpm
Optimal hydraulic pressure: 2,100-3,400 psi
Overall width with bracket: 45 inches
Overall length with bracket: 23.5 inches
Caterpillar A41 Auger Attachment Specs:
Drive shaft torque at maximum pressure: 3,073.3 pound-feet
Drive method: Gerotor motor – single planetary reduction
Optimal hydraulic flow: 11-22 gpm
Optimal hydraulic pressure: 2,100-3,400 psi
Overall width with bracket: 45.4 inches
Overall length with bracket: 23.5 inches
Caterpillar A68 Auger Attachment Specs:
Drive shaft torque at maximum pressure: 5,034.6 pound-feet
Drive method: Gerotor motor – double planetary drive
Optimal hydraulic flow: 25-34 gpm
Optimal hydraulic pressure: 3,002-4,206 psi
Overall width with bracket: 45.4 inches
Overall length with bracket: 23.5 inches
Danuser

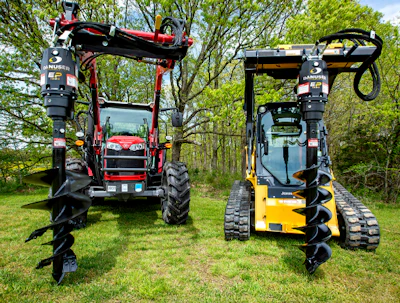

Danuser EP Series
Attachment manufacturer Danuser has four models in its EP series: the EP615, EP1020, EP1530 and EP2035.
A key selling point is Danuser’s proprietary planetary design, which the company says offers up to 42% more torque than competitors. That planetary drive requires 6 to 35 gpm flow at up to 3,500 psi among all four models with a max hydraulic back pressure of 3,500 psi.
Danuser’s motor hoses are routed out the top of the drive unit housing to improve digging depth in tighter spots. The EP series mounts feature an adjustable cradle with two positions for transporting: 15- and 30-degree angles.
Danuser EP615 Auger Attachment Specs:
Output torque: 1,014 to 1,774 foot-pounds
Pressure: 2,000 to 3,500 psi
Flow: 6 to 15 gpm
RPM: 36 to 91
Max hydraulic back pressure: 1,500 psi
Max diameter auger: 24 inches
Danuser EP1020 Auger Attachment Specs:
Output torque: 1,270 to 2,222 foot-pounds
Pressure: 2,000 to 3,500 psi
Flow: 10 to 20 gpm
RPM: 48 to 97
Max hydraulic back pressure: 1,500 psi
Max diameter auger: 30 inches
Danuser EP1530 Auger Attachment Specs:
Output torque: 1,874 to 3,279 foot-pounds
Pressure: 2,000 to 3,500 psi
Flow: 15 to 30 gpm
RPM: 49 to 98
Max hydraulic back pressure: 1,500 psi
Max diameter auger: 36 inches
Danuser EP2035 Auger Attachment Specs:
Output torque: 2,529 to 4,426 foot-pounds
Pressure: 2,000 to 3,500 psi
Flow: 20 to 35 gpm
RPM: 48 to 85
Max hydraulic back pressure: 1,500 psi
Max diameter auger: 36 inches
Digga
Digga Skid Steer Drilling Augers
Construction attachment and accessories manufacturer Digga offers a full lineup of auger drives, including eight aimed at the skid steer market.
Key selling points on Digga’s auger drives include a design that allows for the attachment’s gearbox to enter the hole and maximize drilling depth without extensions and the Halo Alignment System, located on the hood of the ring and eliminating the need for a spotter.
At the low end of Digga’s range, the 1DSS and 2DSS drives are optimized for the 1- to 2.5-ton skid steer range. These units offer 1,691 and 2,625 foot-pounds of max torque, respectively.
Digga also offers, at the top of its range, auger drives for high-flow skid steers. This includes the 4DDS with 4,150 foot-pounds of torque and the 6DDS at 5,717 foot-pounds.
Digga 1DSS Auger Drive Specs:
Torque at 3,000 psi: 1,452 foot-pounds
Max torque at 3,500 psi: 1,691 foot-pounds
Recommended flow: 6 to 16 gpm
Max pressure 3,500 psi at 16 gpm
Max flow: 30 gpm at 1,800 psi
Digga 2DSS Auger Drive Specs:
Torque at 3,000 psi: 2,254 foot-pounds
Max torque at 3,500 psi: 2,625 foot-pounds
Recommended flow: 10 to 26 gpm
Max pressure 3,500 psi at 16 gpm
Max flow: 30 gpm at 1,800 psi
Digga 3DSS Auger Drive Specs:
Torque at 3,000 psi: 2,829 foot-pounds
Max torque at 3,500 psi: 3,294 foot-pounds
Recommended flow: 10 to 30 gpm
Max pressure 3,500 psi at 16 gpm
Max flow: 30 gpm at 1,800 psi
Digga 4DSS Auger Drive Specs:
Torque at 3,000 psi: 3,276 foot-pounds
Max torque at 3,500 psi: 3,814 foot-pounds
Recommended flow: 10 to 30 gpm
Max pressure 3,500 psi at 16 gpm
Max flow: 30 gpm at 1,800 psi

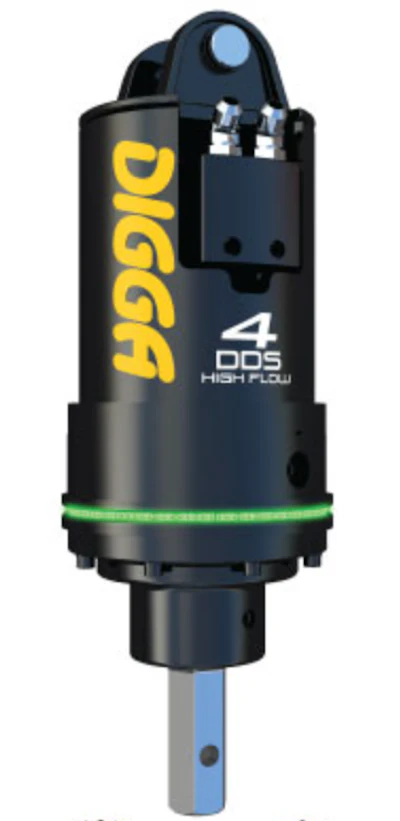

Digga 4DDS Auger Drive Specs:
Torque at 3,000 psi: 3,557 foot-pounds
Max torque at 3,500 psi: 4,150 foot-pounds
Recommended flow: 10 to 42 gpm
Max pressure 3,500 psi at 27 gpm
Max flow: 42 gpm at 2,200 psi
Digga 5DDS Auger Drive Specs:
Torque at 3,000 psi: 3,903 foot-pounds
Max torque at 3,500 psi: 4,545 foot-pounds
Recommended flow: 10 to 36 gpm
Max pressure 3,500 psi at 27 gpm
Max flow: 55 gpm at 1,700 psi
Digga 6DDS Auger Drive Specs:
Torque at 3,000 psi: 4,909 foot-pounds
Max torque at 3,500 psi: 5,717 foot-pounds
Recommended flow: 12 to 36 gpm
Max pressure 3,500 psi at 27 gpm
Max flow: 55 gpm at 1,700 psiJohn Deere
John Deere PA15B, PA30B and PA40
Deere’s auger attachments — the PA15B, PA30B and PA40 — use planetary drives and cover a max bit diameter from 24 to 36 inches.
The attachments also cover a wide range for max hydraulic flows, starting at 17 gpm and reaching up to 42 gpm.
Deere says the three attachments’ integral motors and planetary gearbox housings bring the gear set closer to the motor for improved efficiency and less component stress. Additionally, Deere’s gearboxes have an updated input shaft with a sturdier design.
John Deere PA15B Auger Attachment Specs:
Weight without bracket: 134 pounds
Maximum hydraulic flow: 17 gpm
Planetary max torque rating: 4,166 foot-pounds
Maxi auger bit diameter: 24 inches
John Deere PA30B Auger Attachment Specs:
Weight without bracket: 138 pounds
Maximum hydraulic flow: 30 gpm
Planetary maximum torque rating: 4,500 foot-pounds
Maximum auger bit diameter: 36 inches
John Deere PA40 Auger Attachment Specs:
Weight without bracket: 195 pounds
Maximum hydraulic flow: 42 gpm
Planetary maximum torque rating: 5,000 foot-pounds
Maximum auger bit diameter: 36 inches
Kubota

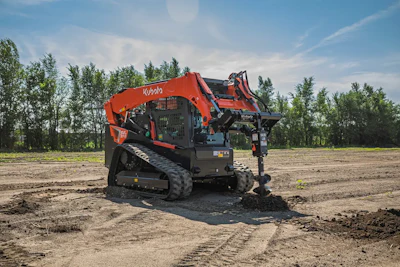

Kubota/Land Pride SA20 Series
Kubota’s auger attachments come courtesy of its subsidiary Land Pride, including the SA20 series.
With this series, you can drill holes from 9 to 36 inches in diameter, and up to 48 inches deep without extensions. Land Pride offers standard and heavy-duty configurations and round or hex shafts.
Hydraulic requirements on different configurations range from 10 to 30 gpm at 1,500 to 3,500 psi. The base weight of the SA20 without options comes in at 46 pounds.
Hex-head double-auger options range from 6 to 36 inches, and rock augers from 6 to 24 inches.
Land Pride SA20 Auger Attachment Series Specs:
Hydrualic requirements: 10 to 30 gpm at 1,500 to 3,500 psi
Base weight without options: 46 pounds
Auger length: 49 to 50.75 inches
Auger pipe: 2.5 inches
Hex head double augers: 6 to 36 inches/2 to 12 teeth
Rock augers: 6 to 24 inches/ 6 to 20 teeth
New Holland

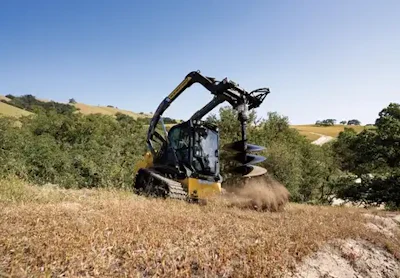

New Holland AD11L, AD14, AD14D, AD18 and AD18D
Among New Holland's 17 auger/post driver attachments, five models are compatible with skid steers and compact track loaders: the AD11L, AD14, AD14D, AD17 and AD18D.
On the bottom of the range is the 2-inch output shaft AD11L, offering a max auger diameter of 24 inches and flow from 6 to 12 gpm. Max pressure is 3,500 psi on the 201-pound attachment.
The largest in the range is the AD18D, which features a max auger dimeter of 36 inches and flow rate from 15 to 30 gpm. It also has 3,500 psi of max pressure but more weight at 333 pounds.
New Holland AD11L Auger Attachment Specs:
Max auger diameter: 24 inches
Flow: 6 to 12 gpm
Max pressure: 3,500 psi
Output shaft: 2-inch hex
Weight: 201 pounds
New Holland AD14 Auger Attachment Specs:
Max auger diameter: 30 inches
Flow: 10 to 25 gpm
Max pressure: 3,500 psi
Output shaft: 2-inch hex
Weight: 333 pounds
New Holland AD14D Auger Attachment Specs:
Max auger diameter: 30 inches
Flow: 10 to 25 gpm
Max pressure: 3,500 psi
Output shaft: 2 inches
Weight: 333 pounds
New Holland AD18 Auger Attachment Specs:
Max auger diameter: 36 inches
Flow: 15 to 30 gpm
Max pressure: 2,500 to 3,500 psi
Output shaft: 2-inch hex
Weight: 333 pounds
New Holland AD18D Auger Attachment Specs:
Max auger diameter: 36 inches
Flow: 15 to 30 gpm
Max pressure: 3,500 psi
Output shaft: 2 inches
Weight: 333 pounds
Pengo

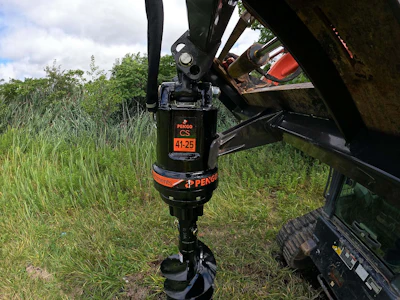

Paladin Attachments/Pengo CS Series
Paladin Attachments offers a long list of auger drives and auger bits under its subsidiary brand, Pengo.
Falling under the umbrella of the CS Series, Pengo’s auger drive units feature standard hunting gearing for better life and efficiency, a secure lock shaft and a compact housing design for improved handling, strength and durability.
Pengo’s CS Series also boasts oversized bearings for better load handling, as well as extreme shaft seals for reduced service intervals.
For the five skid steer mounted models Pengo offers, the CS Series runs from the 277-pound CS 16-15 auger drive all the way up to the 433-pound CS 62-48.
Max torque runs from 1,101 foot-pounds all the way up to 5,948 foot-pounds, while max back pressure ranges from 508 psi to 653 psi.
