Ford reveals 10 torture tests for 2015 F-150 including shrapnel, acid bath, frame twisting (GIFs, VIDEO)

Updated Apr 14, 2014

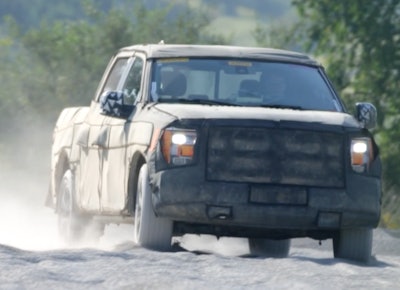

2015 Ford F-150 torture test

When the 2015 F-150 was announced in January a lot of people wondered just how durable a pickup with an aluminum body could be.

Wonder no more.

Today, Ford let us in on their torture-testing process for the 2015 F-150 with video of all 10 steps. Some of these steps are so grueling that just five days of prolonged testing would equal 10 years or 150,000 miles by what Ford calls the “roughest customers.”

By the time the new F-150 hits dealers this fall, it will have been subjected to 10 million miles of combined real-world and simulated durability testing. Below are descriptions of all 10 steps. If you’d rather see the full video of testing we’ve included it below.

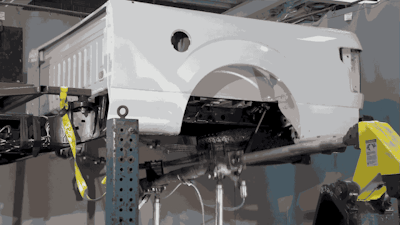

1. Seven-channel input torture rack

Ford’s custom torture rack twists and shakes the F-150 in seven different ways simultaneously for five days to stress-test the durability of the frame. That’s the equivalent of 225,000 miles.

Seven-input torture rack

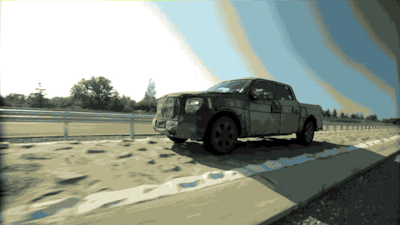

2. Silver Creek durability course

“Imagine hitting a crater-sized pothole every five feet for miles—going 20 miles per hour,” Ford says describing the Silver Creek durability course. The course is made up of two extremely rough roads: one is composed of 15 types of chuckholes and the other is made from broken pieces of concrete. The surface is so terrible that traveling 500 miles on it would be the equivalent to 20,000 miles on normal rough roads.

Silver Creek durability course

3. Power Hop Hill washboard track

Ford’s washboard track has an 11 percent grade and stresses engine and transmission components by knocks wheels from the surface before allowing them to experience a hard landing over and over again.

Power Hop Hill

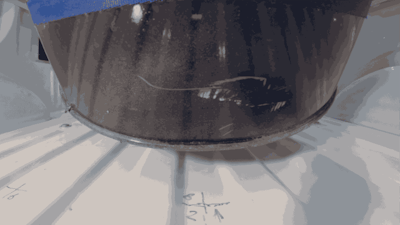

4. Drum drop bed durability test

Ford dropped 55-gallon drums into the F-150’s bed at an angle to test the durability of the aluminum bed.

Drum Drop

5. Acid bath aluminum test

As Ford has mentioned in the past, the aluminum body of the 2015 F-150 won’t rust. But to put that advantage to the test, they developed a corrosive acidic spray and bathed the truck in it before soaking it in a high-humidity chamber. “After simulating 10 years of exposure, the aluminum material showed virtually no signs of degradation,” Ford says.

Corrosion bath

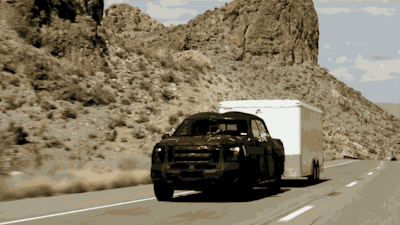

6. Davis Dam 13-mile climb while towing

The Davis Dam durability route stretches from just outside Bullhead City, Ariz., to the top of Union Pass. Ford hitched up maximum trailer loads and ran the AC full blast while pushing the F-150 13 miles at speeds from 35 mph to 65 mph.

Davis Dam

Partner Insights
Information to advance your business from industry suppliers
8 Crucial Elements of a Tire Safety Program
Presented by Michelin North America
How High Fuel Prices hurt Your Business
Presented by EquipmentWatch
Selecting the Correct Construction Tire Solution
Presented by Michelin North America

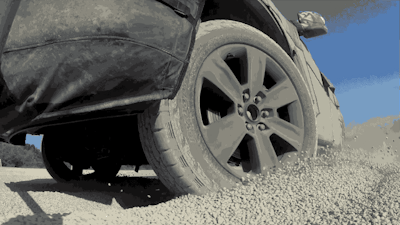

7. Stone Peck paint testing

To test the paint on the new F-150, Ford drove the truck over 150 miles of gravel roads before subjecting the truck to another 150 miles over pellets of jagged scrap iron—basically heat-strengthened shrapnel. Ford says just about ever surface on the truck was pelted.

Stone Peck

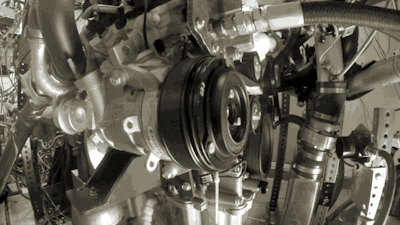

8. Thermal engine shock

Ford placed the F-150 engines in a special cell and simulated towing at full throttle up a steep grade through a dynamometer before shock testing them by cooling them to minus 20 degrees in 20 seconds. The engine then runs at maximum power while temperatures stabilize before being chilled again. The process is run 350 times over more than 400 hours.

Thermal shock

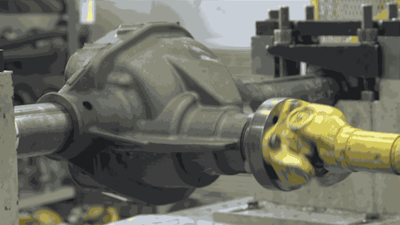

9. Rock and stop rear axle test

To test the durability of the rear axle for off-roading, Ford performs 500 aggressive starts on a specially designed stand that creates impacts at nearly 2,000 lb.-ft. of torque— 130 percent more torque than the truck is capable of making.

Rock and Stop

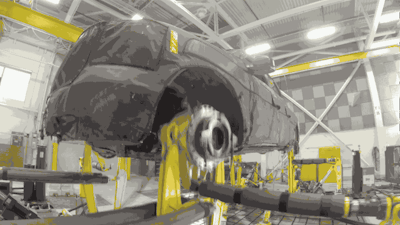

10. Twist ditch frame test

The twist ditch stress-tests the truck’s body and frame through “a set of parallel dirt mounds built to create a situation where one front wheel hangs in the air while the opposing rear wheel leaves the ground repeatedly.”

Twist Ditch 2

[youtube 4lWUylk9jCQ nolink]
