New Loaders, New Math

Introduction of Tier 4 Interim wheel loaders brings end to Liebherr’s transmission-based nomenclature

Regardless of how it adds up, 2plus1 and 2plus2 represent the old math at Liebherr.

A single drivetrain solution will cover the future range of wheel loaders formerly identified by the “2plus” nomenclature. Used to recognize different hydrostatic transmissions in the crossover large mid-sized and smaller large-size loader range, “2plus” is being phased out as the company introduces new Tier 4 Interim machines. “Our optimized control technology has permitted this change with no loss of performance, and with the benefit of the 2plus1 driveline with its uninterrupted tractive force,” explains Johann Stickler, managing director of Liebherr’s wheel loader plant in Bischofshofen, Austria. “Since this system is now standard on the all-round loaders and the two smaller machines (L 550 and L 556) in the large category, we can now dispense with the terms.”

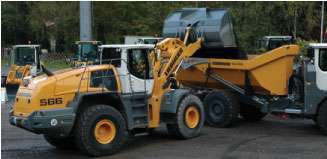

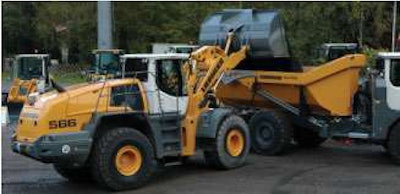

The Tier 4 Interim L 566 teams up with the recently introduced TA 230 articulated dump truck.The Tier 4 Interim L 566 teams up with the recently introduced TA 230 articulated dump truck.

The use of two hydraulic motors, first adopted by Liebherr in 1992 to allow heavier loaders to reach higher speeds, was extended to 2plus2 on even larger loaders in 2000. To compensate for the greater discrepancy between tractive force and maximum speed increases, either one or both variable axial piston motors would operate on the tractive force curve, ensuring no break when the speed range changed. The stepless technology of the smaller 2plus1 transmission – with two speed ranges – is no longer a differentiator.

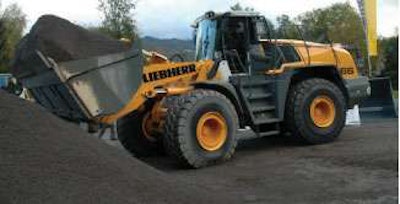

Matching demand to output, the Liebherr Power Efficiency (LPE) machine management system reduces fuel usage by up to 8 percent in Liebherr wheel loaders, also available with the LIDAT data transfer and locating system.Matching demand to output, the Liebherr Power Efficiency (LPE) machine management system reduces fuel usage by up to 8 percent in Liebherr wheel loaders, also available with the LIDAT data transfer and locating system.

“Why do we intend to retain the hydrostatic transmission principle? It allows us to reach almost the full tractive force needed to penetrate heaped material during a load handling cycle at a lower engine speed,” says Stickler. “This gives us lower fuel consumption than would be possible with a torque converter transmission.”

During an international trade press event at the Bischofshofen plant, near Salzburg, Liebherr outlined the new, roughly 4.2- to 7.2-cubic-yard range of loaders covered by models L 550 through L 580. Available for operation were the new 5.2-cubic-yard L 566, impressively robust and responsive, and 4.7-cubic-yard L 556, the latter retaining an older-tier emissions standard for use in non-compliant international markets.
