Doosan updates excavators with T4i engines, power modes

Updated Dec 19, 2012

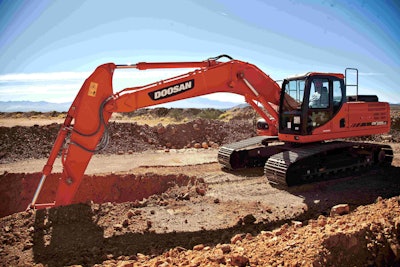

Doosan’s DX255LC-3 excavatorDoosan’s DX255LC-3 excavator


Doosan has updated its DX225LC-3 and DX255LC-3 excavators with a Tier 4 interim-compliant engine as well as new selectable power modes and work modes.

Both excavators are powered by a turbocharged 6-cylinder Doosan DL06K water-cooled diesel engine. The engine on the DX225LC-3 produces 167 horsepower while the DX255LC-3’s engine produces 185 horsepower. Both machines feature an electronic power optimizing system (EPOS) with four power modes to match power and fuel consumption to the job at hand.

The excavators also feature four work modes: digging, breaker, shear and lifting. Each work mode is tailored to that application.

A new Intelligent Floating Boom option is available for both excavators that lets the boom move up and down without hydraulic flow, while the breaker mode allows the boom to freely move down, only without hydraulic flow. The modes can be disengaged through a temporary reset button.

Doosan has made several updates to the cab as well. Cabin vibration has been reduced 20 percent and features like telescoping joystick controls, an adjustable suspension seat with headrest and adjustable armrest are included.


Quick specs are listed below:

Excavator Operating weight Breakout force Arm breakout force Max dig reach Max dig depth Dump height
DX225LC-3 49,604 pounds 33,510 pounds 23,810 pounds 31 feet, 10 inches 21 feet, 7 inches 22 feet, 5 inches
DX255LC-3 56,659 pounds 39,463 pounds 28,219 pounds 32 feet, 10 inches 22 feet, 4 inches 23 feet, 1 inches

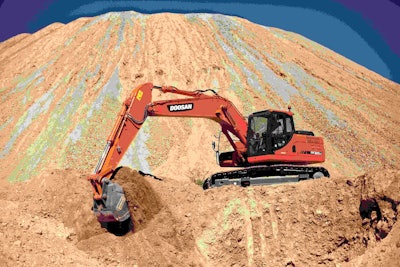

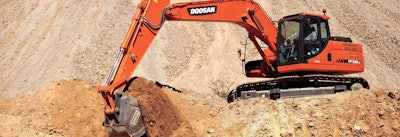

Doosan’s DX225LC-3 excavatorDoosan’s DX225LC-3 excavator
