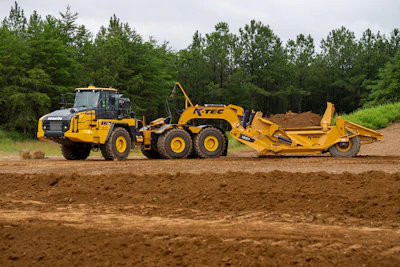

Komatsu’s HM460-6 articulated dump truck has been approved to pull K-Tec’s 1237 ADT scraper, giving contractors a new option for mass earthmoving jobs.
The 518-horsepower articulated dump truck is an ideal match with the 37-cubic-yard-capacity scraper, the company says. The pairing was tested and approved by Komatsu engineers to withstand the demands of the jobsite while retaining the standard one-year unlimited warranty on the truck. Optional extended coverage up to 60 months and 10,000 hours is also available for the HM460-6.
An articulated dump truck chassis matched with a tow-behind scraper delivers advantages over traditional excavator-and-truck setups when operators get into long-distance hauling applications, says Bruce Boebel, Komatsu director of construction product and service, including “the ability to handle soft and complex ground conditions and travel at a relative high rate of speed.” The mass-earthmoving platform also requires just one operator instead of two.
For added flexibility, the HM460-6 can be converted back for use as a dump truck when the job requires it.
The collaboration between Komatsu and K-Tec allows Komatsu dealers to order K-Tec scrapers, hitches and parts directly from K-Tec effective immediately. Interested buyers should check with their local Komatsu dealer for availability.
Powered byInside the HM460-6
The new HM460-6 replaces the HM400-5 in Komatsu’s lineup, touting a new high-output powertrain, advanced traction control system and redesigned cab.
The truck runs on Komatsu’s new 518-horsepower DBA127 Tier 4 Final diesel engine, engineered to deliver increased torque at lower engine speeds and improved fuel efficiency. The engine is paired with a new nine-speed Komatsu transmission and intelligent gear control, designed for performance across challenging driving conditions such as soft and wet ground.
The HM460-6 also features the Komatsu Traction Control System matched with cross-axle differential locks to help maintain traction in all conditions. A standard hydro-pneumatic suspension system further enhances ride comfort and stability.
Inside the redesigned cab, operators will find improved sightlines, intuitive monitors and new operator-assistance technologies.
To get a closer look at the HM460-6, check out our video with Boebel below:
The HM400-5 was Komatsu's top-selling articulated dump truck for the first half of this year, according to Fusable's EDA finance data, positioning the HM460-6 as a strong contender in the market.
[Your Next Read: Articulated Dump Truck Buyer’s Guide 2026]
Inside the K-Tec 1237
K-Tec says the 37-cubic-yard 1237 is its most popular ADT scraper, featuring fast hydraulics, a smooth ride and joystick scraper control.
The unit can be self-loaded, top-loaded or push-loaded. GPS and laser mounts are avaialble for added precision and productivity on mass excavation jobs.
Hardox and Weldox steel technology makes the 1237 both durable and lightweight. Grease-less bushings and only five grease points keep daily maintenance to a minimum. A variety of cutter blades and router bits are available.
K-Tec offers a 6-month parts and labor warranty and a 3-year structural warranty.
Komatsu HM460-6 Haul Truck Specs
- Engine Power: 518 hp at 1,700 rpms
- Bed Capacity, Heaped: 33.6 yd³
- Max. Payload: 46.3 tons
- Operating Weight: 165,126 lbs
K-Tech 1237 ADT Scraper Specs
- Heaped Capacity (ISO): 37 yd³
- Struck Capacity: 20.25 yd³
- Max Loading Rating: 88,000 lbs
- Bucket Dimensions: 12′ W x 4′ 3″ H x 12′ 10″ L
- Cutting Width: 12′
- Cutting Edge: 3-Piece Blade
- Gate Opening : 6′ 8″
- Turning Radius: 30'
