Equipment manufacturers have mostly moved past the challenges of developing engines to meet Tier 4 Final emissions standards and have turned their attention to making their excavators more productive, easier to operate and technologically advanced.
Examples of design improvements include such features as E-fencing to keep boom, bucket and arm within set parameters, loads of camera views, including at the bucket level, and people detectors.
Models are also being launched with various tailswings to match the working environment, hydraulic and in-cab touchscreen systems to make attachment changes faster and easier, and speeding up swing and other movements for greater efficiency and productivity.
In this report, we take a look at the latest models from 14 manufacturers: Caterpillar, Case, Bobcat, Develon, Hitachi, JCB, John Deere, Kobelco, Komatsu, Link-Belt, LiuGong, Mecalac, Takeuchi and Volvo.
Caterpillar
Cat had a three- to four-year cycle of introducing new models, transitioning from the C Series to the D Series and then from E to F Series. Once the machines were fully evolved to meet Tier 4 Final emission standards, however, the company moved to the Next Gen Hex platform, which focused more on refining than redefining.
For example, the 336-08 and 340-08 have 6-inch wider stances than their predecessors – 3 inches of additional spacing on both sides. This small change yields greater stability, allowing the use of slightly larger buckets and providing greater lift-over-side capacities.
The 352-08, which replaces the 349, has a heavier counterweight, more engine and hydraulic horsepower and is available with a removeable counterweight option and a fixed gauge or variable gauge.
Models from the 313 to the 395 share technology, from Cat 2D E-fencing to Payload, have the same cab and optional steer stick. GC versions are the exception, with their more basic feature sets.
The four-camera option provides 360-degree views, and adding three more cameras allows the use of People Detect, a 270-degree alert for people near the excavator. Optional inspection lighting illuminates compartments and back-of-cab lighting of the engine compartment.
The 315, 325 and 335 are reduced-tailswing models with the foot of the boom moved closer to the machine for greater lift capacity.
Cat Grade with Assist is standard, and a single GPS system is available as a cost-effective option for customers who want to sample the feature or know they’ll have limited use for the traditional dual-GNSS setup. The single GPS setup requires the machine to be reoriented after being moved by swinging 30 degrees either direction. The single GPS can be upgraded to the dual system at any time.
Cat Payload can now differentiate based on loading or dumping locations so that not every load is added to the measurement. For example, the operator can track the payload going to a dump truck while not adding in the loads going to a tub grinder.
“You’re able to easily sort materials now,” says Ryan Neal, product application specialist, excavators, North America, Caterpillar.
Case E Series

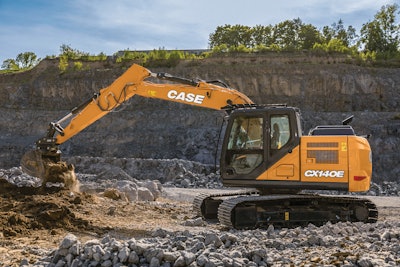

The smallest of the new E Series excavators from Case, the CX140E has 102 net horsepower, 28,900 pounds of operating weight and three arm choices providing up to 19 feet 3 inches of maximum dig depth. The 10-inch LCD display lets the operator customize the view, and buttons are configurable.Case CE
Excavators – even large models – are often used as tool carriers, and the advanced electronics on the E Series allows the setting and storage of performance factors for several attachments.
“When operators want to switch attachments, they simply press a button to automatically change the attachment settings, then connect the attachment to the machine and get to work,” says Diego Butzke, product manager, Case Construction Equipment. “Swapping attachments for a particular job at the push of a button is a significant advantage compared to calling in someone with a flow meter to measure flow and pressure to ensure the attachment is getting what it needs.”
OEM-fit Case SiteControl offers 2D and 3D machine control designed by Leica Geosystems.
Develon

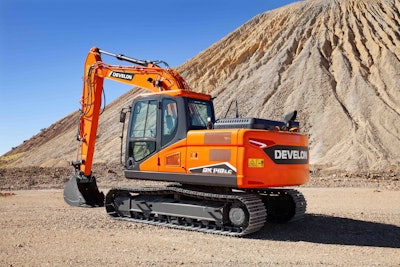

The Develon G2 DM03-D34 engine in the DX140LC-7 is rated at 100.2 net horsepower. Operating weight is 32,408 pounds. Smart Power Control and Mechatronics Design improve efficiency and optimize performance. An optional boom float setting allows the boom to move freely with ground contours, ideal for finishing work.Develon
The LC-7 is the standard model, and the DX140LCR-7 is a reduced-tailswing version.
The DX140LC-7K will be the newest iteration, making its way to dealers in the coming months. (Develon is the new name for the former Doosan Infracore.)
The transition to dash-7 models is complete for most Develon excavators. Standard features of -7 models include electrohydraulic controls, rearview camera and LED lighting. Develon Fleet Management telematics is also standard and includes GNSS access, making it easier to add 2D and 3D systems. One- and two-way hydraulic piping to the tool attachment point is another standard feature.
The optional AVM (All-Around View Monitor) provides a 360-degree view of the machine and its surroundings. Heating and cooling for the standard air suspension seat is another option. Power boost is available to the operator at the touch of a button or can be set to auto-sense, where the excavator automatically gets increased hydraulic power to meet short-term needs.
The DX140LC-7 and DX255LC-7 feature Fine Swing, which provides greater control when slowing at the end of the swing and reduces the pendulum effect of craned objects and materials. The DX225LC-7 has advanced electronics for use with 2D and 3D machine control as well as grade assist, bucket angle setting, swing assist for repetitive tasks and limiting for swing, ceiling, floor and arm out.
Develon unveiled its first 100-metric-ton excavator at ConExpo 2023, the DX1000LC-7. It is suited for pit and quarry work as well as large earthmoving and excavation projects.
JCB 220X

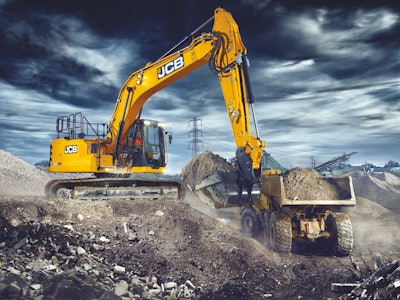

The 220X from JCB has 173 horsepower, 54,549 pounds of operating weight and 21 feet 11 inches of dig depth. Proportional controls can be customized for preferred speed and control of attachments. Boom float allows smooth grading on hard surfaces and improves breaker efficiency. The most popular configuration includes a 10-foot monoboom, rearview camera and quick coupler pipework.JCB
High-flow auxiliary hydraulics are standard, with medium- and low-flow options available. The dipper limiter keeps the bucket from striking the body of the excavator and can be reset when bucket sizes are changed.
Of JCB’s six models, four are conventional tailswing and two have reduced tailswing.
The undercarriage is a fully welded, X-frame design. The engine is a JCB EcoMax.
JCB uses KYB and Kawasaki hydraulic components. The Advanced Tool Select stores settings for up to 10 attachments. A flow diverter and two-way plumbing are at the end of the stick, which can also be configured to one-way flow. LiveLink telematics are standard for five years.
GPS-ready for Topcon is an option on the 220X. A 7-inch monitor, 11 HVAC vents, joystick and button placement on the seat base and electrohydraulic controls are designed to deliver a quality operator experience, JCB says.
John Deere

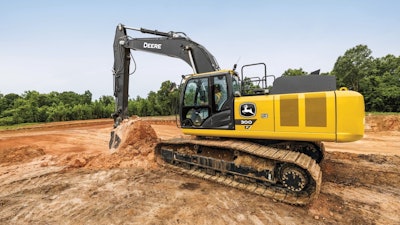

A 9-liter John Deere Power Tech engine rated at 271 net horsepower provides the power for the John Deere 350 P-Tier excavator. Operating weight is 80,985 pounds. Ground level reach with the Monoboom is 35 feet 9 inches. Options include right and left rear cameras with additional LED lighting and hydraulic coupler-ready configuration.John Deere
The company offers a 200 G-Tier in the 20-metric-ton size class. G-Tier machines have fewer features while retaining the same design and construction elements of similar models.
Deere’s X-Tier concept excavators, with the company’s most advanced drivetrain technology, have been on display at the Consumer Electronic Show and ConExpo, but none is in production at this time.
Deere’s 130 through the 380 P-Tier excavators have gotten upgraded undercarriages, chain tensioners and access to the tensioner grease zerk fitting. The point where the tensioner mounts to the idler pulley has been improved to reduce chain snaking and further reduce the risk of de-tracking, the company says.
“Undercarriage is a high-cost component,” says Steger, “so efforts to control costs here make a big difference.”
The 130 through the 470 P-Tier machines now come with a standard bucket camera system, which debuted at this year’s ConExpo and hit the market July 24. The fixed camera mounts on the stick just below where it meets the boom. It gives a view of the bucket or other ground-engaging tools where operator sightlines are otherwise obstructed. It uses a dedicated display positioned just above the standard monitor. While the camera is fixed, the monitor provides pan and tilt views, “view offset” to look left or right of center and also contrast control. The enhanced view helps in most applications, especially for seeing the bottom of the excavation and for ground-level truck loading, Deere says.
The 250 through 380 P-Tier excavators have electric fans instead of hydraulic on all three cooling systems – engine, hydraulics and fuel. This results in around 7% better fuel economy with no loss of productivity, according to the company.

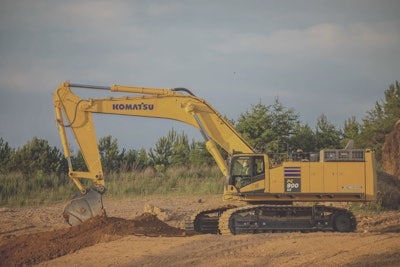

Komatsu PC900LC-11
The Komatsu PC900LC-11 is an 842-horsepower machine designed for heavy construction, demolition, material handling, deep sewer and water, large mass excavation and mining and quarry operations. With its larger bucket and increased lift capacity, it offers up to 40% increased productivity, 25% more arm crowd force and 12% more swing torque than the PC800LC-8 on which it’s based.Komatsu
“The 800 was well known for being strong and reliable and was well suited to demolition and material handling,” says Kurt Moncini, senior product manager, Komatsu North America. “But the demand now is for high-volume, high-speed production-class machines to fill 40- and 45-ton articulated trucks in four passes.”
Engine horsepower is up 10%. Arm breakout force is 14.5% higher. Bucket breakout force is up 11%, and swing speed is 14% faster.
Although the undercarriage remains largely unchanged, the swing bearing is larger and has more bolts on both the inner and outer bearing mounts. It also has two independent systems, each with its own motor and hydraulic circuit.
The revolving frame structure has thicker plates. There are two arm cylinders instead of one.
Buckets for the 900 are larger than for the 800. Controls are electrohydraulic, and the hydraulic system has electronic monitoring for increased performance and efficiency, the company says.
Overall production has been increased up to 48%.
The cab, seat, armrests and monitor have all been upgraded. Four cameras providing a top-down view are standard. The swing radius is shown on the display in red, and a 2-meter buffer zone is shown in yellow.
Walkways are on both sides of the excavator with tie-off points, and an illuminated walkway runs through the rear. Filters are grouped, and hydraulic filters are in a single plane, rather than stacked, for easier access. A 24-volt grease pump with hose and reel feeds from a bucket.
The PC900LC-11 weighs 100 metric tons. Counterweight removal has been simplified, and with the counterweight, arm and bucket removed, the excavator’s weight drops to around 155,000 pounds for easier transport.

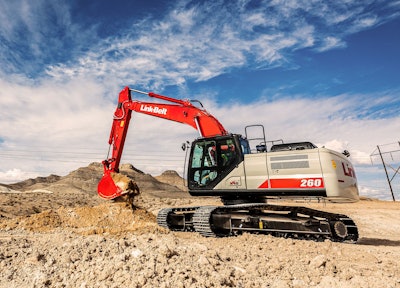

Link-Belt X4S Series
One of six models in Link-Belt’s new X4S Series, the 260 X4S has 177 horsepower and a 57,300-pound operating weight. Maximum dig depth is 22 feet 8 inches and reach at ground is 33 feet 2 inches. RemoteCare telematics are standard, and the new dual-band modem improves data communication.Link-Belt
The X4S Series adds six new models with redesigned cabs, 10-inch monitors and new dual-band modems for improved performance of RemoteCare telematics communications. The warranty period is five years, 5,000 hours full coverage, and five-year, 10,000-hour coverage on the structure.
Notable in the X4S Series are the 170 X4S, the 190 X4S and the 220 X4S. The latter has an Isuzu engine rated at 160 net horsepower. For the 170 X4S and 190 X4S, Link-Belt went with Yanmar engines rated at 120 net horsepower.
“The X4 Series was our line of Tier 4 Final machines,” says Darren Hoskins, manager of product and innovation, LBX Link-Belt. “They remain available because they are robust, well-configured machines that serve customers well.
“The X4S Series machines offer additional comfort, refinement and features that many customers are seeking in the latest-model excavator.”
LiuGong F Series

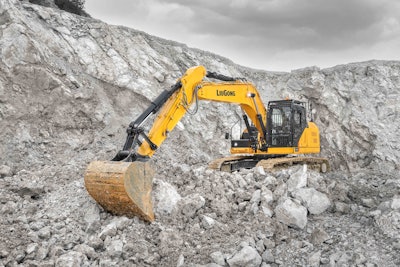

The LiuGong 922F has a Cummins QSB6.7 engine rated at 147 net horsepower and typical operating weight of 50,265 pounds. Spec choices include 24- and 28-inch shoes and and an arm of 7 feet 10 inches or 9 feet 7 inches. The rugged H-beam upper structure of the 922F allows the boom to be center-mounted for improved weight distribution and better management of stress loads from the attachment.LiuGong
“EH controls give better control and accuracy,” says Jim Joy, product manager, excavators, LiuGong. “But the real story is the wide range of additional features enabled by electrification.”
Attachments are set up on the in-cab monitor by the operator; whereas, before they were hard-wired in or installed by a technician. Auto idle, auto shutdown and work modes are other new features, also managed through the monitor.
Power boost gives 9% more pressure and force for about 8 seconds at the touch of a button. The system can also auto-sense the need for a power boost.
Lift mode disables auto idle to prevent unanticipated changes in engine speed while suspending a load during a lift job. There are four joystick patterns available, also managed through the touchscreen monitor.
Work modes are Power, Standard and Economy. Trenching is one example where Power mode is likely the best choice, he says. “But for support machines or in applications such as setting traffic barriers, Standard or Economy modes likely provide the performance required but with lower fuel consumption.”
LiuGong continues to use suppliers, such as Cummins engines, Kawasaki hydraulics and Nabtesco final drives. “This helps establish LiuGong’s reputation for quality and reliability in markets less familiar with our brand,” says Joy.

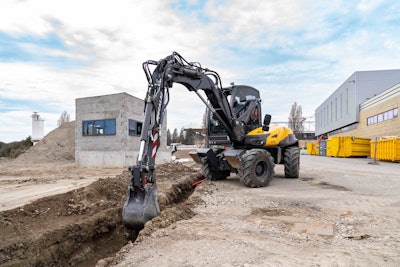

Mecalac 12MTX
The unique design of the Mecalac 12MTX delivers the power of a bigger machine with the maneuverability of a compact model. Maximum reach is 23 feet 4 inches, and maximum dig depth is 13 feet 4 inches. Excavator breakout force is 13,820 lbf. Operating weight is 21,384 pounds. Yet tailswing radius is only 4 feet 5 inches, and turning radius is just 9 feet 1 inch. Maximum travel speed is 19.9 mph.Mecalac
It has a unique three-part boom and stick design and a leverage bar that extends back from the base of the boom to create its higher-class performance, the company says.
That three-part boom and stick plus the articulated frame, four-wheel steer and integrated angle offset boom make the 12MTX ideal for tight spaces. The boom is on the left side of the operator, which at first seems like the “wrong” side. But with the cab on the right, the operator has a much better view for ditch work, roadside mowing, shoulder maintenance and other side work in countries where drivers are on the right, according to Mecalac.
The design also has the operator entering and exiting the cab on the curb side for safety. All this plus a 20 mph roading speed make the 12MTX ideal for municipalities and contractors working in urban environments, the company says.
The versatility of the Mecalac design requires greater operator expertise than for traditional excavators, “but the 12MTX can replace multiple machines and operators, so the investment in machine-specific training pays off with lower overall operating costs,” says Peter Bigwood, general manager, Mecalac North America.
An electric version of the 12MTX is already in use in several European countries and will be available in North America in the first half of 2024. The electric and the diesel models will be identical in design and performance but will have different paint schemes.
Takeuchi

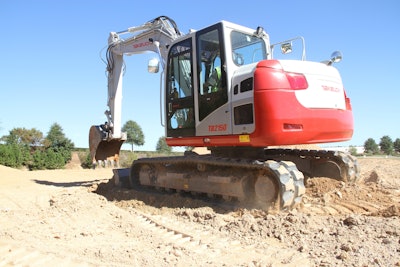

The TB2150 and its reduced-radius counterpart, the TB2150R, are the largest of Takeuchi’s excavators. Operating weights are up to 35,274 pounds. Power is from a Deutz TCD 3.6 L4 Turbo engine rated at 114 horsepower. Maximum reach at ground is 28 feet 1.2 inches and 28 feet 5.2 inches; maximum dig depths are 18 feet and 19 feet 9.4 inches for the TB2150 and TB2150R, respectively.Takeuchi
The cab features an automotive-style interior with high-back air suspension seating with heating and a 7-inch color monitor that also provides the display for the standard 270-degree camera.
Safety features include an overload alarm and boom and arm holding valves, which keep those structures in place if there is a loss of hydraulic pressure. Takeuchi Fleet Management telematics are included for two years.
Pilot controls require low effort and provide good feedback, the company says. There are three work modes: Eco, Standard and High Altitude.
Three standard auxiliary hydraulic circuits ensure compatibility with a wide range of attachments. The high-flow circuit delivers up to 59.2 gallons per minute. The second circuit provides up to 14.5 gpm, and the factory-installed third auxiliary circuit serves as a dedicated coupler circuit “to make attachment changes faster and easier,” says David Caldwell, national product manager, Takeuchi-US.
Volvo EC500

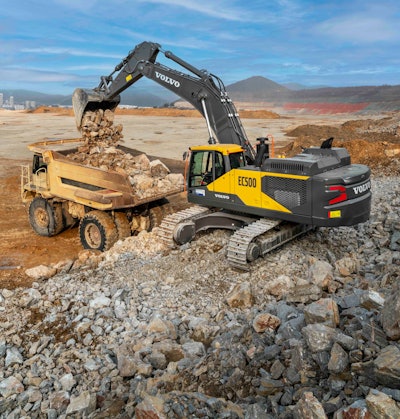

The prototype of the Volvo EC500 was shown at ConExpo 2023, with production slated to begin later this year. Safety features will include Volvo Smart View and Obstacle Detection. The model will also feature faster cycle times, improved fuel efficiency, Volvo Dig Assist, Volvo Lift Assist and Volvo Active Control.Volvo CE
Operator-assist features include Volvo Dig Assist and Lift Assist and Volvo Active Control, an automated grading system that is part of the Dig Assist suite of tools. Electronic joysticks give the operator better control. For example, the hydraulic pumps can be coordinated or operated independently, such as controlling the boom without affecting track speed. Comfort Driver Control allows movement forward, backward and with steering inputs using the joysticks.
Volvo Smart View with Obstacle Detection provides a real-time, 360-degree view to the operator. The camera system in the EC500 is improved over previous models, and a new radar detection system has been added.
Production of the EC500 is expected to begin in the fourth quarter of 2023, according to Sejong Ko, product manager, excavators, Volvo Construction Equipment.
More models
The latest models from Bobcat, Hitachi and Kobelco below:

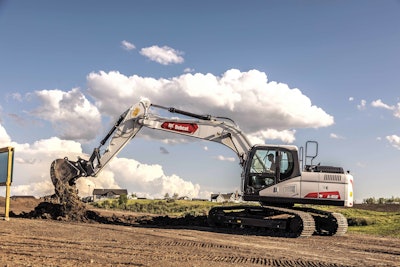

The 131-horsepower E165 from Bobcat has a conventional tailswing, 38,376-pound operating weight with the standard cab, maximum dig depth of 20 feet and maximum reach at ground of 28 feet. Auxiliary pressure is 4,694 psi, and total hydraulic flow is 80.4 gpm. The Bobcat Quick Tach system is optional.Bobcat

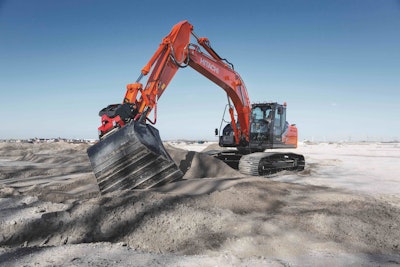

The Hitachi ZX210LC-6 HP has 163.6 horsepower and an operating weight of 50,265 pounds. The “HP” indicates the inclusion of a High Power mode that increases engine speed and pump torque output when needed. Reach at ground level is 32 feet 7 inches, and maximum dig depth is 21 feet 11 inches. ConSite OIL monitors oil quality proactively.Hitachi

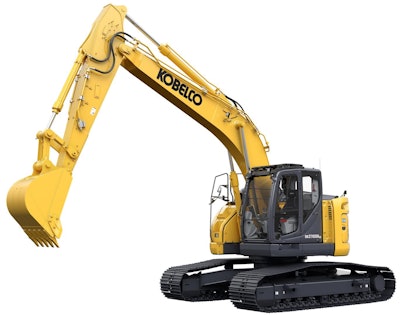

Kobelco’s new SK230 and SK270-7 are short-radius, mid-sized excavators. Heavy lift mode provides extra lifting capacity when needed, and a power boost button delivers extra digging power with no time limit. Dig depths are 21 feet 7 inches and 21 feet 10 inches, and the Yanmar engine in each is rated at 164 horsepower.Kobelco
