Hitachi’s latest mining excavator, the EX1200-7, also designed for construction projects

Me Photo Headshot
Updated May 18, 2019

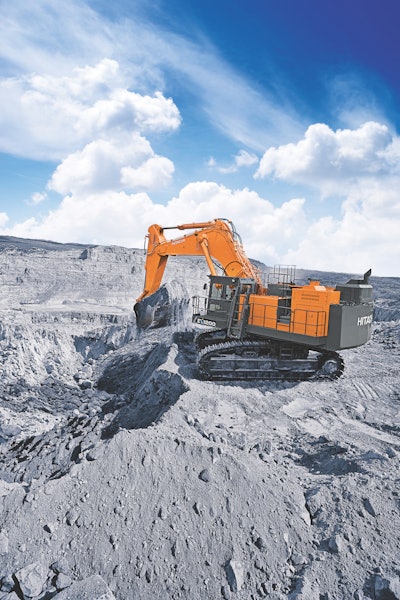

Hitachi mining excavators

Continuing its launch of new mining excavators, Hitachi has unveiled the smallest of its new EX-7 series, which it says can also serve as a crossover machine for the construction industry.

The EX1200-7 achieves a 6-percent improvement in fuel economy over the Dash-6 model and has a 4.5-percent increase in bucket capacity, to 9.2 cubic yards.

Along with mining operations, it can be used for large-scale excavation, Hitachi says. It is also available in backhoe and shovel configurations. In backhoe configuration, it has a max dig reach of 50 feet, 4 inches, and a dig depth of 30 feet, 9 inches. In shovel configuration, the dig reach is 27 feet, 9 inches, and dig depth is 15 feet, 8 inches.

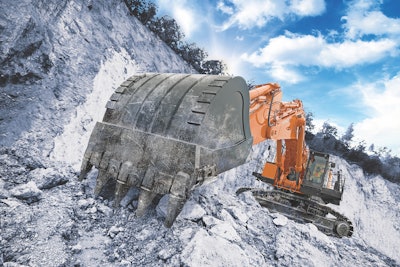

Hitachi mining excavator bucketThe EX1200-7 has an operating weight of 260,000 pounds and is powered by a 760-horsepower Cummins Tier 4 Final engine, which requires no diesel exhaust fluid. The engine contributes to fuel efficiency through “fuel-calibration optimization settings,” the company says. The excavator also features auto-idle, which reduces engine speed when in neutral.

Further aiding fuel economy is an improved hydraulic system equipped with a flow regeneration valve that reduces power demand on the hydraulic system and engine.

Hitachi also made the cab more comfortable, with a weight-adjusted cushioned seat. Operators can customize the seat’s suspension settings. Hitachi also reduced shock and vibration by resting the cab on six-point, support type, fluid-filled elastic mounts.

The cab is pressurized and has climate-control air conditioning. The multifunction display screen has an LED backlight to reduce glare.

Options include a sun visor and roll screen. Customers can also choose Hitachi’s Aerial Angle for 360-degree visibility through cameras positioned around the excavator.

Another option for the EX1200-7 is an auto-lube system for a bulk excavation front attachment that supplies grease to the superstructure as well as the bucket pins. Hitachi redesigned the system with a large grease tank, new grease pump, in-line grease filter and breather with filter, the company says.

Other features on the excavator include three single-sided upper rollers on each side of the track frame to maintain track-shoe clearance and reduce debris buildup; welded boom and arm to evenly distribute stress; and an underslung, low-bend configuration of the front attachment hoses that eliminates the need for clamping.
