Cargill, NCAT, MnROAD launch project to give states ‘real-world data’ on new design principles

Updated Sep 8, 2018

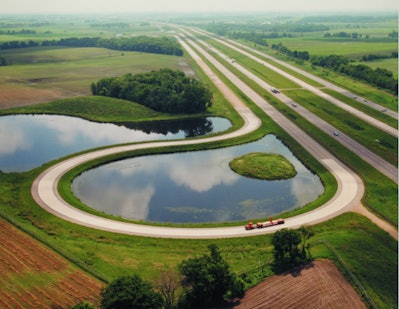

Screen Shot 2018-08-29 at 11.00.38 PM

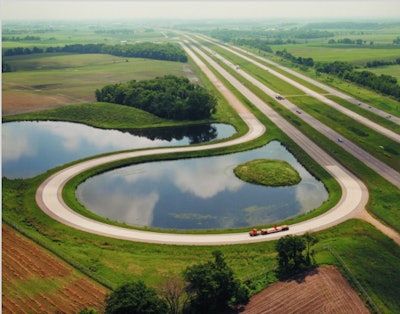

The MnROAD test track was initially constructed between 1991-1993 and is one of the most sophisticated, independently operated pavement test facilities of its type in the world.The MnROAD test track was initially constructed between 1991-1993 and is one of the most sophisticated, independently operated pavement test facilities of its type in the world.


With testing in both northern and southern climates, Cargill is launching a pilot project in September with the Minnesota Department of Transportation (MnDOT) and the National Center for Asphalt Technology (NCAT)  to help contractors build and maintain longer-lasting roads.

Cargill, based in Minnetonka, Minnesota, is partnering with NCAT in Opelika, Alabama, and the MnROAD program in Albertville, Minnesota.

The goal is to determine how to best implement performance-engineered mix design procedures, especially in mixes containing rejuvenators and high levels of reclaimed asphalt pavement (RAP), a press release says.

“We believe it’s time for the asphalt industry to look beyond recipe specifications and focus more on real-world results,” explains Rob Neumann, global category leader for Cargill.

“Investments in research and development have yielded advances in asphalt technology, but industry standards haven’t always kept pace.”

Results from the multi-year NCAT and MnROAD trials will help state agencies gain confidence in performance-based testing, he says.

The research includes comparing blacktop made with Cargill’s Anova rejuvenator and a 45-percent RAP mix to control sections paved with a lower RAP mix, measuring factors such as pavement ride quality, cracking and rutting.

By conducting parallel testing at both the NCAT test track and MnROAD test highway, scientists will be able to monitor results in both northern and southern climate extremes, the press release says.

Mix design began earlier this year, as researchers from both facilities conducted extensive laboratory analysis on pre-construction samples.

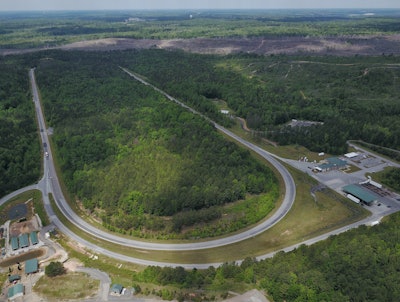

NCAT test trackNCAT test track

In early September, NCAT will pave a 200-foot-long section of its 1.7-mile oval pavement test track with the Anova/high RAP mix. Scientists will evaluate the performance-engineered asphalt mix using an accelerated pavement testing protocol.

It calls for subjecting the section to 10 million equivalent single-axle loads (ESAL) – or about 10 years’ worth of traffic – in only two years. The NCAT test will be conducted in cooperation with the Virginia Department of Transportation.

Partner Insights
Information to advance your business from industry suppliers
8 Crucial Elements of a Tire Safety Program
Presented by Michelin North America
Selecting the Correct Construction Tire Solution
Presented by Michelin North America
How High Fuel Prices hurt Your Business
Presented by EquipmentWatch

The MnROAD project, slated to begin the week of September 17, will cover two approximately 500-foot sections of the test highway. It’s being done in conjunction with the Minnesota Department of Transportation, which owns and operates the testing facility, and CRH/Hard Drives.

Both test locations will conduct ongoing laboratory testing and field monitoring as they work to utilize various performance-engineered design protocols, while also assessing potential practical quality control tests that can be used when constructing pavements using such designs.

“We know many state agencies are looking for advances in asphalt that deliver demonstrable performance benefits,” says Hassan Tabatabaee, global technical manager for road construction, Cargill.

“With this research, we’ll be able to equip state agencies with well-controlled, real-world data on new design principles, especially when used with rejuvenators and high RAP mixes, giving them greater confidence in adopting these research-based quality control tests.”

Growing pressure for more durable, sustainable roads and cost control

The push for new performance-based evaluations comes as the industry faces growing pressure to increase infrastructure sustainability while managing costs and improving durability. High RAP mixes, made possible by advances in rejuvenator technology, offer the potential to address all three of these key concerns.

“For example, Cargill’s Anova rejuvenator is specifically designed to rebalance aged asphalt and enable the recycled material to perform similar to virgin material,” the press release says. “As a result, it’s possible to increase the amount of recycled content in the asphalt mix from today’s typical 20-30 percent RAP mix, up to 50 or even 100 percent RAP, without sacrificing performance or durability.”

Increasing the recycled content by just 20 percent on a typical 5,000-ton resurfacing project saves 48 trucks of virgin aggregate, 1,000 tons of recycled asphalt storage costs, two trucks of liquid asphalt, along with the carbon emissions generated by all those trucks. However, while these rejuvenator/high RAP asphalt mixes deliver on critical sustainability, cost-management and performance criteria, they don’t always meet long-standing, ingredient-based requirements.

“Rather than relying on a specific ‘recipe’ to deliver performance, we need to be evaluating our asphalt mixes based on measurable factors like durability and workability,” Tabatabaee says.

“Developing and adopting research-based quality control practices will enable agencies to speed adoption of innovations like high RAP/rejuvenator mixes, providing them with reliable data to more effectively evaluate new technologies based on actual results.”
