Terex Finlay adds C-1554 tracked mobile cone crusher to lineup

Updated Jan 5, 2016

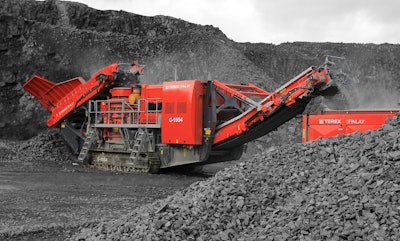

Terex Finlay C-1554

Terex Finlay has added the C-1554 cone crusher to its lineup of tracked mobile cone crushers, positioning it at the top end of its crusher range.

The new machine incorporates the Terex MVP450x crusher system that can accept an all in feed and offers direct variable speed clutch drive and hydraulic closed side setting (CSS) adjustment. Other features include the Rollbercone roller bearing design and the hydropneumatic tramp iron relief system.

The C-1554 has a large hopper/feeder with automated metal dection and a purge system designed to protect the cone and minimize downtime by removing metal contaminants via the purge chute.

“We knew that this new model would give be a game changer in terms of production capacity,” says Alan Witherow, Terex|Finlay Product Development Manager. “The increased productivity, functionality and serviceability of the MVP450x chamber has consistently impressed operators of the machine during testing. The results have been outstanding and ultimately will deliver significant revenue streams and profitability for our customers.”

Main features:

  • Fully Hydraulic CSS Adjustment with electronic monitoring system ensures ease of operation.
  • Fuel efficient direct drive transmission through wet clutch.
  • Hydraulic Tramp Relief System with automatic reset protects the chamber and minimises downtime.
  • Metal detection system on feed belt with ‘auto-stop’ protects the cone from tramp metal and the purge system removes contaminants from the machine.


Transport dimensions

Length: 55 feet 1 inch

Width: 9 feet 10 inches

Height: 12 feet 6 inches

Machine weight: 134, 482 pounds


Working dimensions

Length: 60 feet 8 inches

Width: 13 feet 9 inches

Height: 15 feet 11 inches
