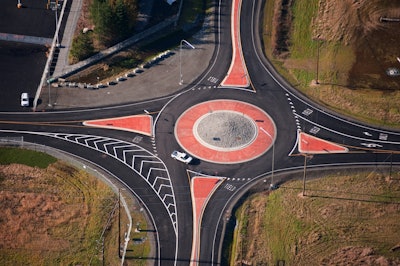

In North America, non-orthagonal roundabouts are becoming a more common site.In North America, non-orthagonal roundabouts are becoming a more common site.

Roundabout design was once a task that drove engineers around the bend. Accounting for so many variables in the early stages of design was difficult to manage. If one changes an approach leg angle, how does that impact design? When you know the capacity requirements, how does that impact the size of the center radius? Before engineers make any decisions, they always ask themselves: when do you choose a roundabout over a traditional intersection?

The Federal Highway Administration (FHWA) notes that “intersections are planned points of conflict in any roadway system. This includes U.S. and state highways, county roads and local streets.  Motorized and non-motorized users are crossing paths as they travel through or turn from one route to another. Therefore, it is not surprising that a major part of addressing road safety challenges involves intersections…. Intersections can also become very congested when traffic volumes are high, creating inefficiencies that result in user delay and frustration.”

A primary goal of intersection design is to limit the severity of potential conflicts among road users. Intersection channelization, a geometric design concept used to reduce conflicts, employs such techniques as raised medians or traffic islands to discourage wrong-way turns or other undesirable movements. Channelization also uses techniques such as pavement markings to delineate desirable vehicle paths.

Assuring the safe and efficient operation of intersections is becoming an increasingly important issue as agencies attempt to maximize vehicle roadway capacity to serve the growing demand for travel. Enhancing safety and reducing crashes are key objectives whenever the design or operational characteristics of an at-grade intersection are modified. Space availability, traffic volumes and patterns, right of way issues and environmental concerns like wetlands or biologically sensitive areas must all be considered.

“The idea is to give motorists the information they need at the time they need it,” Fred Ranck, a safety design engineer at the FHWA Resource Center, told FHWA’s Public Roads (Jan/Feb 2005, Vol. 68 · No. 4). “Intersections are complex meetings of roads, so it is crucial for the driver to get the right information as to what lane to be in and where to go.”

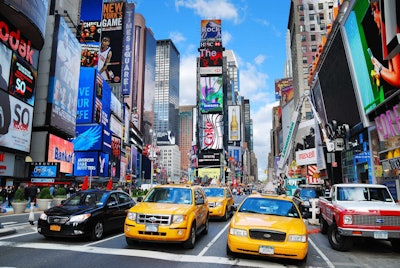

A densely populated area like New York City lends itself to traffic control devices like traditional right-angle intersections.A densely populated area like New York City lends itself to traffic control devices like traditional right-angle intersections.

There are dozens of factors that go into building an intersection and this article examines only a few of them. Road design engineers have to incorporate local conditions and accepted practices into the decisions they make. In recent years, many have used CAD-based computer turning template programs to help them calculate the vehicle swept paths. These programs are often the catalyst that helps engineers with their roundabout and intersection design. One of these programs is AutoTURN.
