In the market for a new compact track loader?
There are plenty of options out there. To help you find the right CTL, we asked manufacturers to outline the most important features of their latest models.
Here is the elevator pitch from 10 major OEMs:
ASV/Yanmar
The ASV VT-100 is available in standard or Forestry versions. Both are powered by Yanmar engines rated at 103.5 horsepower and have vertical-lift arms. Operating weight and ROC are 10,185 pounds and 3,500 pounds for the standard model, and 11,375 pounds and 3,700 pounds for the Forestry version. Ground pressure is 4 psi for both. The standard model has 18-inch tracks, and the Forestry has 20-inch tracks.ASV
“One channel, two brands,” says Buck Storlie, product manager, Yanmar Compact Equipment North America.
He says the two lines share five important features:
- Return to position – brings the boom and bucket back to an operator-preset position, such as when using forks to get pallets off a trailer.
- Work tool positioner – sets the angle of the work tool, as with trenchers.
- Self-leveling – both raise and lower.
- Auto 2-speed – had been pushbutton control and can still be used that way, but the auto feature upshifts based on ground speed and downshifts in response to load.
- Auto ride control – also adjustable to operator preference.
ASV rolled out the vertical-lift, 104-horsepower VT-100 and VT-100 Forestry at ConExpo 2023, bringing the total number of ASV models to 11. As with all ASV models, the VT-100 uses Posi-Track suspension and rubber tracks.
Yanmar had four models at ConExpo: TL100VS, TL80VS, TL75VS and TL65RS. The TL65RS is its only radial-lift model.
Each uses a traditional steel-embedded rubber track-type undercarriage with fully independent front and rear suspension. The range of rated operating capacity is 2,100 to 3,600 pounds at 35% of tipping load.
Availability of the TL100VS will begin in the third quarter of 2023; the others will enter production in October. “Offering these machines is part of Yanmar’s drive to become a full-line compact equipment provider,” says Storlie.
[Watch This: Yanmar vs. ASV CTLs – What’s the Difference?]
Bobcat
At 105 horsepower, the T86 is the most powerful compact track loader Bobcat has ever built. It is available with standard-, high- and super-flow hydraulics, with the latter suitable for high-demand applications such as snowblowers, planers and forestry drum mulchers. The high-capacity radiator and reversible cooling fan ensure sufficient cooling for high-demand tasks, Bobcat says. Operating weight is 12,393 pounds, and ROC is 3,800 pounds ISO.Bobcat
The brush cutter features a high-efficiency, direct-drive AP4 motor that maximizes hydraulic horsepower for cutting tall, thick vegetation and trees up to 10 inches in diameter. It is available in widths of 62, 74 and 86 inches.

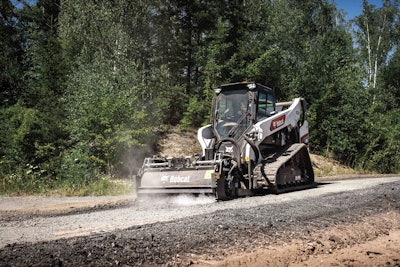

Bobcat added two new cold planers designed for use with its Super Flow hydraulic systems on select CTLs. These planers are available in 24- and 48-inch widths. Bobcat also has a 40-inch planer that can run on High Flow hydraulics.
“The T86 is the most powerful compact track loader we’ve ever built,” says Mike Fitzgerald, marketing manager, Bobcat Company. The T86 – and its skid steer version, the S86 – has three flow configurations available in one machine for running attachments:
- Standard Flow is 23 gallons per minute and 3,500 psi;
- High Flow is 36.6 gpm and 3,500 psi;
- Super Flow is 42 gpm and 4,061 psi.
Bobcat’s T7X is an all-electric compact track loader using electric actuators instead of hydraulics. It is touted for its quiet operation, responsiveness and instantaneous torque.
[Watch This: A Closer Look at the World’s First All-Electric CTL: Bobcat’s T7X]
Case

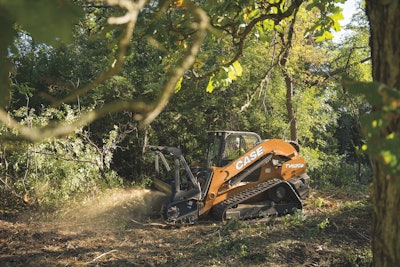

The TV620B is the largest CTL Case has even built, and at 114 horsepower, the most powerful. It comes standard with an 84-inch, 1.25 cubic-yard bucket specifically designed for the TV620B for maximum productivity. Bucket breakout force is 12,084 pounds; lift breakout is 12,907 pounds. The 17.7-inch rubber tracks provide 74 inches of track on the ground for low ground pressure of 6.1 psi. The hydraulics on demand feature allows the operator to select the percentage of auxiliary hydraulic flow to the attachment via the multifunction display.Case Construction Equipment
Standard features include adjustable electrohydraulic controls, high-flow hydraulics, auto ride control, one-way self-leveling, hydraulic coupler, auto-reversing fan and LED lights.
Jeff Jacobsmeyer, product manager, Case Construction Equipment, says the TV620B is “built to simplify heavy work such as cold planing, mulching, heavy material handling and loading high-sided trucks.”
The TV620B features the Case SiteConnect Module for remote connectivity and software updates through the SiteManager app for iOS and Android. The SiteConnect Module also provides connectivity to the Case Uptime Center for collaborative fleet management among Case, the dealer and the owner.
There are six models of Case B Series compact track loaders of 74, 90 or 114 horsepower and operating weights from 8,270 to 16,100 pounds. All feature user-settable electrohydraulics controls whose settings can be stored by operator or attachment, a backup camera, wide-angle rearview mirror, and sloping hood and large side and front windows. Creep speed delivers full power to attachments while limiting ground speed.
[Related: Top-Selling Compact Track Loaders in 2023]
Caterpillar

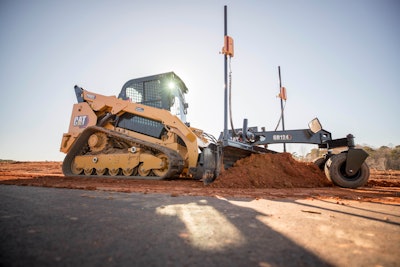

Cat’s 299D3 has rated operating capacities of 3,480 pounds, and 5,240 pounds with the optional counterweight, both at 35% of tipping load. The Cat C3.8 DIT engine is rated at 98 gross horsepower. The cab is 15% larger than the previous model with a wider opening door. The performance-tuned suspension is designed to enhances operator comfort and machine performance. Smart technology is integrated for Cat Smart attachments. Hydraulic performance numbers are 23 gpm, 3,335 psi and 44 hydraulic horsepower for standard flow; 32 gpm, 4,061 psi and 76 hydraulic hp for High Flow XPS.Caterpillar
These Smart Grader Blades have always been compatible with current D3 models. The kit includes a third joystick for operating blade raise and lower, tilt, angle and wing functions.
Caterpillar also now has a 3D grade-control kit that uses existing connections to add automatic blade control to the Cat Smart Dozer Blade for the D3 Series CTLs. The 3D GPS/GNSS grade control allows operators to automatically grade planes, slopes, contours and complex profiles. The system provides vertical height and horizontal positioning guidance or, alternatively, controls the blade relative to a design loaded into the grade-control system.
The Cat Smart Dozer Blade comes with all the required hookups to install 3D grade-control components. Software updates and hardware are available to make existing D3 Series CTL models compatible with grade control.
D3 Series CTLs benefit from Caterpillar’s new Smart Creep function when operating Cat cold planer and wheel saw attachments. The operator sets a maximum creep speed, starts the cut, and Smart Creep monitors the load on the attachment. Smart Creep automatically adjusts travel speed based on the load the tool senses while working. In the event the cutter stalls or jams, an auto-reverse feature quickly changes travel direction to clear the jam.
Caterpillar also offers the BH130 Smart Backhoe for D3 compact track loaders.
JCB

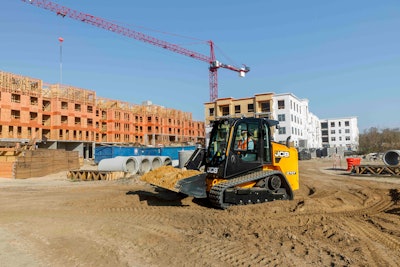

The 74-horsepower JCB 270T comes with an industry standard quick hitch for JCB attachments as well as those from other manufacturers. The JCB Smoothride System (SRS) improves operator comfort and load retention and results in faster loading cycles, the company says. The fully welded chassis is designed to provide added strength and less weight. Hydraulic hoses are routed internally on the Powerboom for protection against damage.JCB
Those myCHOICE joystick controls can be personalized for pattern (ISO or H-pattern), sensitivity, maximum speed forward and reverse, power management, joystick deadband and more.
“There are subtler improvements, as well,” says Rebecca Yates, senior manager for product, JCB. “The door opening is slightly wider, and the grab handle has been repositioned, making entry and exit easier and safer.”
JCB CTLs come with five years of the full LiveLink telematics package.
John Deere

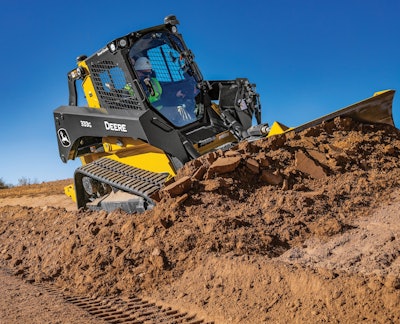

The John Deere 33G compact track loader is powered by a Yanmar engine rated at 100 gross horsepower. It can be outfitted with a range of grade control solutions including 2D Laser Slope Control, SmartGrade Ready with Slope Control, and SmartGrade fully integrated 3D control. The standard two-speed drivetrain provides travel speeds up to 8 mph, while differential steering allows the operator to maintain speed and traction when pushing through a turn.John Deere
SmartGrade integrates 3D plans and GNSS receivers on the machine, eliminating vulnerable masts and cables. This makes the CTLs easier to transport, have less ground pressure and easier to maneuver than many other grading options.
Business advantages from SmartGrade include making smaller contractors more competitive with larger firms with larger fleets and quickly making less-experienced operators more proficient. “Grade control systems work for you by eliminating the need for staking and grade checkers, enhancing both safety and productivity,” says Luke Gribble, solutions marketing manager, John Deere.
Kubota

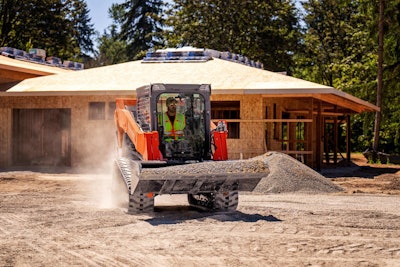

The Kubota SVL75-3 stays under the 75-horsepower limit of Tier 4 Final emissions aftertreatment requirements at 74.3 horsepower, but Kubota has bumped up the torque on the model over the SVT75-2 it replaces. Operating weight is 9,190 pounds with the open cab and 9,420 pounds with the enclosed cab. ROC is 2,490 pounds at 35% of tipping load. The vertical-lift design provides a 122.7-inch height to hinge pin. Standard flow is 19.2 gpm; the high-flow option provides 29.8 gpm.Kubota
The SVL75-3 includes a number of new features and a host of features shared with other Kubota machines.
The SVL75-3 has an entirely new one-piece cab that significantly reduces noise as well as dust, dirt and water intrusion, the company says. There’s a new 7-inch touchscreen with keyless start, display of all machine vitals and the display for the wide-angle (176-degree) backup camera.
Redesigned loader arms yield a hinge pin height almost 3 inches higher than the SVL75-2 while also improving rear visibility. The Advanced Multifunction Valve feature on the SVL65-2 is on the new machine, allowing enhanced, simultaneous machine and attachment operation.
The auto downshift feature on Kubota compact excavators has been incorporated into the SVL75-3. This function automatically shifts from high to low when executing a turn for a smoother ride and maximum torque when exiting the turn. The engine layout found on Kubota skid steers has been adopted on the SVL75-3. “With the radiator on top and the fuel tank moved to the rear, service access is greatly enhanced,” says Jerry Corder, Kubota product manager, construction equipment.

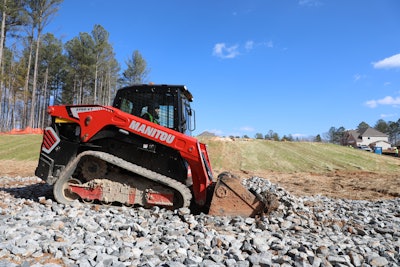

The Manitou 2750 VT is an 10,051-pound CTL with a rated operating capacity of 2,750 pounds (rated at 35 percent tipping load). It features a 72-horsepower engine and is available with both standard (26 gpm @ 3475 psi), and optional high-flow hydraulics (33.3 gpm @ 3,325 psi).Manitou
Manitou
Three all-new Manitou CTLs — the 2100 VT, 2300 VT and the 2750 VT — deliver improvements in safety, comfort, productivity, simplicity and serviceability over previous Manitou CTL models. All models are vertical lift and feature a new lift arm design meant to improve visibility.
The operator experience has also been improved with an update on Manitou’s patented folding door — and the new cab further improves visibility with a new window and roof design. Breakout forces and tank capacities are increased for greater productivity and longer operating times — all with the same focus on lower total cost of ownership (TCO).
New Holland

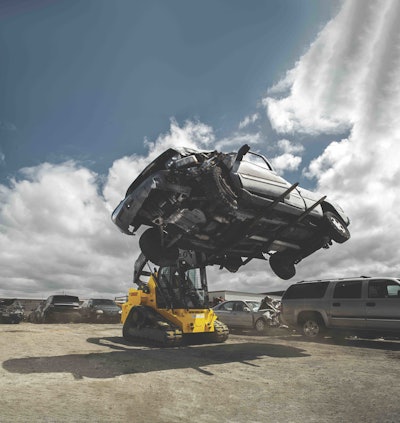

New Holland’s C362 Super Boom has vertical lift and is designed for lift-and-carry operations. The CTL delivers 114 gross horsepower and 41.6 gallons per minute of hydraulic flow. Optional two-speed drive provides a top travel speed of 8.7 mph. ROC is 4,340 pounds at 35% of tipping load. Bucket breakout force is 12,907 pounds, and lift breakout force is 12,084 pounds. Six triple-flange rollers and double flange idlers provide a smoother ride.New Holland
“We continue to improve the functionality of our 8-inch LCD screen,” says Ryan Anderson, product marketing manager, New Holland Construction. “For example, auxiliary flow control is now managed from the display, as are security and operator codes.”
The TerraGlide bogey-style track suspension system is coming over from the agriculture side of New Holland and will be in production in September. TerraGlide will be featured on its large C332, C337, C345 and C362 models.
As for alternative fuels, “there had been a mad dash of OEMs toward electrification,” says Anderson. “Now there’s also interest in methane, propane and hydrogen.”
He says CNH Industrial, parent company of New Holland Construction, has been researching fuels companywide to find the best solution for its customers in the many markets it serves. As for construction, “there is a move to electrify the fleet,” says Anderson.
Anderson says he’s noticed a growth in “mom-n-pop”-style attachment manufacturers. Their products tend to be innovative and of high quality. One example is a rock picker designed to extract rocks from the ground with minimal soil disruption for minimal reworking.
Takeuchi

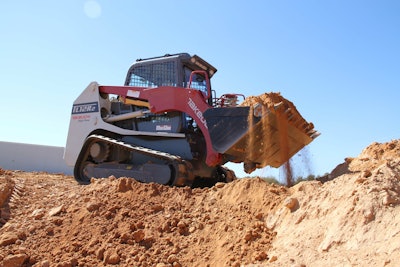

The Takeuchi TL12R2 is powered by a Kubota turbo, intercooled engine rated at 111.3 horsepower. Hydraulic system pressure is 3,481 psi. Standard primary circuit flow is 23.2 gallons per minute, while the high-flow option provides 40.4 gpm. Optional secondary auxiliary circuit flow is 23.2 gpm. Operating weights are 12,300 pounds with the canopy and 12,590 pounds with the cab. ROC is 2,975 pounds at 35% of tipping load. Track width is 17.7 inches, and length on ground is 67.5 inches.Takeuchi
Options include high-flow auxiliary hydraulics of 33.8 gallons per minute at 3,045 psi (19.1 gpm is standard), load-sensing auto shift and creep mode. Work modes are Standard and Eco. Other features include LED lighting and high-torque spin turn.
“We’ve found that owners and operators really are looking for a more comfortable experience when using CTLs,” says Lee Padgett, product manager, Takeuchi-US.
Takeuchi compact track loaders feature automotive-style interiors. Pressurized cabs are optional. Integrated electronic throttle and rocker switches control a variety of machine functions. Low-effort pilot controls and a 5.7-inch color screen with rearview camera monitor also improve the operator experience.
Wacker Neuson

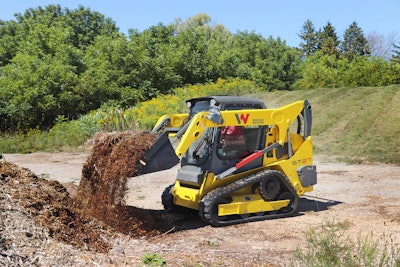

The smallest CTL in the Wacker Neuson lineup, the ST27 can work in tight spaces, and with an operating weight of 7,350 pounds, it is easier to transport than larger machines. ROC is 1,890 pounds at 35% of tipping load. The Kohler KDI 2504 turbocharged engine is rated at 74 horsepower, and the standard two-speed drive provides travel speeds of up to 9.1 mph. Hinge pin height is 120 inches, dump height is 94.3 inches, and dump reach is 36.5 inches.Wacker Neuson
Despite its small size, the ST27 has a 1,890-pound rated operating capacity at 35% of tipping load. “This machine can easily access confined areas, yet with its high rated operating capacity, it can do more than many of its heavier competitors,” says Doug Clark, product manager, compact equipment, Wacker Neuson.
The auto two-speed senses demand from the operator’s joystick and will adjust the speed range to match the application and the operator’s input. Top travel speed is 9.1 mph.
The vertical linkage features low-profile lift arms and a rear H-link positioned out of the operator’s rearview vision. This design and the panoramic glass space provide excellent visibility, the company says.
The ST27 is offered as an EH joystick-only machine. All controls and switches are ergonomically placed.
All Wacker Neuson CTLs feature cabs that fully tip forward with the arms down for service access. The ST27 includes a cyclonic precleaner to extend the service life of air filter elements.
