Making motor graders easier to operate major focus of complex machine’s manufacturers

Updated Jan 8, 2020

roadscience1116_leadPavers and compaction equipment get most of the attention in roadbuilding – they give us the primary beauty of a finished pavement. But, as is often pointed out when we discuss top-notch road construction, the performance of a road is dependent on the quality of the base.

With that in mind, it’s easy to see that motor graders are a bit of the unsung hero of quality pavements – they provide much of the accuracy when it comes to the grade and slope upon which the rest of a roadway is constructed.

While motor graders are viewed as singular in purpose, their functionality is far more diverse, as they are one of the more complex machines to operate. And operation enhancements are where much of the manufacturer’s focus has been of late.


Operator challenges

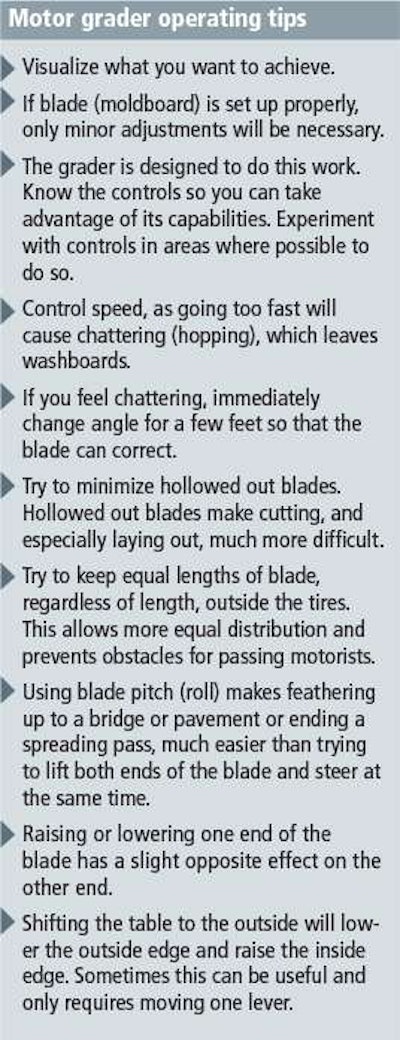

roadscience1116_sidebarThe general construction labor shortage, and the difficulty of finding and keeping experienced operators, is a top problem for contractors. While nothing will replace an experienced operator, manufacturers have been working to advance the capabilities of motor graders to make operation easier, which would benefit less experienced crews.

“It’s well known there is a lot of turnover in motor grader operators,” says Luke Kurth, John Deere product marketing manager for motor graders. That factor often leaves a contractor with a skills drain in his crews.

And even if an operator is adequate, he or she could be missing out on features that can step up their performance. “You get a guy that hops in the seat that can run and cut grade, but maybe he doesn’t understand how to run the extra features that are on the machine,” Kurth adds.

Kurth explains that, in that sense, many of the capabilities of the machine, for which manufacturers have worked diligently to advance, are wasted. Six-wheel drive, he says, is a good example.

“Six wheel drive is going to give you a third more power to the front of the machine,” he says. “It’s going to pull way more of the blade on the tandem machine. You’d be surprised how many operators get in a motor grader and don’t know to throw on that switch.” Teaching operators that simple step, he adds, will give them a major boost in performance.


Partner Insights
Information to advance your business from industry suppliers

Machine control

Machine control, however, will probably help an inexperienced operator most in producing better grading results.

“One of the biggest steps a contractor can take to improve motor grader performance is through machine control,” says John Bauer, brand marketing manager for Case Construction Equipment. “Machine control continues to evolve and offer new ways for contractors to operate more efficiently, and it helps contractors plan for the right materials and the right equipment to do the job.”

Bauer says machine control also offers specific benefits to motor grader operators by cutting down on rework, because it gives them the ability to reach a final grade in fewer passes. This also minimizes maintenance and wear and tear, increases productivity and accuracy, improves planning, simplifys training and reduces the cost and effort associated with re-staking jobsites.

Caterpillar’s Wade Porter, market professional for motor graders, says Cat Grade with Cross Slope is a machine control system specifically aimed at assisting road construction.

“This system is the 2D building block to the more sophisticated 2D and 3D systems that road builders are using every day,” he says. “It is used in conjunction with these systems, to provide reference points and slope readings necessary for the more complex 2D and 3D to work properly.”

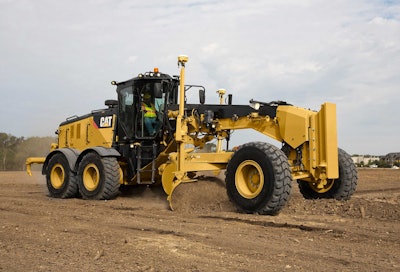

Cat’s new 14M3 motor graderCat’s new 14M3 motor grader
