Komatsu intros WA320-8 loader: a “multi-purpose utility knife on four wheels”

Updated May 26, 2016

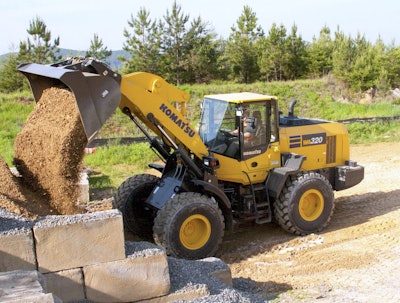

Komatsu WA320-8 dumping

Komatsu has launched the WA320-8 wheel loader, providing updates to the machine which include a more fuel efficient engine and an improved cab.

Powered by a 165-horsepower Tier 4 Final Komatsu SAA6D107E-3 engine paired with a hydrostatic transmission, the machine is equipped with a parallel-lift linkage with auto tilt-in to simulate a Z-bar.

Komatsu says the WA320-8 is designed for use in any application from pallet handling to hard digging.

RELATED >> Komatsu’s new D39PXi-24 semi-auto dozer brings reverse grading mode to iMC lineup

“The easy-to-control hydrostatic transmission makes the WA320-8 ideal for agriculture and residential applications, but its size and attachment-friendly quick coupler makes it an all-around performer for almost any worksite,” said Craig McGinnis, product marketing manager, Komatsu America, in a prepared statement. “It’s a multi-purpose utility knife on four wheels.”

Komatsu says fuel consumption is 3 percent lower than its predecessor in V-cycle loading and 2 percent lower in load and carry applications. Ninety-eight percent of all diesel particulate filter regeneration is performed automatically with no action required from the operator and no interference with operation.

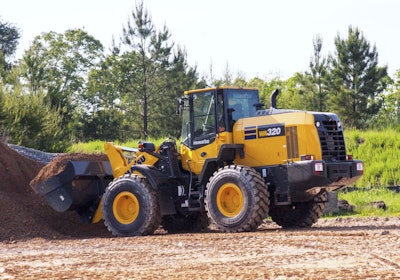

Komatsu WA320-8 dirt in bucket

The hydrostatic transmission features variable traction control and an S-mode which reduces wheel slip in snowy, icy or slippery conditions. The machine also features a creep mode in first gear that is easily controlled via a knob on the right hand console. Creep mode allows the operator to dial in travel speeds between 1 and 8 miles per hour.

Komatsu has also added auto idle shutdown, allowing operators to program a specific idle time after which the engine will shutdown automatically.

RELATED >> Komatsu’s new WA500-8 loader boosts productivity with better bucket, auto-dig

Inside the cab, operators will find a new air-suspension, high-back heated seat along with an auxiliary jack and two 12-volt outlets. A 7-inch display is accompanied by a full-color rear-view monitor.

Komatsu has also made the following exterior design improvements to the machine:

  • Full rear fenders are an available option
  • Swing-out cooling fan with wider fin spacing and reversing fan eases cleaning.
  • Sight gauge at DEF fill cap minimizes overfilling.
  • Gull-wing engine doors give quick access for daily checks and service items.
