2014 Innovations Winner: Komatsu D61i-23 dozer with integrated machine control

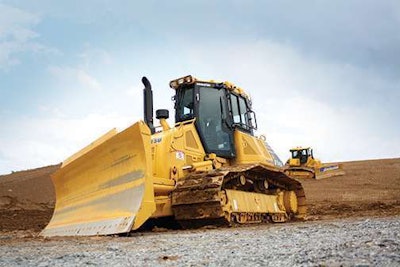

KomatsuWhen it came to bringing the D61i-23 dozer to market, Komatsu engineers decided that they wanted to take the next step forward in the evolution of machine control. There are plenty of plug-and-play aftermarket machine control options available, but Komatsu wanted to seamlessly integrate machine control into the dozer body itself.

And beyond that, they wanted to make the first dozer that runs fully automated from first to last pass. But accomplishing that goal was anything but simple. “To be able to go from rough to finish grade in auto mode – that the machine can maximize blade load all on its own and it can manage track slip on its own in those rough cutting areas so you get that maximum productivity – that was an engineering feat in and of itself,” says Peter Robson, Komatsu director of Intelligent Machine Controls.

Komatsu offers two models of the dozer. The D61EXi-23 is a track-on ground model while the D61PXi-23 is a low ground pressure model. Operating weights range from 39,441 to 41,381 pounds with a net horsepower of 168 at 2,200 rpm. Blade capacity is between 4.5 and 5.1 cubic yards.

To allow the D61i-23’s machine control to pull in all of that data from the blade, Komatsu engineers developed an enhanced Inertial Measuring Unit (IMU+) and paired it with stroke-sensing hydraulic cylinders. The IMU+ does away with the need for blade-mounted sensors like you see on traditional aftermarket solutions and the stroke-sensing cylinders allow the system to know the angle of the blade.

That allowed the team to eliminate any cables between the blade and the cab and move the GNSS antenna from the blade edge back to a small cap atop the roof of the cab. However, that presented another challenge: retaining the optimal accuracy third-party antennas get when mounted to the blade.

“We had to meet the accuracy of the aftermarket system,” Robson says. “When you go to remove the blade components off the machine and bring back that calculation inboard to where you’re reading where the tracks are sitting as you finish grade and you’ve got the machine’s fulcrum point right in the middle, to move that back and retain blade accuracy was a huge challenge.”
