Future Fuels Pt. 4: Hydrogen Propulsion Technologies on the Rise

JCB Hydrogen Backhoe being refueled
JCB Chairman Lord Bamford refueling the company’s hydrogen-combustion powered backhoe loader.
JCB

Editor’s Note: This is Part Four of an eight-part series on the evolution of construction equipment and the diesel fuel alternatives manufacturers are introducing, including hybrid machines, electric and battery-powered equipment, and hydrogen combustion and hydrogen fuel cell technology. You can read Part One in the series by clicking herePart Two. Part Three.

While there are many technologies available or under development today that can reduce the carbon dioxide output of heavy equipment, nothing comes closer to net zero than hydrogen. By all accounts, it will be the fuel of the future, even if it isn’t widely adopted until close to mid-century.

Understand, however, that there are two different hydrogen propulsion technologies emerging with two very different timelines:

  1. Hydrogen combustion engines run compressed hydrogen gas through fuel lines into the cylinders of an internal combustion engine (ICE). Spark plugs ignite the gas in the cylinders and power a conventional drivetrain.
  2. Hydrogen fuel cell technology consists of two electrodes—one negative, one positive - sandwiched around an electrolyte. Hydrogen is fed to the negative terminal, and air is fed to the positive creating a chemical reaction that delivers a continuous flow of electricity to batteries that drive electric motors.

With either technology, once you have the hydrogen in your machine or vehicle, the resulting “emissions” are negligible, with no carbon dioxide and only a small amount of water vapor.

The many colors of hydrogen

The kicker is the fact that making hydrogen gas is not a net-zero proposition. The most common method of making hydrogen today is natural gas reforming, which uses methane as the base stock. This is the least expensive method for making hydrogen and comprises 96% of the hydrogen market, most of which is consumed by the agriculture and semiconductor industries.

The industry uses color codes to indicate the environmental impact of hydrogen production. Black, gray or brown hydrogen comes from fossil fuels. Blue hydrogen is also derived from fossil fuels but uses carbon capture technology to reduce CO2 emissions.

Green hydrogen is the holy grail to which environmentalists aspire. It uses electrolysis to separate the hydrogen from oxygen in water. This process shows promise, especially when solar or wind power can produce electricity cheaply and without fossil fuel. Nuclear power could also provide the electricity to create hydrogen but nuclear faces headwinds from opponents in this country and Europe.

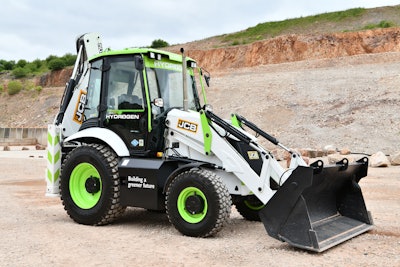

JCB Hydrogen BackhoeJCB's hydrogen-powered backhoe was revealed to the public in May 2021 and uses spark ignited, hydrogen combustion technology.JCBCombustion vs fuel cell

JCB has long been bullish on the merits of hydrogen-powered equipment, exploring both hydrogen combustion and hydrogen fuel cells. “We studied a host of different fuels, and in all of it, we kept coming back to hydrogen,” says Tim Burnhope, chief innovation and growth officer.

Partner Insights
Information to advance your business from industry suppliers
How High Fuel Prices hurt Your Business
Presented by EquipmentWatch
Selecting the Correct Construction Tire Solution
Presented by Michelin North America
8 Crucial Elements of a Tire Safety Program
Presented by Michelin North America

One reason is that battery-powered machines (of which JCB has seven) were practical in urban areas where operations are never too far from charging infrastructure. But when it came to quarries and sites remote from the electrical grid, contractors were going to need something else.

The company’s first proof of concept experiment used hydrogen fuel cells to power the JCB 220X excavator. This machine debuted in May 2020 and spent 12 months undergoing testing and evaluation at a quarry site. That led to some interesting conclusions.

“Fuel cells are a bit lazy when it comes to transient response,” says Burnhope. They need sophisticated electronics to manage the power supply between the fuel cell and the battery. They also require de-ionized water and high-capacity cooling, and can be sensitive to dust and vibration,” he adds. The end result, in JCB’s opinion, was that fuel cells were too complicated and expensive for the off-highway market for now.

Nonetheless, almost all OEMs continue to experiment and explore hydrogen fuel cell technology, particularly for big equipment and trucks where battery electric machines may lack capacity. Recently Sany debuted prototypes for a dump and mixer truck. Volvo CE is testing an articulated truck. Cummins is evaluating numerous fuel cell installations in on- and off-highway installations. And Hyundai Construction Equipment debuted a fuel-cell-powered HW155H concept excavator at Bauma.

Perhaps the first commercially available hydrogen fuel cell piece of equipment, Generac’s EODev GEH2 generators, will be distributed by United Rentals beginning in Q2 2022.  The static nature of generators mitigates many of the vibration, contamination and other issues that challenge off-road equipment applications.

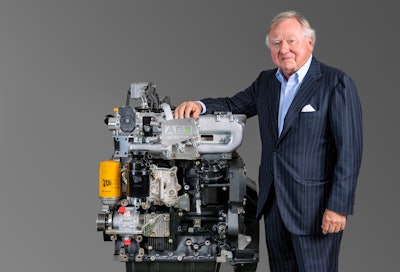

Lord Bamford with JCB's hydrogen combustion engineJCB chairman Lord Bamford with the company’s hydrogen combustion engine.JCBHydrogen combustion steps up

While much of the hydrogen fuel cell technology is still in testing, hydrogen combustion engines offer nearly identical environmental benefits and are much closer to commercial viability and less expensive to produce. Hydrogen combustion engines retain the basic architecture of a diesel engine—cylinders, camshaft, block and crankshaft—with a top end that uses spark ignition and fuel injection.

At JCB, engineers evaluated decades' worth of hydrogen combustion prototypes and then built their own purpose-built hydrogen combustion engine from the ground up. The resulting prototype was fitted to a backhoe and telehandler and debuted in May 2021.

“We came up with a brand-new combustion process that works at much lower pressures and temperatures, and gives incredibly clean combustion,” says Burnhope. “We’ve got fantastic turbochargers today that give us a huge amount of air. Hydrogen already has a lot of energy, and we can maximize the air while minimizing the hydrogen in the cylinders.”

“Everything below the cylinder head apart from the pistons is the same as our diesel engines, says Burnhope. “So, we can use 70 percent of our existing parts and 70 percent of the existing supply chain.”

Bridge to the future

Jeremy Carson, off-highway director for Cummins, sees hydrogen combustion as a practical transition for diesel. Cummins, he says, is pursuing a spark-ignited “fuel agnostic” platform that will include hydrogen, natural gas, methane and other biofuels.

“We think it’s a good medium-term solution where you can have some scale with diesel,” says Carson. “It’s going to let OEMs ease into this and build out hydrogen infrastructure for the long term.”

“I’m optimistic that hydrogen combustion engines will start to get some traction toward the end of the decade,” says Carson. “The capex expense on the front end, for a hydrogen combustion engine is definitely going to be less than a full-on hydrogen fuel cell, which will help make it a near-term solution.”

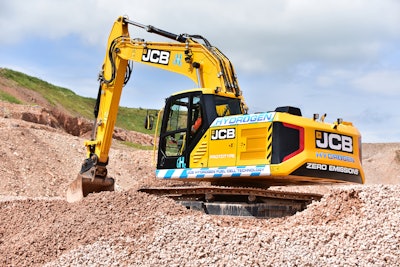

JCB JT20X excavatorThe JCB 220X excavator debuted in 2020 and is powered by hydrogen fuel cells. Vibration, cooling and contamination issues will need to be addressed before this technology is ready for off-road applications, says the company.JCBChallenges with hydrogen engines

The big challenge both types of hydrogen engines face is the slow development of hydrogen fueling infrastructure. Outside of industrial channels, the fuel is not widely available.

OEMs will also have to figure out where to put hydrogen storage tanks on their machines, as it is bulkier than liquid fuel. Wheel loaders, for example, don’t have much room to spare, but excavators and machines with large counterweights should have enough, says Burnhope. For stationary engines such as generators, gantry cranes and light towers, onboard fuel storage won’t be a problem.

Easy refueling

Burnhope points out that refueling with hydrogen is much quicker than recharging battery-powered models. Hydrogen just takes minutes to refuel while battery-powered machines can take two to eight hours to recharge.

The worst case scenario is that hydrogen combustion equipment may need to be refueled over the lunch hour or at the end of a shift, Burnhope says. And hydrogen gas can be transported to the jobsite, just like diesel fuel.

Cool, clean and very green

What excites engineers like Burnhope is just how pollution free hydrogen is compared to fossil fuels—and not just at the exhaust stack.

Proof of just how clean hydrogen combustion engines are, says Burnhope, can be seen on the dipstick. “Pull it after 100 hours and the engine oil is bright and clean. When you strip these engines down, they’re as clean as the day you put them together,” he says.
