JLG Completes SkyTrak Telehandler Overhaul with 3 Updated Models

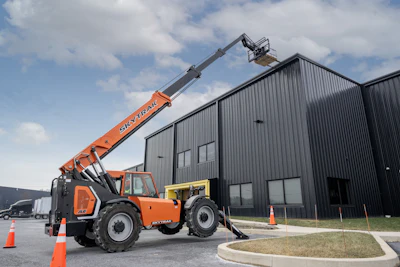

JLG Industries has completed the full remodel of its SkyTrak telehandlers with the launch of the new 10042, 10054 and 12054.

Offering up to 12,000 pounds of lift capacity and up to 53 feet 2 inches of lift height, they deliver updated technology and serviceability for heavy construction, infrastructure, industrial and material handling applications. JLG says the telehandlers are ideal for lifting heavy pallets, staging materials, supporting steel erection and handling large equipment.

All three models are powered by a 110-horsepower, Tier 4 Final Cummins F3.8 diesel engine and equipped with a four-speed Powershift transmission featuring new SmartShift, which automatically shifts between third and fourth gears for smooth, efficient operation, the company says.

A new advanced control system with updated diagnostics and expanded functionality allows buyers to spec the machine with two optional features:

• Load Stability Indication (LSI): Helps operators by sensing forward load capacity and displaying visual indicators.
• Seatbelt Engagement and Operator Presence (SEAOP): Provides visual and audible alarms and limits certain machine functions when operator engagement requirements are not met.

The updated cab has a larger LCD display and improved single-page load charts.

A new electric-over-hydraulic joystick with integrated auxiliary hydraulic functions and attachment tilt controls enables greater multifunction capability. Auxiliary hydraulic connections have also been relocated to the side of the boom head for faster attachment changes. Flat glass windows simplify glass replacement, should damage occur.

New from Equipment World

Get fast, free estimate values for your used construction equipment

Access one of the industry's largest resale and auction databases with the new Construction Equipment Valuation Calculator

Get an estimate

Powered by

JLG’s standard ClearSky Smart Fleet two-way communications platform features updated connectivity, troubleshooting and fleet management.

Additional optional technology packages include:

• Multiview reverse camera system with left, right and rear views displayed on a single monitor
• Reverse sensing system with audible in-cab alerts
• White noise backup alarm for directional sound notification

SkyTrak 10042 Telehandler Specs

• Rated Capacity: 10,000 pounds
• Max. Lift Height: 42’ 1”
• Max. Reach: 26’ 7”

SkyTrak 10054 Telehandler Specs

• Rated Capacity: 10,000 pounds
• Max. Lift Height: 53’ 2”
• Max. Reach: 38’ 9”

SkyTrak 12054 Telehandler Specs

• Rated Capacity: 12,000 pounds
• Max. Lift Height: 53’ 2”
• Max. Reach: 38’ 10”
