TyBot, the Concrete Rebar Tying Robot: 2 Million Job Ties and Counting

Marcia Doyle Headshot
Updated Jun 4, 2021
construction work on road
TyBot tying at night on Freedom Road over the Pennsylvania Turnpike in Butler County, Pennsylvania.
Advanced Construction Robotics

Making its U.S. debut at the 2020 World of Concrete show, TyBot has had a busy year working on bridge projects throughout the U.S. The concrete rebar tying robot just tied its 2 millionth job tie.

“We’re not a prototype or a science experiment or a university study,” says Jeremy Searock, co-founder and president of TyBot's maker, Advanced Construction Robots. “TyBot is a product that’s doing real work.”

What is it?

But before we go into what TyBot does, let’s first look at what it is. TyBot is an autonomous robotic rebar-tying system, the first in ACR’s envisioned line of autonomous robotic equipment.

Once TyBot is set up on a jobsite, a technician gives it a few inputs through a small remote-control panel, and then it goes to work, completely autonomously, using robotics and artificial intelligence.

Using computer vision, TyBot independently navigates bridge decks, identifies and ties rebar intersections, then moves on to the next intersection, working at a pace of about 1,000 ties per hour. ACR compares that to the average 150-250 ties per hour one worker can produce – a hard, backbreaking task.

TyBot is not remote controlled, although a bellybox console is used to communicate with and monitor TyBot. There is no pre-programming and no running off design files. TyBot sees each rebar mat intersection to be tied, according to Searock, and starts tying. “Off it goes,” he says.

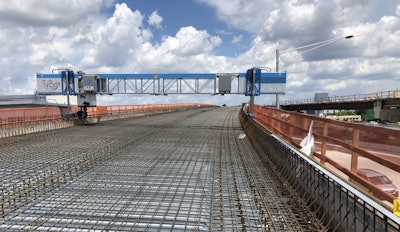

On the jobconstruction work on roadNo breaks needed: TyBot tying in the heat and humidity of Orange County, Florida.Advanced Construction Robotics

For TyBot to make economic sense on a bridge or road project, there needs to be scale. “Once you get to 20,000 square feet, it’s a pretty straightforward savings for the contractor,” Searock says.

TyBot typically fits on a 40-foot trailer and can be pulled by an F250-sized pickup. On larger jobs that require more cross sections, additional transportation will be needed.

Once at the jobsite, the TyBot is placed by a lift or crane. Searock compares the setup to that of a concrete finishing machine, “only it’s easier,” he says. No tools are required, and depending on the scope – the rail distance can be expanded continuously from 9 to 100 feet – it can be done in one to four hours. It uses already-assembled onsite screed rails as its track.

“Once it’s lifted in place, there are only eight pins and an electrical connector to add in the middle gantry sections to expand it,” Searock says. TyBot is powered by a gas generator, and the wire comes in 15-pound spools. While in operation, ACR says, TyBot does not impede the movement of other construction equipment.

Partner Insights
Information to advance your business from industry suppliers
How High Fuel Prices hurt Your Business
Presented by EquipmentWatch
Selecting the Correct Construction Tire Solution
Presented by Michelin North America
8 Crucial Elements of a Tire Safety Program
Presented by Michelin North America

Human interaction isn’t going away, however. Here’s how ACR describes the installation process in a video:

Before TyBot begins operating, crews place the rebar and tie enough of the intersections to secure it, about 10% of the total job. As crews continue to place and frame the mat, TyBot works behind them tying in the remaining intersections.

As crews finish with the bottom rebar mat, they can place and frame the top rebar mat, following TyBot as it ties the bottom mat. At the end of bottom mat's tying, TyBot is repositioned to start tying the top rebar mat behind the workers.

ACR says TyBot can work on many structures, including bridges, highways and precast systems. It can handle up to 12% grade and 12% super elevation and is compatible with up to #8X#9 rebar. It also can work at night and in inclement weather.

TyBot works best with straight patterns; more custom designs will still require humans, Searock says.

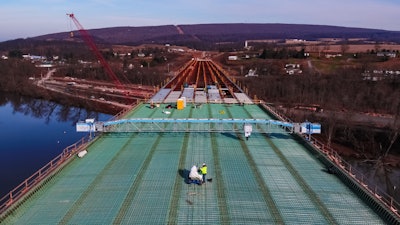

Lease factorsConstruction work on bridgeTyBot tying on Unit 2 of the Central Susquehanna Valley Transportation Project,Advanced Construction Robotics
