New composite girder system can build a bridge in 72 hours to last 100 years

Updated Aug 11, 2018

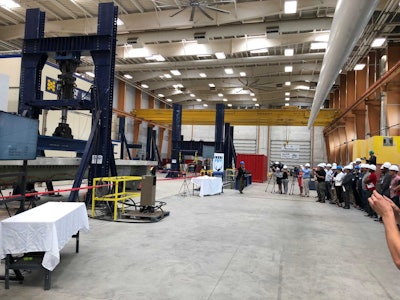

Composite girder bridge system is strength-tested in UMaine lab. Photo: UMaine.Composite girder bridge system is strength-tested in UMaine lab. Photo: UMaine.

The University of Maine (UMaine) reports that engineers at its Advanced Structures and Composites Center have developed a new composite girder bridge system that can be deployed quickly. The engineers, Maine Department of Transportation officials, business leaders, investors, researchers, staff, and members from Advanced Infrastructure Technologies (AIT), UMaine’s licensee for the original “Bridge-in-a-Backpack,” conducted a strength test in the laboratory using computer-controlled hydraulic equipment to simulate the effect of heavy highway truck loads in order to prove the design modeling predictions and demonstrate the bridge system.

“As the commercialization partner of the Center’s composite arch bridge system, today’s event allowed us to showcase this new technology with potential investors, as well as DOT partners and executives,” said Brit Svoboda, chairman and CEO of AIT Bridges, according to the news article. “We’re ready to go to market.”

The patent-pending bridge system, which uses composite material girders and precast concrete deck panels, reduces the time and logistics required to build a bridge, making it possible to build a bridge in 72 hours. The new bridge girders are also designed to last 100 years, and the precast concrete deck is designed for easy removal and replacement. The bridge is designed for unsupported spans of up to 80 feet.

“Today’s bridge test exceeded our expectations,” said Dr. Habib Dagher, executive director of the UMaine Advanced Structures and Composites Center, in a a university press release. “The composite bridge withstood forces equivalent to more than 80 cars stacked on top of each other, and more than 5 times the HL 93 design load specified by AASHTO. The composite bridge girder exceeded twice the collapse strength of steel and concrete girders. Today was truly a remarkable engineering achievement made possible by research sponsored by the U.S. Army Corps of Engineers and the dedication and hard work of University researchers.
