2017 Bridge Inventory: States get proactive on funding, expect to lower rate of poor bridges

Marcia Doyle Headshot
Updated Nov 10, 2017

Bridge Inventory1117 LeadStates continue to take the lead on road and bridge funding, with eight states to date in 2017 either raising gas taxes or approving other funding. And once you factor in states that passed road funding during the past four years – 27 plus the District of Columbia, according to the National Conference of State Legislatures – then state trailblazing becomes even more clear.

In California, for example, Senate Bill 1 created the Road Maintenance and Rehabilitation Program, which included a 12-cents-per-gallon increase in the state’s gas tax starting in November. The measure will fund “more than $52 billion in the next decade specifically for the maintenance and repair of the state highway system,” says Rita Gerlach, bridge maintenance information manager for Caltrans. California completed 12 state highway bridges and started another 36 last fiscal year, while another five bridges are being planned.

Bridge Inventory1117 1The Idaho legislature passed a $320 million-plus road bill authorizing $300 million in bonds that allow the state to borrow against its future federal highway allocations to fund big projects now. In addition, the bill diverted 1 percent of state sales tax revenues – expected to be $15 million in 2018 – to roadwork.

In August, Oregon’s governor signed a bill authorizing $5.3 billion in transportation funding to be spread over 10 years, while incrementally increasing the state’s gas tax by 10 cents per gallon over seven years.

And in Tennessee, legislators increased the gas tax by 6 cents per gallon over the next three years. The initial 4-cent increase started in July. The legislation will provide transportation funds in a three-pronged approach: $250 million to the Tennessee Department of Transportation, $70 million to counties and $35 million to cities. “This dedicates funding to a specific list of priority projects on state and local roads,” says Ted Kniazewycz with the state’s DOT.

Other states increasing funding this year include Indiana, Montana, West Virginia and South Carolina.



Partner Insights
Information to advance your business from industry suppliers

Transitioning from SD to Poor

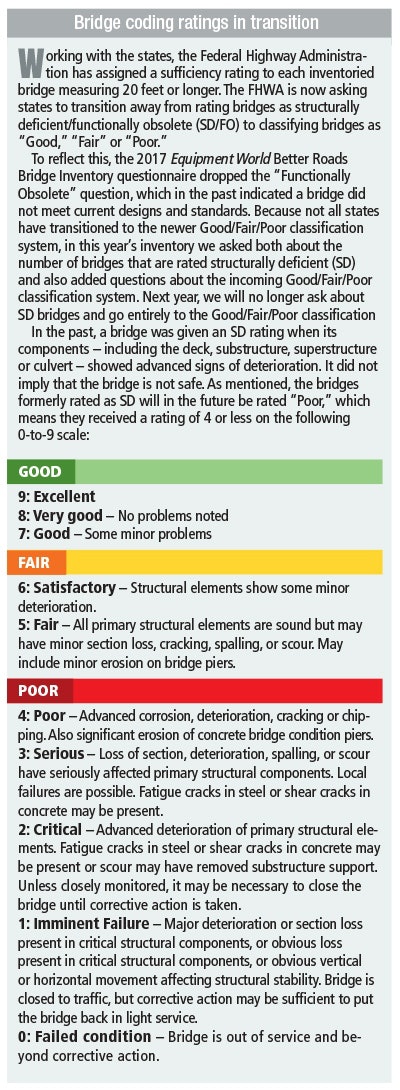

The Federal Highway Administration is transitioning from defining bridges of concern as “Structurally Deficient” (SD) to “Poor” under its newer Good/Fair/Poor condition rating system. Also being transitioned out are the terms “functionally obsolete” and “sufficiency rating.” The definition of the term “fracture critical” (now classified as “a steel member in tension, or with a tension element, whose failure would probably cause a portion of or the entire bridge to collapse”) will be updated.

The goal is to eliminate “sometimes confusing, unclear, misleading or alarming terms from the language of bridge engineers,” said Joey Hartmann, FHWA director of the Office of Bridges and Structures, in a presentation to the American Association of State Highway and Transportation Officials in June. While this language served engineers well, FHWA now recognizes they do “not translate well in a transparent world,” Hartman said.

In addition, on May 20th, FHWA published the final rule establishing performance measures based on deck

Bridge Inventory1117 2

area for state DOTs to use in managing pavement and bridge performance on the National Highway System. This will require state DOTs to establish two- and four-year targets by May 20, 2018, and report targets by Oct. 1, 2018, in a baseline performance period report.

Since the terminology is still in transition, and many states still use SD as a term, in our survey we asked for both the number of SD bridges and the number of Good/Fair/Poor condition bridges. In determining the ranking of states, however, starting on page 30, we opted for the incoming Good/Fair/Poor rating.



Lowering the number of SD/Poor bridges

More than half of the states and areas responding to this year’s survey say they expect in the coming year to lower their rate of SD bridges – which again, would be termed “Poor” under the new classification system. The District of Columbia is one of them. “Since 2010, we have reduced the number of SD bridges from 23 to five,” says

 Terry Owens, District DOT public information officer. “In the next two years, we project all of the bridges currently rated SD will be under construction and design. And the American Society of Civil Engineers recently gave the District a B-minus rating for bridges in its infrastructure report card.”

Oklahoma expects to reduce on-system SD bridges by 80 this year, reports Walt Peters, assistant bridge engineer-maintenance, Oklahoma DOT. “We are on track to have less than 1 percent of our on-system bridges rated SD by 2020,” he says.

Paul Kulseth, bridge management engineer

Bridge Inventory1117 3for the Kansas DOT, sees a steady course as the best path to reducing “Poor” bridges in the state. “We hope to achieve this by keeping our Fair bridges in Fair condition or improving them to Good condition.” One deterrent to this plan: having to respond to traffic-induced needs – such as completing a major city bypass – which may include replacing bridges that are not rated Poor.

Kentucky is concentrating on keeping bridges from becoming SD, says David Steel with the Kentucky Transportation Cabinet. If instead the state has to use its maintenance budget to repair bridges damaged by oversized loads, “it reduces the number of bridges we can keep from becoming SD,” he says.

Nebraska expects to decrease its number of SD bridges through increased allocation to the County Bridge Match program that targets small SD bridges on local systems, says Kent Miller, assistant bridge engineer, Nebraska DOT. “However, the rate of deterioration appears to slightly exceed the rate of improving conditions overall,” he says.

Bridge Inventory1117 4Several of New Mexico’s SD bridges are scheduled for either replacement or repair, according to Jeff Vigil with the state’s DOT. “In addition, the DOT has also allocated specific funding for minor bridge rehabilitations and preservation projects,” Vigil says.

“Addressing the 67 SD state-owned bridges is a top priority,” says Maurice Agostino, deputy director of the Office of Structures with the Maryland DOT.



Impact of Atlanta’s I-85 collapse

In March, the I-85 bridges over Piedmont Avenue in Atlanta were destroyed by fire, becoming the biggest bridge story of 2017 to date. It made us curious. How were DOTs responding to the lesson learned about storing combustible materials under bridges, one of the contributing factors to the I-85 fire?

Almost half of the 43 entities responding to our survey said they had reviewed and/or changed how they store materials under bridges. Caltrans, for example, identified the need for a policy specific to material storage under bridges, which it expects to adopt by year’s end, says Gerlach. In Delaware, the DOT reviewed its bridge inventory to identify bridges with storage materials and worked with various entities that had stored materials to have the materials removed, says Jason Arndt, Delaware DOT. It’s also adopting an official policy.

In Kansas, the DOT updated its policy to include photos of stored materials during routine bridge inspections. “Regional DOT offices now review existing legal agreements or permits,” says Kulseth.

Bridge Inventory1117 5Other states also made changes. Kentucky bridge inspectors now note anything stored under a bridge and call out anything suspicious, Steele says. Pennsylvania revised two policy letters related to combustible material storage. “We also added an inspection input item to Bridge Management Systems to document the presence of these materials,” Winslow says.

Some states – including Maryland, Utah and Nevada – had policies in place that prohibit storing materials under a bridge.



Accelerated Bridge Construction

The I-85 bridge collapse also offered a showcase of Accelerated Bridge Construction (ABC) techniques, since the critical bridge was replaced and opened under emergency measures in 47 days. This prompted us to ask how many other states were using ABC processes and what techniques they were using.

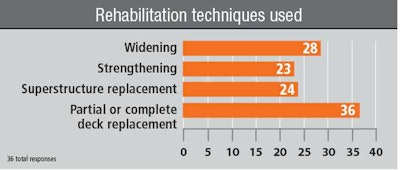

Bridge Inventory1117 6Twenty-two of the responding states said they were using ABC techniques. Their processes vary, including heavy-lift and float-in, precast column cap and girders, longitudinal launching of bridge girders, ultra-high performance concrete connections and post-tensioned precast decked spread box beams.

And although the I-85 bridge replacement made headlines, Georgia DOT State Bridge Engineer Bill DuVall points to another ABC project: replacing the State Road 299 bridge over I-24 in Dade County. “The contractor, Wright Brothers, built the superstructure adjacent to the existing bridge,” he says. “During the weekend closure, they removed the existing bridge and placed the new bridge using self-propelled modular transporters. The total road closure lasted 81 hours.”

The Louisiana Department of Transportation and Development also used self-propelled modular transporters to remove a damaged portion of a curved steel-plate, two-girder system on a U.S. 61 ramp over I-10, reports Bill Vaught, assistant bridge design engineer administrator.

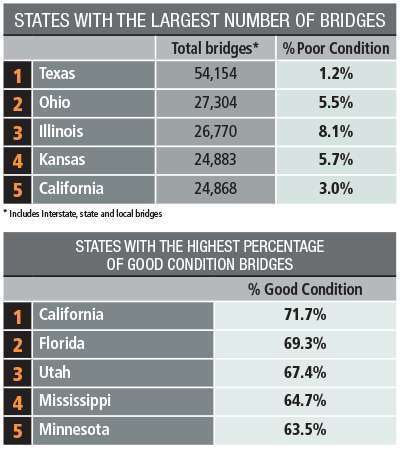

Poor condition bridges: top and bottom states

As mentioned, Equipment World opted to use the incoming Good/Fair/Poor condition rating in ranking states this year.

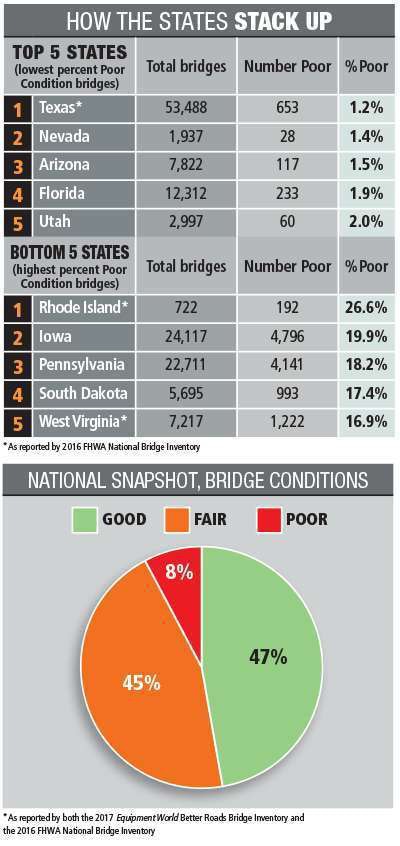

The five states with the lowest percentage of all bridges rated “Poor.”

1.Texas, 1.2 percent

In Texas, 1.2 percent of its 53,488 bridges are rated “Poor,” according to the 2016 FHWA National Bridge Inventory. The state has a total of 463,549,151 square feet of interstate/state bridge deck area, of which 0.97 percent is rated SD. In addition, there’s another 81,923,863 square feet of local bridge deck area, of which 1.2 percent is rated SD.

2.Nevada, 1.4 percent

According to Troy Martin and Lisa Green with the Nevada DOT, 28 of the state’s 1,937 total bridges are rated SD. The state has 13,723,241 square feet of interstate/state bridge deck area, 0.63 of which is rated SD. There’s another 5,278,297 square feet of local system bridges, 1.2 percent of which are SD. The department anticipates completing 20 new bridges in the next fiscal year, starting another 10 bridges, and planning 10 more. When asked what one thing would help improve bridges in the state, they said, “Allocate more bridge maintenance staff and equipment to do more preventive maintenance.”

3. Arizona, 1.5 percent

Arizona has 4,809 interstate/state bridges, of which 66 are rated SD. Using the Good/Fair/Poor rating system, 63 percent of the interstate/state bridges in the state are rated Good, while 1.5 percent are rated Poor.

4. Florida, 1.9 percent

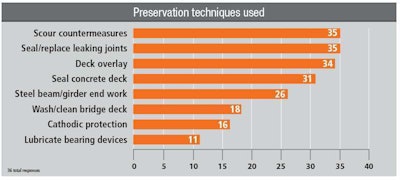

With a total of 11,976 bridges in both interstate/state and local systems, Florida DOT says 244 of them are considered SD. The state is using several preventive maintenance techniques to prolong bridge life, says John Clark, state bridge maintenance and repair engineer, including installing deck overlays, sealing concrete decks and installing cathodic protection systems.

5.Utah, 2.0 percent

“At this time, all but two state-owned SD structures are programmed for rehabilitation or replacement, including several that are under construction now or will be in the current year,” says Rebecca Nix, bridge management engineer with the Utah DOT. The state’s greatest challenge is staying ahead of its aging bridge inventory, Nix says. “More focus needs to be placed on extending the life of Fair condition bridges to prevent a rapid increase in Poor condition bridges,” she reports. Asked what one thing would help improve bridges in the state, she mentioned a better understanding of the use of non-destructive testing for an accurate evaluation of bridge condition. This would help the Utah DOT to “better scope needed repairs and prioritize their treatments,” she says.



The five states with the highest percentage of all bridges rated “Poor.”

Bridge Inventory1117 71. Rhode Island, 26.6 percent.

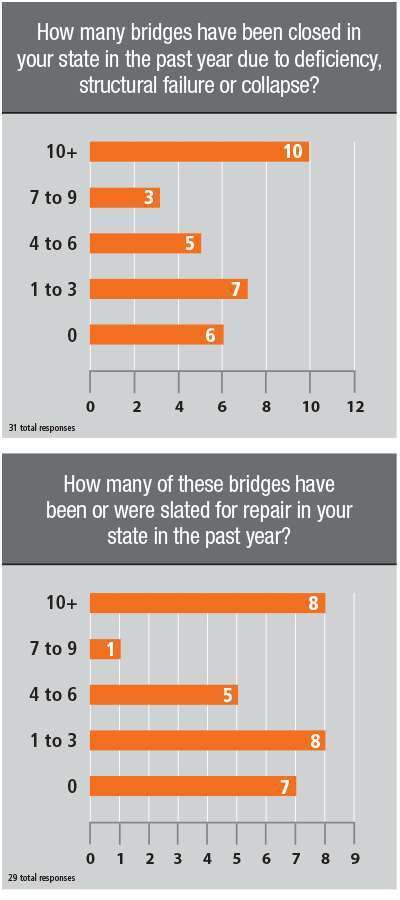

The Rhode Island DOT reports it has 6,680,195 square feet of interstate/state bridge deck, and 24.02 percent of this bridge deck area was rated SD. It closed and slated for repair one to three bridges because of deficiency, structural failure or collapse. The state expects to complete four new bridges in the next fiscal year, start 21 and plan another 27, according to Craig Nazareth with the department. Rehabilitation techniques used include superstructure replacement and strengthening.

2. Iowa, 19.8 percent

Most of the problems with Iowa bridges rest in local systems, where 25 percent of the bridges are considered SD. If just considering interstate/state bridges, only 1.2 percent would be classified SD. Currently, 37.6 percent of bridges in all systems are rated Good, 42.6 percent are rated Fair, and 19.8 percent are rated Poor. According to Scott Neubauer, Iowa DOT bridge maintenance and inspection engineer, preventive maintenance techniques used by the state include washing/cleaning bridge decks or the entire bridge, installing deck overlays, and sealing and replacing leaking joints.

3. Pennsylvania, 18.2 percent

When asked to rate the bridges in his state on a scale of 1 to 5 (with 5 being excellent), Michael Winslow with the Pennsylvania DOT said “2.” “We are near the worst in the country in terms of having the most SD bridges by count and percentage,” he said. The state is planning to replace 182 bridges this fiscal year. It closed more than 10 bridges in the past year due to deficiency, structural failure or collapse, and slated another 10-plus structures for repair.

4. South Dakota, 17.4 percent

In comments to our survey, the South Dakota DOT gave itself a score of 3.5 on a scale of 1 to 5. “State bridges are good, but local bridges are aging at a quicker rate than what can be replaced,” said the department. “The greatest challenge for counties has been deciding which bridge to replace and which they can do without, which means closing or vacating the roadway and bridge.”

5. West Virginia, 16.9 percent

According to the 2016 FHWA National Bridge Inventory, West Virginia has 7,712 bridges in all systems, 36.6 percent of which are rated Good, 46.5 percent Fair and 16.9 percent Poor.
