More Details Revealed for Develon’s New DTL26, DTL30 Compact Track Loaders

Develon has released detailed specs of its two newest compact track loaders, as the DTL26 and DTL30 are now available at dealerships in North America.

The CTLs were unveiled at ConExpo 2026, expanding the company’s lineup to three models. Develon also released a walkaround video of the DTL30, which you can watch at the end of this article.

Here’s a look at the specs:

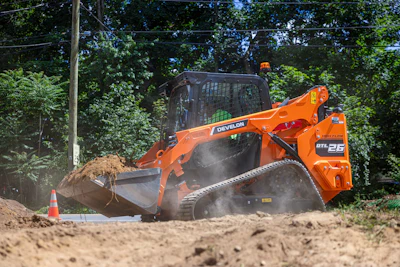

DevelonDTL26 Compact Track Loader Specs

• Operating weight: 9,914 - 10,176 lbs.
• Engine: 71.7 net hp, Develon D24 turbocharged (no DEF required)
• ROC @ 35% of tipping load: 2,594 lbs.
• Tipping load: 7,411 lbs.
• Hydraulic flow: 24 gpm (standard) / 30.9 gpm (high)
• Hydraulic pressure: 3,495.4 psi (standard) / 4,061.1 psi (high)
• Max torque: 206.5 lb.-ft.
• Bucket breakout force: 6,291.9 lbf
• Dump height: 89.9”
• Dump reach: 43.8”
• Lift path: vertical
• Max travel speed: 8.7 mph
• Max drawbar pull: 10,228.8 lbf
• Track width: 12.6” or 15.7”
• Ground pressure: 6.5 psi (12.6” tracks); 5.2 psi (15.7” tracks)
• Length with bucket on ground: 153.2”
• Vehicle width: 71.7” (12.6” tracks); 74.8” (15.7” tracks)
• Height to top of cab: 83.3”

DTL30 Compact Track Loader Specs

• Operating weight: 10,531 – 11,223 lbs.
• Engine: 71.7 net hp, Develon D24 turbocharged (no DEF required)
• ROC @ 35% of tipping load: 2,921 lbs.
• Tipping load: 8,345 lbs.
• Hydraulic flow: 24 gpm (standard) / 35 gpm (high)
• Hydraulic pressure: 3,335.9 psi (standard) / 4,061.1 psi (high)
• Max torque: 206.5 lb.-ft.
• Bucket breakout force: 6,904.9 lbf
• Dump height: 96.9”
• Dump reach: 47.2”
• Lift path: vertical
• Max travel speed: 8.7 mph
• Max drawbar pull: 10,228.8 lbf
• Track width: 15.7” or 17.7”
• Ground pressure: 4.8 psi (15.7” tracks); 4.2 psi (17.7” tracks)
• Length with bucket on ground: 156.1”
• Vehicle width: 76.8” (15.7” tracks); 78.8” (17.7” tracks)
• Height to top of cab: 83.3”

Hitting the Highlights

Highlights for the DTL26 and DTL30, according to Develon, include:

• Develon’s 71.4-horsepower D24 diesel engine, which does not require diesel exhaust fluid or a selective catalytic reduction system.
• Wider cab.
• Can be ordered as open canopy or enclosed cab. The cab version comes standard with rearview camera, heating and air conditioning, polycarbonate side-open door and Bluetooth. Its “minimized A-pillar design” increases operator visibility.
• Develon’s 270-degree around view monitor camera and sensor system is an available option for cab model.
• 8-inch touchscreen display.
• Adjustable air- or mechanical-suspension heated seat.
• Smart Assist functions standard on the cab version, including return to dig, bucket shake and auto self-leveling.
• Hydraulic quick coupler standard with cab model.
• Creep speed control.
• Optional 300-pound counterweight.
• Choice of block or multi-bar rubber tracks.
• Torsion suspension system.
• Triple-flange idlers.
• Fixed-frame undercarriage.
• Reversible cooling fan to clear debris from engine compartment.

Compact track loaders are the most popular construction equipment category by new financed sales in the U.S. More than 56,000 units were sold from May 2025 to April 2026, according to Fusable’s EDA equipment finance data.

Walkaround Tour

Develon released this walkaround video of the DTL30 compact track loader during its unveiling at ConExpo 2026:
