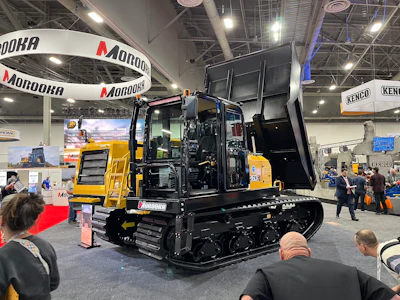

Japanese manufacturer Morooka has brought its latest rotating crawler carrier, the MST160CR to the U.S., with higher travel speeds and technology upgrades.
The 306-horsepower MST160CR weighs 40,345 pounds and can haul up to 35,274 pounds. It runs on a Caterpillar C7.1 Tier 4 Final engine, and its bed rotates 360 degrees. It is the 11th crawler carrier model from Morooka for the U.S.
A key selling point on the MST160CR is its 8.1 mph top travel speed, which Morooka advertises as the fastest in the 16-ton class. The manufacturer also highlights the MST160CR’s 20-foot length and 10-foot width as making it similar in compactness to an 11-ton carrier, so there's no need for escort cars on the road.
Equipment World
Morooka has outfitted the MST160CR with auto-deceleration functions that lower engine speed after the travel control lever or swing control lever are left in neutral for too long. An anti-stall function enables the hydraulics to automatically sense large loads and adjust flow rates.

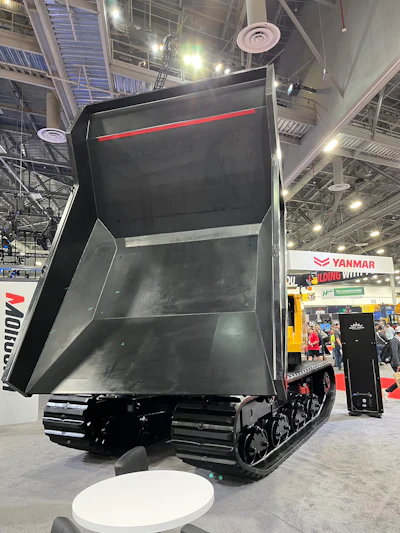

A new electronically controlled joystick lever allows travel direction to always match the lever direction, and the dump bed now has wear-resistant Hardox steel plate at the front of the inside for improved durability.
The MST160CR comes with an overload-prevention weighing function that allows operators to press one button and estimate the payload based on hydraulic pressure.
Equipment World
Standard features include a ROPS/FOPS cabin, LED bar type light, a removable pivot bracket for the undercarriage and omnidirectional cameras feeding a 3D bird’s eye view of the MST160CR to an in-cab monitor.
Other improvements compared to the MST110CR model include improved right-side visibility and boosted undercarriage durability via an extended crawler contact length.
Morooka MST160CR Crawler Carrier Specs:
- Engine: Caterpillar C7.1 Tier 4 Final
- Nominal output: 306 horsepower @ 1,900 rpm
- Maximum payload: 35,274 pounds
- Travel speed (high/low): 8.1 / 4.9 mph
- Ground pressure: (empty/loaded): 5.3 / 9.9 psi
- Operating weight: 40,345 pounds
- Overall length: 20’ 4”
- Overall width: 9’ 9”
- Minimum ground clearance: 22”
- Dump capacity (struck/heaped): 7.5 / 10.4 cubic yards
