Genie updates entire GS scissor lift line ahead of new ANSI standards

Me Photo Headshot
Updated Sep 29, 2019

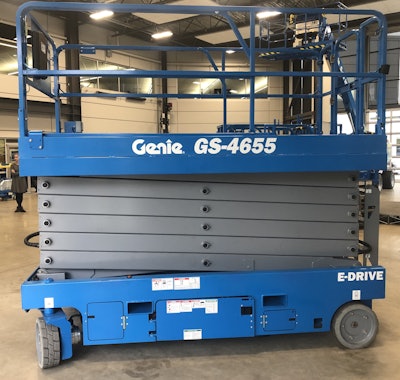

Genie GS-4655 scissor liftGenie GS-4655 scissor lift

In preparation for new standards for aerial lifts that take effect in December, Genie has unveiled two new scissor lift models for the U.S. market, along with upgrades to its full line of GS slab scissors.

During a press event September 17 at its headquarters in Redmond, Washington, the company announced that it will add the new 46-foot GS-4655 to its slab scissor lineup for the global market, including North America. And it will introduce to North America the 19-foot GS-1932, a model that has been on the European market.

The new and updated models in the GS series meet ANSI standards that will require scissor lifts to be rated for indoor and outdoor use to account for wind safety, and to have load-sensing technology to prevent platform overload. The standards also call for changes to the platform rails and for other safety features. Machines built before that date do not have to meet the new standards.

ANSI compliance was not the only thing on Genie engineers’ minds when developing the next generation of slab scissor lifts. The company also added such features as an AC electric-drive system instead of a hydraulic drive motor to the GS-4655 and introduced a variety of optional accessories to assist workers on the platform.

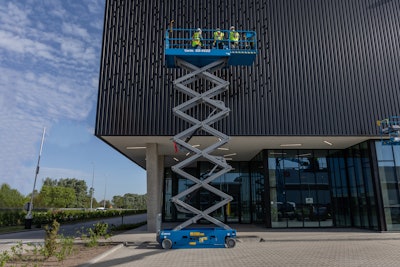

The new GS-4655 has a platform capacity of 770 pounds, is 55 inches wide and is designed for heavy- and light-duty construction, as well as for narrow-aisle warehouse tasks, electrical installation and facilities maintenance, the company says.

Genie touts the GS-1932 as a lighter alternative to its GS-1930, which will also be updated for ANSI compliance. The electric GS-1932 weighs in at just under 3,000 pounds and can go where heavier lifts would be restricted by weight. It is also 2 inches wider than the GS-1930, at 32 inches, and has a platform capacity of 500 pounds. It is designed for maneuvering in tight spaces.

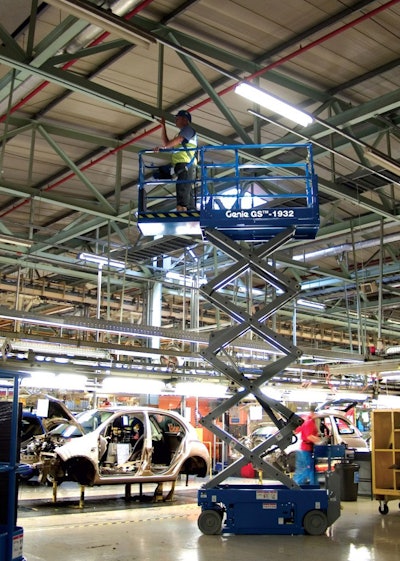

Genie GS-1932Genie GS-1932

Indoor versus outdoor

Currently, scissor lifts in the United States do not have to be rated for indoor/outdoor use, but under the new ANSI standards, manufacturers must account for wind up to 28 mph for outdoor use and limit platform height accordingly.

Partner Insights
Information to advance your business from industry suppliers

In complying with the standards, Genie decided to design its scissors for both indoor and outdoor use by allowing operators to simply push a button to change modes.

In indoor mode, the GS-4655 can rise to a platform height of 46 feet. But in outdoor mode, the max platform height is automatically limited to 34 feet 6 inches for the wind rating.

For the GS-1932, indoor mode allows a platform height of 19 feet, while outdoor mode reduces max height to 14 feet 8 inches.

The switch to indoor or outdoor mode can be made with the push of a button on the platform controls or at the ground controls. If the operator does not select a mode, the lift automatically operates in outdoor mode. The indoor/outdoor mode switch can also be made while the platform is elevated.



Platform changes

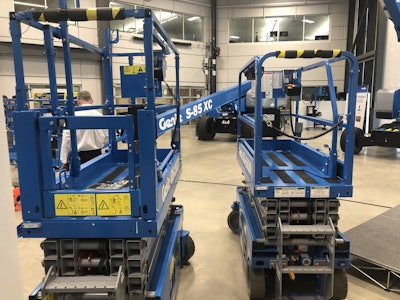

The guardrail on the GS-1932, left, is higher than the current GS-1930 model, right, in order to meet new ANSI standards. The GS-1932 also has a swing-out platform-entry door, rather than the chain link on the GS-1930. The GS-1930 will also soon be updated to the ANSI standards, which take effect in December.The guardrail on the GS-1932, left, is higher than the current GS-1930 model, right, in order to meet new ANSI standards. The GS-1932 also has a swing-out platform-entry door, rather than the chain link on the GS-1930. The GS-1930 will also soon be updated to the ANSI standards, which take effect in December.

Another big change for scissor lifts under the standards is load-sensing technology that automatically cuts off machine operations when the platform capacity is exceeded. Genie uses sensors to constantly monitor platform load, and when exceeded, visual and audible alerts are triggered and machine motion stops until weight is reduced.

Another change in the platform focuses on the guardrails, which must be increased to 3 feet 7 inches high. To accommodate the change, Genie switched from standard rails to folding guardrails on all its GS scissors, except the GS-1330m, which because of its size does not require the elevated rails.

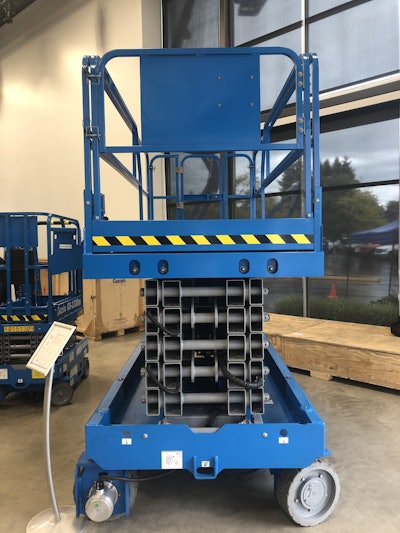

The black and yellow tape on this Genie GS-4655 indicates that it is ANSI-compliant. Such tape on the platform is required under the new ANSI standards to show which machines are compliant. Lifts built before the standards take effect are grandfathered in to the current standards.The black and yellow tape on this Genie GS-4655 indicates that it is ANSI-compliant. Such tape on the platform is required under the new ANSI standards to show which machines are compliant. Lifts built before the standards take effect are grandfathered in to the current standards.

To meet the new ANSI standards, GS scissors will also be equipped with toe boards on all platform entrances and standard swing gates instead of a chain link at platform openings.

The GS-4655 will come with a 4-foot rollout extension deck, and it has full-drive capabilities at its max 46-foot platform height.

Other platform features for the GS-4655 include diamond plate flooring for a durable gripping surface and a link stack centered under the platform for operator stability and comfort.



Electric replaces hydraulic

Genie Gs 4655 2For the GS-4655, Genie replaced the hydraulic drive motors with an AC electric-drive system that the company says has “go anywhere capabilities.” The front-wheel electric-drive motors are sealed to prevent damage on harsh jobsites.

The lift can climb up to a 25 percent grade and has a 14-degree breakover angle to prevent bottoming out when climbing truck ramps for transporting, Genie says. Side forklift pockets have also been included on the chassis to aid transport.

Genie says the efficient electric-drive system along with regenerative braking gives the GS-4655 “industry-leading runtime per charge.” The system also delivers “precise and smooth drive control and fewer hydraulic touch points.”



Accessories for the platform

Genie Lift Tools Work TrayGenie Lift Tools Work Tray

Genie has launched three new ANSI-compliant accessories to go with its new and updated GS models. The Genie Lift Tools accessories are all designed for easy installation and are as follows:

  • Work Tray – gives platform workers a place to store their tools, fasteners and other small objects to eliminate clutter and tripping hazards. It is similar to the trays for Genie’s boom lifts and can also be used on the extension deck.
  • Pipe Cradle – provides a secure way to carry pipes and other materials on the platform, whether the extension deck is extended or retracted.
  • Panel Carrier – allows operators to place panels, windows and drywall on the outside surface of the platform to give workers more room in the platform and make loading, unloading and raising the material easier. The carrier spans the length of the platform.

The accessories and new and updated GS scissor lifts will be available later this year in North America, Genie says.
