ASV unveils RS-75, VS-75 skid steers with best-in-class ground clearance

Me Photo Headshot
Updated Mar 31, 2018

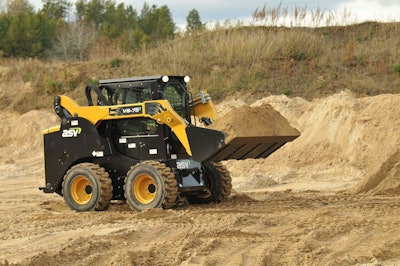

ASV’s new vertical lift VS-75ASV’s new vertical lift VS-75

ASV designed its new large-frame RS-75 and VS-75 with a ground clearance of 10.5 inches, which is more than 2 inches higher than other machines in their class, the company says.

The higher ground clearance makes it easier to traverse obstacles like rocks and stumps without getting stuck. Both skid steers, the company’s largest, also feature a 24-degree departure angle for climbing steep hills. The company says it achieved this by designing the frames independently for the radial lift RS-75 and the vertical lift VS-75, the same process it follows for all its skid steers.

The VS-75 has a rated operating capacity of 3,500 pounds and a tipping load of 7,000 pounds. The RS-75’s rated operating capacity is 2,600 pounds with a 5,200-pound tipping load. They are designed for rental, construction, landscaping, snow-removal and forestry applications.

Both skid steers can travel up to 11 mph with an optional two-speed drive. They are powered by a 2.9-liter, 74-horsepower diesel engine that produces 192 foot-pounds of torque. The Tier 4 Final engine eliminates the need for regeneration, exhaust sensors and diesel exhaust fluid.

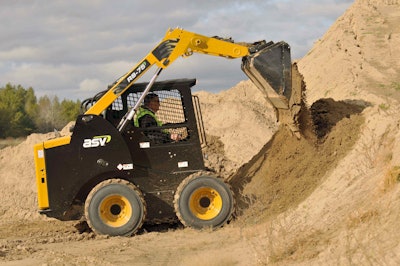

ASV’s radial lift RS-75ASV’s radial lift RS-75

ASV says the engine loses none of its power when the RS-75 and VS-75 are running attachments with the optional high-flow auxiliary hydraulic system, which is composed of large lines, hydraulic coolers and direct-drive pumps. The system delivers flow of 30.9 gallons per minute and pressure of 3,335 pounds per square inch. The skid steers also come with standard hydraulic stick controls and quick-attach for attachments.

ASV says it designed the new skid steers for easy maintenance. The engine, filters and other daily check points can be quickly accessed through a swing-out door and the cooling system. All the service items have drain plugs to speed up the draining process; that includes the chain cases, hydraulic tank, radiator and engine oil pan. All of the pins have zerk fittings to make greasing easier. ASV says the machines’ drive hubs don’t require maintenance because of their standard metal-face seals.

Partner Insights
Information to advance your business from industry suppliers

An all-weather, pressurized cab with heating and cooling is optional.



Quick specs

Model      Operating weight      Tipping load    Breakout force     ROC

RS-75        7,425 pounds                   5,200 lbs.             5,845 lbs.               2,600 lbs.

VS-75        8,740 pounds                   7,000 lbs.             5,920 lbs.               3,500 lbs.
