American Augers intros M-300D cleaner, DD-240T HDD

Me Photo Headshot
Updated Oct 19, 2017

American Augers’ new M-300D HDD fluid cleaning system got its first running at ICUEE, keeping a steady flow of material churning at the company’s booth.

The company also used the demo show in Louisville, Kentucky, to launch its DD-240T Midi Rig horizontal directional drill.

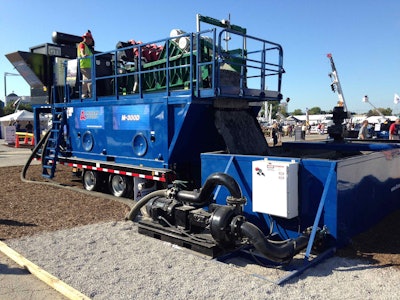

American Augers’ M-300D. Photo by Don McLoud, Equipment WorldAmerican Augers’ M-300D. Photo by Don McLoud, Equipment World

The HDD fluid cleaning system for 60- to 100-ton drill units can handle 300 gallons per minute, yet it’s trailer size is small enough to meet lower registration and excise tax requirements.

Lee Drugan, marketing manager, was on hand to explain the cleaning system’s operation, showing how the fluid entering the system had 18 to 19 percent sand, but after cleaning, sand was reduced to less than .25 percent.

American Augers designed the M-300D for urban and suburban areas, so it features quiet operation. The company says it is also rugged enough for off-road use when being towed behind heavy equipment.

The system features a tank agitation system that keeps solids suspended in the tank and three pumps for cleaning.

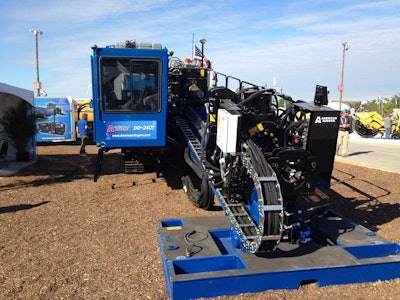

American Augers’ DD-240T. Photo by Don McLoud, Equipment WorldAmerican Augers’ DD-240T. Photo by Don McLoud, Equipment World

The DD-240T will replace the company’s DD-220T horizontal directional drill, providing 20,000 more pounds of push/pull force for a total of 240,000 pounds.

The rig comes in at 52.6 feet long and 8.2 feet wide for easier transport. It boasts 30,000 foot-pounds of rotary torque at 50 rpm, with max rotary torque of 43,900 foot-pounds at 37 rpm.

Drugan says the company is offering several options for the new machine, including a two-person or one-person cab, an onboard fluid pump, pipe loader and full-length runway.

The cab can be set off-board to reduce vibration on the operator. The cab also features touchscreen control.

It is powered by a 523-horsepower Mercedes Tier 4 Final engine, which requires no regen cycle.
