From refinery, to delivery trucks, to your storage tank, chances for diesel fuel contamination are ever present

Updated Sep 15, 2015

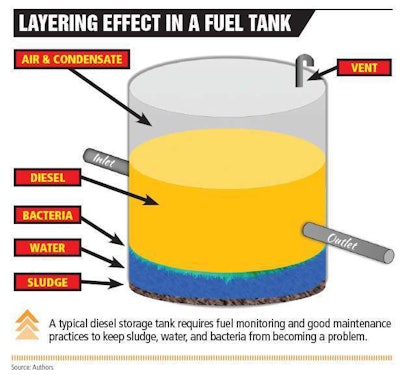

Maintenance image 1Most of us know that clean fuel is necessary for the high-pressure common rail fuel injectors (HPCR) used in today’s Tier 4 Final engines. Fuel system pressures approaching 40,000 psi require particle filtration as small as one or two microns.

The problem is that as fuel system requirements are becoming more stringent, actual diesel fuel quality is going down.

Maintaining diesel fuel quality and cleanliness has never been easy. To give you an idea of how long the industry has been dealing with this issue, a Caterpillar Operators Manual published 90 years ago stated “dirt and water causes 90 percent of all the problems with diesel fuel systems.”

So, who is designated with that responsibility? The old adage, “When it’s everyone’s job, it is no ones’ job” seems to be the modus operandi for most companies. Nonetheless, it’s now critical for operators, mechanics, fleet managers and fuel suppliers to pay even more attention to the issue of diesel fuel cleanliness.

Lubricity challenges resulting from ULSD

In 2006, the U.S. Environmental Protection Agency mandated the shift from low sulfur to ultra low sulfur diesel (ULSD), reducing sulfur in the fuel from 500 parts per million (ppm) to 15 ppm.  After the transition to ULSD people started complaining about higher than normal corrosion in diesel fuel storage tanks, fuel dispensing pumps and related piping configurations.

One of the concerns with ULSD fuel was lack of lubricity. The cheapest way to remove sulfur during refining involves hydrotreating, a process that removes sulfur and cetane by treating it with hydrogen. Unfortunately, hydrogen is highly reactive and also reduces the lubricity, or lubrication properties, of the end-product.

Sulfur serves as a lubricating medium and the reduction of that sulfur (from 500 ppm to 15 ppm) causes a reduction in lubricity.  After numerous complaints, refiners started adding lubricity additives to the process to compensate. Many people who service equipment still complain of evidence of poor lubricity, especially in older engines.

Diesel is a perishable commodity

Even if everything else is managed correctly, when you store diesel over time, chemical reactions can compromise the fuel’s quality and cleanliness. There are two main types of chemical reactions. One is oxidation, which occurs when the fuel is exposed to oxygen or oxygen-bearing matter. The second reaction is hydrolysis, which occurs when the fuel is exposed to water.

Both reactions produce chain reactions within the fuel, resulting in a fuel that appears darker in color and more translucent. Contaminates produced under these conditions include varnishes, gums and sludge that separate out of the fuel and settle.

Most all diesel fuel, including ULSD, has a shelf life from three to six months. This can be extended by adding stabilizers, restricting water intake through proper storage, filtration and restricting heat.  But diesel is far more susceptible to water solubility issues than gasoline.

Ethanol creeping into diesel supplies

Another problem that’s cropping up is corrosive damage to diesel storage tanks. This once took years but now happens in mere months.

According to a study conducted by the Clean Diesel Fuel Alliance, “Diesel tanks suffering from extreme corrosion contained trace amounts of ethanol and had low pH values in the 2.5 range. A low pH value means the fuel is high in acid. A pH level below 7 is considered acidic; those below 5.5 to 5.6 are considered problematic. The low pH from the study was a result of acid from the bacterial interaction, in particular from a bacteria called acetobacter, which is attracted to ethanol.

So how did the ethanol get into the diesel?

One possible source is the issue of “switch loading.” Fuel-hauling tanker trucks are not used exclusively for one particular fuel. One day they could be transporting ethanol-blended gasoline and the next day transporting diesel. The ethanol gasoline remaining in the bottom of the tanker from yesterday would end up mixing with diesel fuel for today’s run.

Water: an ever present concern

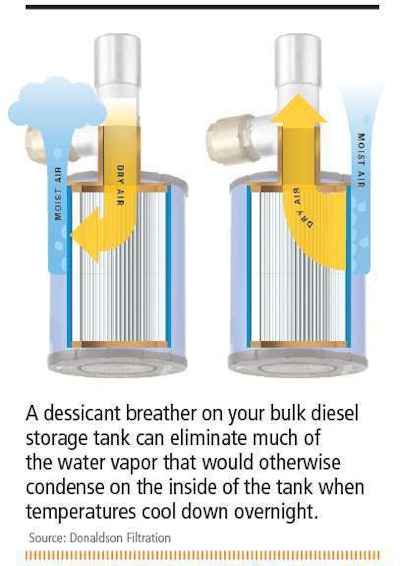

Maintenance Image 2Because diesel is heavier than gasoline, water is more soluble and more readily held in suspension in gasoline as compared to diesel. This is especially true of ethanol-supplemented gasoline. Also, volatility (how easily a fuel vaporizes) is lower in diesel than gasoline, which allows air and dampness to penetrate the diesel fuel in both vehicle and bulk storage tanks more quickly than with gasoline.

Additionally, diesel fuel tanks are subject to water condensation because, unlike gasoline, diesel fuel has no vapor pressure to displace or push out air. When a fuel tank warms up on hot days, the air expands and is forced out.  As the tank cools at night, thermal contraction causes humid air to be sucked back into the tank and water condenses on the cooler inner tank wall surfaces.

A 7-degree difference in air temperatures can cause this to be an issue. This is one reason to keep diesel fuel tanks topped off, if possible. A full tank provides less surface area for condensation droplets to collect.

Then there are poor maintenance practices. Water can enter a fuel system through a defective or poorly sealed tank, an open fill port, or when rain enters a drum through a bung plug or chime that has been left open or unsealed.  Or it can simply be transferred from another tank that is contaminated with water, like bulk fuel transport tanks.

Water + diesel = microbes and sludge

The presence of water in diesel fuel also adds to the problem of microbial growth.  Fungus, mold and other types of bacteria can flourish and use diesel fuel as a food source. The residue and resulting bonding from this bacteria damages fuel quality, clogs filters and can lead to equipment failure.

Diesel fuel will always contain a certain level of water content. The objective is to keep this water content within suitable limits, which is well below the saturation point. Since some water is inevitable, one solution is a routine treatment of fuel storage tanks with a biocide treatment program to kill tank bacteria microbes.

Drain it, filter it, or block it with nitrogen

The ideal way to remove large volumes of settled water in diesel is to drain the tank. Of course this is neither economical nor expedient but would be needed for high levels of water contamination. The good news is ambient moisture and condensate can be restricted from entering the diesel through the use of appropriate desiccant breathers in combination with a dry air or nitrogen blanket.

Nitrogen blanketing is an effective means to store highly volatile substances or substances disposed to oxidation issues. Tank blanketing with nitrogen (an inert gas) is a safe and reliable technique.

Humid or moist air in the head space is replaced by pure inert and dry nitrogen. A valve control system causes the tank, as it fills and empties, to have the dead space of oxygen replaced with carefully regulated nitrogen gas.  It serves as a protective blanket, thus the term nitrogen blanket or tank blanketing. When we were in the deserts of Oman, we used these blankets due to the high day and low night temperatures. They worked well under these conditions.

Filtration is your responsibility

According to Rick Romney, mining manager for McLellan Industries, Hanford, California, “One never knows what is being contaminated in storage tanks, via nozzles or everyday work habits, McLellan provides a double headed filter visibly mounted on their fuel/lube trucks so the operator knows it is there and that the filters need regular PMs the same as the truck or equipment.” A PM can be generated to routinely service and inspect these filters.

Bob Shipman, chief engineer at Carco Industries, Portland, Oregon, estimated that “only four out of 10 fuel/lube truck buyers are really concerned about fuel filtration.” Carco is a major manufacturer of lubrication and service equipment for the construction, aggregate and mining industries.  To address these needs, Carco utilizes filtration products from Cim-Tek for meeting any required requests for fuel filtration on their fuel/lube trucks.

Get technical with your suppliers

Other than good diesel storage protocols and housekeeping practices, what can an equipment owner or fleet manager do? Perhaps the best place to start is to ask your fuel supplier to provide the Certificate of Analysis for the fuel you are purchasing, which will include the formulation date.

You can also ask your equipment dealer to supply you with the minimum OEM recommended ISO Code for fuel cleanliness that will provide adequate service life for the fuel system on your machines. After all, refiners must conform to the ASTM (American Society for Testing and Materials) D975 standard that addresses parameters such as cloud point, water and sediment, viscosity, sulfur, cetane number and lubricity when they dump diesel fuel into the pipeline.

Filter to ISO fuel cleanliness specs

Note, however that this fuel may pass through three or more storage tanks where contamination can occur before it reaches your equipment. Because of this scenario, it is absolutely critical that the equipment owner address fuel filtration at the inlet and outlet of any storage tank within their operation. The goal for fuel cleanliness entering and exiting a bulk fuel tank (stationary or mobile) should meet ISO Code 4406 for contamination.

With proper filtration, this spec can be achieved. The recommended ISO values for Code 4406 are 18/16/13. For example: An ISO cleanliness code of 18/16/13 refers to the following: 18 = 4 micron particles, 16 = 6 micron particles, and 13 = 14 micron particles. Adding filtration at the inlet and outlet points just makes sense. It directly impacts fleet reliability and repair costs.

New rules will make fuel quality even more important.

On July 13, 2015, federal regulators formally published their Phase 2 GHG (Green House Gas) Emissions Reduction Proposal that will tighten greenhouse-gas emissions for trucks, improve their fuel economy and regulate trailer efficiency for the first time.

The tougher standards for medium and heavy-duty trucks would not be phased in until 2021 through 2027, but unless there is a drastic re-design of the diesel engine and its fuel injection system, clean fuel will become even more important in trucks than it is today.
