Doosan unveils 5 new crawler excavators ranging from 14 to 23 metric tons (PHOTOS, VIDEO)

Marcia Doyle Headshot
Updated Apr 7, 2015

[imagebrowser id=223]

Doosan continued the introduction of its Tier 4 Final dash-5 crawler excavator lineup, debuting five models in the Arizona desert last week to the construction trade press.

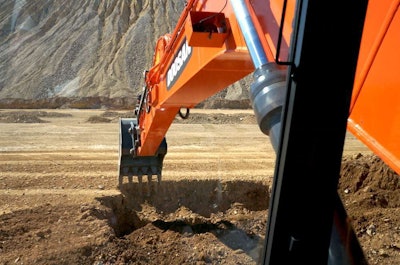

DSC01476The models range from the 14-metric-ton DX140LC to the 23-metric-ton DX235LCR-5 reduced tail swing machine.  Ranging from 113 to 181 horsepower, the excavators use both a diesel oxidation catalyst and SCR emissions aftertreatment system. The DX140LC-5, DX140LCR-5 and DX180LC-5 have Perkins engines; the two larger DX225LC-5 and DX235LCR-5 models have Doosan engines.

A sight gauge lets operators know the fluid level of the DEF tank; topping off the DEF tank is recommended as part of regular fueling operations. DEF consumption on the machines averages around 5 percent of fuel consumption.

One area of concentration for Doosan engineers in the dash-5 upgrade was the front work group, says Shane Reardon, Doosan’s excavator product specialist. “It’s what really takes the abuse,” he says. To beef up this area, Doosan installed what it calls an ultra hard wear disk in the bucket pin area that will last around 7,000 hours, Reardon says. “Just unbolt six bolts on each side to replace it,” he says. “It doesn’t require reboring, or putting in new bushings. And the tighter things are in this area, the better your breakout force.”

Doosan also put solid cast sections at the end of the stick, the end of the boom, and the pin-on point on the boom cylinder. “We also have internal gussets inside our boom at high stress points,” Reardon adds.

Each new model features Doosan’s Smart Power Control, consisting of two systems – Variable Speed Control and Pump Torque Control – both designed to keep the machine productive in the Digging work mode while reducing fuel consumption. The Variable Speed Control reduces engine rpm during low workload requirements – such as the swing portion of the dig cycle – reducing the total energy needed and improving fuel efficiency up to 7 percent. The Pump Torque Control matches the hydraulic pump torque and engine response to work demands.

Operator features

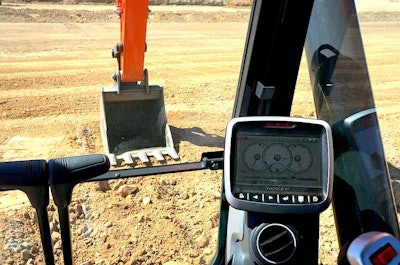

Inside the cab, a 7-inch LCD display shows both machine operating information next to the standard rearview or optional side-view camera. When both cameras are in use, a split screen display allows them to be viewed together.

Partner Insights
Information to advance your business from industry suppliers
8 Crucial Elements of a Tire Safety Program
Presented by Michelin North America
Selecting the Correct Construction Tire Solution
Presented by Michelin North America
How High Fuel Prices hurt Your Business
Presented by EquipmentWatch

“When you shut the door it’s very quiet,” says Shane Reardon with Doosan. “Some operators will start the engine, not think it’s running and try to start it again.”

The machine has four work modes and four power modes – power-plus, power, standard and economy, each offering a step down in power, and leading to more fuel economy. “This helps you to tailor the machine to your application,” Reardon says.  The pattern change valve – allowing you to switch between ISO and backhoe–style control patterns – is located in a service door right behind the cab. Auto shut down can be set from 3 to 60 minutes after the machine starts idling.

The cooling group is split instead of stacked, which Reardon says increases the visibility from the cab rearward.  The hydraulic pump, drive motors and swing motors are Doosan built.

Model overview

The five models include:

  • The 14-metric-ton DX140LC-5 and its reduced tail swing twin, the DX140LCR-5. Both models have a maximum digging reach of 27 feet 11 inches; but there are differences in maximum digging depth (20 feet 1 inch for the LC model and 19 feet 7 inches for the LCR unit) and maximum loading height (LC: 21 feet 1 inch; LCR: 23 feet, 2 inches.
  • The 18-metric ton DX180LC-5, 129-horsepower machine with a maximum digging reach of 29 feet 7 inches and a maximum dig depth of 20 feet. The 43,224-pound machine has four power modes and four work modes.
  • The Tier 4 Final 22-metric-ton DX225LC and 23-metric ton DX235LCR reduced tail swing model. The DX225LC has an available super long reach configuration for additional dig and depth.

All five models have been updated to include improved anti-skid plates for easier engine access, a relocated emergency engine stop, an upgraded alternator and a new front window design.

The excavators come standard with a three-year subscription to Doosan Telematics, which allows customers to monitor machine health and location, and gives Doosan dealers the ability to respond to machine warning messages and alerts.
