Potain showcases topless crane line at Bauma

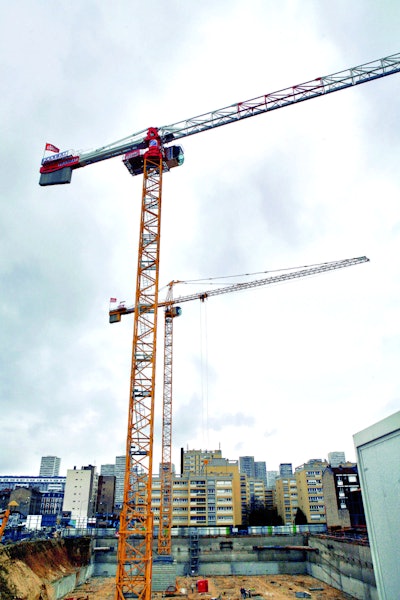

The MDT 368 is available in two versions, the MDT 368 L12 with a 12-ton maximum capacity, and the MDT 368 L16 with a 16-ton maximum capacityThe MDT 368 is available in two versions, the MDT 368 L12 with a 12-ton maximum capacity, and the MDT 368 L16 with a 16-ton maximum capacity

The MDT 368 from Manitowoc’s Potain brand will be featured at this year’s bauma exhibition. The crane, launched last year, is the largest Topless MDT tower crane. It adds new design features to the strong lift and ease-of-assembly familiar to users of other cranes in the MDT range.

The MDT 368 is available in two versions, the MDT 368 L12 with a 12-tonmaximum capacity, and the MDT 368 L16 with a 16-ton maximum capacity. Maximum jib length for both models is 75 m. Two hoist options, the 55 kW 75 LVF 30 Optima or the 75 kW 100 LVF 30 Optima, are available on both. A 6 DVF 6 trolley, which can reach 100 m/min with a 4-ton load, is available on the MDT 368 L16.

A unique feature of the MDT 368 is a counterjib that folds for transport. The crane’s outreach and lift capability require a 21.7-meter counterjib — too long for a standard truck. A hinge allows this section to fold for travel. The crane’s jib sections are interchangeable with those on the MDT 268 and MDT 308 cranes. A choice of masts is offered, with the standard 2 m x 2 m or larger 2.45 m x 2.45 m K mast available.

Designation Max
capacity
Max jib length Max capacity at jib end
MDT 368 L16 16 t 75 m 3 t
MDT 368 L16 17.6 USt 246 ft 3.3 USt
MDT 368 L12 12 t 75 m 3.2 t
MDT 368 L12 13.2 USt 246 ft 3.5 USt
