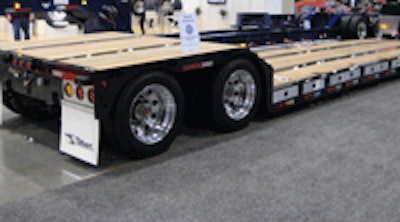

Consisting of a 48-foot overall length, the tandem-axle trailer has a 29-foot deck length with a rated 35-tons distributed, and 30-tons in each 10-feet of deck length. The 8-foot, 6-inch deck width has the ability to extend to 12-feet, 6-inches with the optional aluminum pull-outs. Additionally, the 35-Ton SRG offers an ultra-low 18-inch loaded deck height with a 6-inch ground clearance.
Offering versatility and ease of operation, the 35-Ton SRG features a lighter-weight mechanical removable gooseneck design. Air-ride suspension provides added operator comfort for a smoother ride.
This customized unit offers heavy-duty T1, 100,000-PSI minimum yield steel construction, and a four-beam design for unmatched durability. Furthermore, Apitong flooring outside the main beams offers high performance and stability for every load. The 35-Ton SRG can be equipped with optional aluminum wheels, strobe lights, battery backup, and connections for a flip axle.
Founded in 1938, Talbert Manufacturing provides the most complete line of heavy haul trailers and specialized transportation equipment for the commercial, industrial, military and government sectors; and in applications that include renewable energy, aerospace, heavy construction, in-plant material handling, manufacturing and processing systems, and much more. For more information, contact Talbert Manufacturing, 1628 W. State Road 114, Rensselaer, IN 47978, call 800-348-5232, fax 219-866-7060, email [email protected] or visit the website at www.talbertmfg.com.
