Special Report from TRB 2014: Warm Mix Asphalt

The incursion of warm-mix asphalt (WMA) into the nation’s bituminous pavements continues unabated.

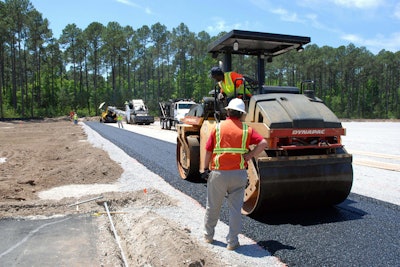

Porous asphalt pavement is similar to open-graded friction courses (OGFC), with the same problem of drain-down, but is meant for static loads and environmentally sustainable stormwater drainage. Here, mix for the parade ground at U.S. Marine Corps Recruit Depot at Parris Island, S.C., contains warm-mix additive instead of fibers.Porous asphalt pavement is similar to open-graded friction courses (OGFC), with the same problem of drain-down, but is meant for static loads and environmentally sustainable stormwater drainage. Here, mix for the parade ground at U.S. Marine Corps Recruit Depot at Parris Island, S.C., contains warm-mix additive instead of fibers.

The latest National Asphalt Pavement Association (NAPA)/Federal Highway Administration (FHWA) survey of asphalt producers’ use of recycled materials and warm-mix asphalt find that nearly a quarter of all asphalt produced during the 2012 construction season was produced using warm-mix asphalt technologies.

The survey, conducted by NAPA under contract to FHWA, found a total of 86.7 million tons of WMA were produced in 2012, a 26-percent increase since 2011 and a 416-percent increase in the use of warm mix since the survey was first conducted in 2009. The full survey may be downloaded at asphaltpavement.org/recycling.

The interest in WMA is reflected by the large number of peer-reviewed technical papers on WMA presented at the 93rd annual meeting of the Transportation Research Board (TRB) meeting in Washington, D.C., in January.

The annual event was held Jan. 12-16 and kicks off the year for the surface transportation community. Nearly 12,000 transportation professionals came to Washington from around the world for the 2014 event.

The TRB Annual Meeting program covered all transportation modes, with more than 4,500 presentations in nearly 800 sessions and workshops addressing topics of interest to stakeholders in government, industry and academia.

For nearly 60 years, TRB has been held among a cluster of hotels along Connecticut Avenue near Woodley Park and the National Zoo, but in 2015 it will move to bigger digs at the Walter E. Washington, D.C., Convention Center.

Following are summaries of some of the technical papers at TRB of interest to the readers of Better Roads. For more information, visit trb.org.

Evaluation of WMA performance in Florida

Use of warm-mix asphalt is indicated for paving in cold ambient conditions or long hauls from the plant, during which the temperature of hot-mix asphalt can swiftly decline to the point that it loses workability.

Before WMA, plants would produce mixes at higher-than-optimum temps in the hopes that the mix would retain workability on arrival at the jobsite. But this excessive heat had the effect of “prematurely aging” the liquid binder in the mix by burning off the lighter hydrocarbons that give the pavement resistance to thermal cracking and other ills. Typically, those lighter fractions would be driven off by slow weathering and aging during the years.
