New Tobroco-Giant G3500 Loader: Telescoping Boom, Bigger Loads, More Versatility

Me Photo
Updated Oct 3, 2020
Giant G3500 Z-Bar compact wheel loaderGiant G3500 Z-Bar compact wheel loader

Tobroco-Giant offers three different boom options with its latest compact articulating wheel loader, the Giant G3500.

The standard G3500 comes with a Z-bar boom. The G3500’s X-Tra model offers higher lift capacity and increased visibility. The G3500 can also be configured with a telescoping boom for extended reach and lift.

The company says the G3500 models achieve high tipping loads compared to their weight. They also boast a narrow width range of 55 to 65 inches and a 65-inch height for squeezing into tight jobsites. They can be used indoors or outdoors.

The models run on a 66-horsepower Kubota engine that is compliant with Tier 4 Final and European Stave V emissions standards. The standards are achieved by diesel oxidation catalyst and diesel particulate filter.

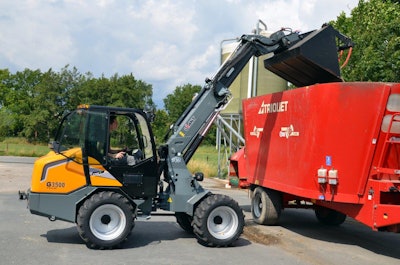

Giant G3500 TeleGiant G3500 Tele

The loaders can travel up to 18.5 mph and have a two-speed gearbox. They also feature hydrostatic four-wheel drive with automotive control. Both 14-ton axles feature a switchable differential lock for maintaining traction in slippery conditions.

The loader comes standard with ROPS/FOPS safety roof that can be extended into an air-conditioned cab. The steering column is adjustable and the seat is air-suspended. Operation is by integrated joysticks. A central LCD display shows such information as oil temperature and regeneration.

Tobroco-Giant placed service points under the hood, the tilting cab or other panels. A variety of attachments are available, with the G3500 X-Tra able to switch to sweeper or snow blades.

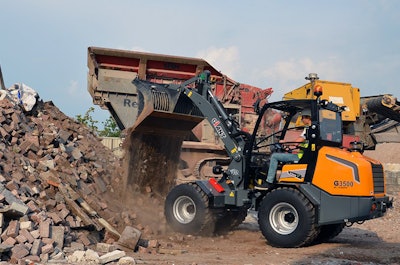

Giant G3500 X-Tra compact wheel loaderGiant G3500 X-Tra compact wheel loader

Quick specs

  Giant G3500 Z-Bar Giant G3500 X-Tra Giant G3500 Tele
Engine type Diesel, Kubota 4 cylinder Diesel, Kubota 4 cylinder Diesel, Kubota 4 cylinder
Emissions Tier 4 Final Tier 4 Final Tier 4 Final
Output 66 HP 66 HP 66 HP
Travel speed 18.5 mph 18.5 mph 18.5 mph
Lift height (hinge pin) 129.6” 106.4” 169.8”
Tipping load 5,070 lbs 8,600 lbs 5,291-1,521 lbs
Rated operating capacity 2,535 lbs 4,300 lbs 2,646-761 lbs
Service weight 7,720 lbs 7,480 lbs 8,690 lbs
