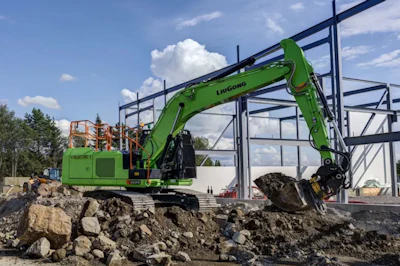

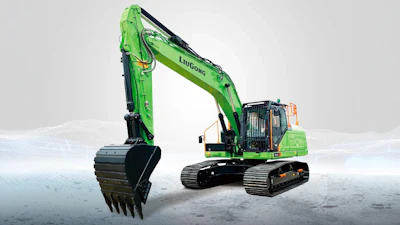

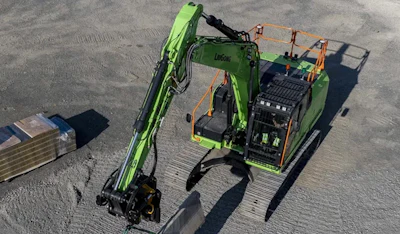

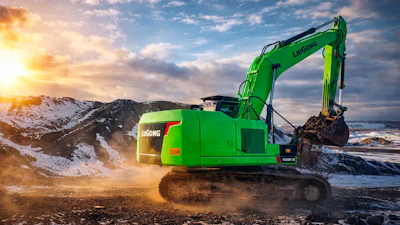

Now it’s bringing more of its electric construction equipment to North America, with the latest being the 27-metric-ton 924FE excavator. The company launched its first EV excavator in international markets in 2020.
The Chinese manufacturer, which claims more than 60,000 battery-electric machines operating globally on active jobsites, says the 924FE can work in the most demanding conditions with zero emissions and low noise.
The excavator’s focus is tunnel construction, with rocky conditions, low oxygen levels and strict emission limits. But its uses can extend beyond that to jobs in crowded urban areas, noise-sensitive neighborhoods, emission-restricted zones and enclosed indoor environments, according to LiuGong.
Because of its quiet operation, it can also be used to work at night.
“The 924FE isn't just an alternative to diesel, it's an upgrade in every sense,” the company says.
The excavator runs on a lithium-iron phosphate battery with 528 kWh capacity. The Weiteli permanent magnet synchronous motor produces the equivalent of 154 horsepower.
The company says the excavator can run 8 to 10 hours on a single charge and can charge from 15% to 100% in under 3 hours.
New from Equipment World
Get fast, free estimate values for your used construction equipment
Access one of the industry's largest resale and auction databases with the new Construction Equipment Valuation Calculator
Its features include “high-efficiency hydraulics, a comprehensively strengthened chassis and rugged reliability,” according to LiuGong.
Along with saving on diesel fuel, the 924FE’s electric powertrain has fewer moving parts, which results in “reduced maintenance requirements” and “a total cost of ownership that outpaces conventional diesel excavators by a wide margin,” the company says.
Other standard features of the 924FE:
Battery Management System that continuously monitors battery health, state of charge, charging, thermal performance, diagnostics and safety systems.
“Optimized bucket” for faster digging.
Upgraded, reinforced boom for full cylinder protection for increased lifespan.
Air-suspension seat with heater, headrest and height adjustment.
Green-tinted laminated cab windows to reduce direct sunlight.
10-inch LCD touchscreen display with integrated control panel and 360-degree bird’s eye camera view of excavator’s surroundings.
Redesigned air conditioning and heating ducts for increased air flow.
Removable front-top window.
Roof window with sliding sun visor.
One-button-operation reverse fan for cleanout.
LED work lights that delay turnoff for the operator to exit area.
Automatic power boost, swing parking brake, travel parking brake, two-speed travel and hydraulic system warmup.
Boom float function.
LiuGong offers the following warranties on its battery-electric construction equipment:
Battery packs, electric-drive motors and hydraulic-drive motors: 5 years or 10,000 operating hours.
Complete machine — 3 years or 4,000 operating hours.
Transmission, axles and hydraulic components — 5 years or 7,000 operating hours.
LiuGong 924FE Electric Excavator Specs
Operating weight: 58,422 – 61,950 lbs.
Battery: 528 kWh lithium-iron phosphate
Runtime: 8-10 hours
Engine: 154 hp Weiteli permanent magnet synchronous motor
Dig depth: 22”
Max dig reach: 32’ 5”
Max Dump height: 23’
Max Bucket digging force: 34,283 lbf
Bucket capacity: 0.56 – 1.57 yd³
Max hydraulic flow: 2 x 60.2 gpm
924FE Video
Check out LiuGong's promotional video of the 924FE below:
