Article Summary
Energreen's ILF Alpha is a self-propelled vegetation management machine featuring three telescopic boom configurations ranging from 26 to 39 feet, a rotating cabin with 90-degree rotation capability, and a 173-horsepower John Deere diesel engine designed for mowing, brush cutting, and roadside maintenance tasks with multiple attachment options.
- Three Telescopic Boom Options: T (26-39 feet), F (36-39 feet for narrow areas) and 3P (32-foot three-piece for canal cleaning)
- Rotating Cabin: 90-degree rotating cabin with optional 180-degree boom rotation for improved visibility and efficiency
- Engine Power: 173-horsepower John Deere 4.5 diesel engine
- Safety Features: FOPS-ROPS certified cabin with soundproofing, air conditioning and stability control
- Versatile Attachments: Compatible with flail heads, forestry heads, barrier mowers, grapples, buckets, stump grinders and more

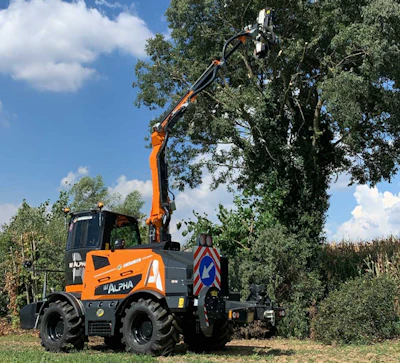

Energreen’s new self-propelled ILF Alpha vegetation management machine comes with multiple boom configurations and a variety of attachments to tackle mowing, brush cutting and roadside maintenance.
Three boom choices, offered in a variety of lengths, allow operators to tailor the machine to their preferences and typical worksite:
Telescopic Boom T: A sturdy and multifunctional boom able to safely work with every kind of attachment. With its compact size and boom lengths ranging from 26 to 39 feet, it is designed for both long distance activity and working in narrow areas on the edge of the street. It can cut branches in a vertical position.
Telescopic Boom F: Ideal for vegetation cutting along roads or in narrow areas, the shape of the F Series boom makes it easy for operators to avoid obstacles, like road signs, as well as cut and prune in a vertical position. It can be equipped with various tools, and 36- or 39-foot boom variations are available.
Telescopic Boom 3P: The 32-foot 3P has a three-piece boom, making it well suited for working with buckets for the cleaning of canals and ditches.
Energreen
Rotating Cabin
The 90-degree rotating cabin with a large windshield and optional 180-degree boom rotation allows operators to precisely place the attachment while maintaining complete visibility to the work at hand. The rotation of the cab also allows the operator to cut the grass in both directions, without rotating the machine and saving time.
It is FOPS-ROPS certified for protection against overturning and falling objects, as well as isolated, soundproofed and air-conditioned for operator safety and comfort.
Three cabin trim levels are available: Standard, Comfort and Prestige.
All models feature the Energreen Control Interface, which includes the new 10-inch color touchscreen display combined with the new Power Track button panel and multifunction proportional joystick. The system lets operators control all the functions of the machine in a simple and intuitive way, the company says, allowing for the customization of the screens, easy surfing inside the display and smooth control of the arm and tool.
The Standard Cabin also includes:
- Grammer Maximo XXL seat with air suspension and adjustable lumbar shock absorber
- Tilting and height-adjustable steering column
- Electronic direction control lever
- Adjustable armrest with Joystick
- Front windshield washer/wiper
- Retractable sunshade on front windshield
- Left mirror
- Height-adjustable LED beacon
- Darked anti-UV rear window, partially openable
- Lateral documents holder
- Automatic LED courtesy lights
- Emergency glass break hammer
- External electrical socket for 12-volt services and internal 12-volt DC socket
- Two-way USB socket
- Clothes hangers
In addition to the Standard Cabin features, the Comfort Cabin gets:
- Cruise control
- Instant reverse pedal
- DAB/Bluetooth stereo
- LED working lights
The Prestige Cabin takes things one step further with:
- Grammer Maximo Evolution Dynamic Seat with larger seat dimensions, air suspension system, longitudinal shock absorber, side suspension, lumbar shock absorber and active climate control system
- Reverse camera (integrated view in the ECI)
- Twin LED beacon
- Porthole with grille, curtain and windscreen wiper
- Windshield wiper on the right side
- Fire extinguisher
The ILF Alpha is powered by a 173-horsepower John Deere diesel engine, designed for power and fuel conservation. All daily check points, including the engine compartment, diesel, oil and DEF filling ports and filters, are accessible at ground level.
The Stability Control Device locks the front axle oscillation, increasing the stability of the machine for improved performance and safety The four-wheel-drive traction system features three driving modes: two-wheel drive, four-wheel drive and crab mode.
A wide range of attachments, including flail heads, forestry heads, barrier mowers, grapples, buckets, stump grinders and more, are available.
Energreen ILF Alpha Vegetation Management Machine Specs
- Engine: John Deere 4.5 4045CI
- Horsepower: 173 hp
- Hydraulic Flow: 42 gpm
- Cabin homologation: ROPS - FOPS
- Rotating cabin: Up to 90°
- Joystick: Electronic
- Transmission: Hydrostatic
- Traction: 2x4 / 4x4
- Drive speed variation: 0 - 24 mph
- Manual gearbox: 2 gears
- Machine weight without equipment: 30,423 lbs
