Terex Trucks intros upgraded TA300 artic with new transmission, faster speed, better fuel efficiency

Me Photo Headshot
Updated Aug 18, 2018

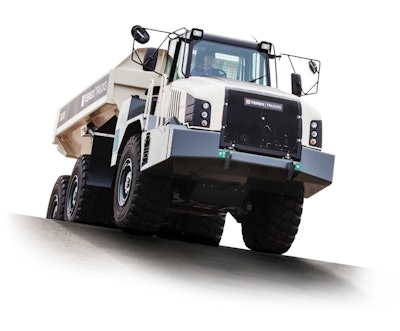

Terex Trucks TA300


Terex Trucks has boosted fuel efficiency and speed on its TA300 articulated dump truck and added a new transmission through a partnership with ZF.

The 10th generation 30-ton hauler now comes standard with ZF’s latest EP320 transmission, which brings a 5 percent improvement in fuel efficiency over the previous model. The company also boosted the truck’s overall speed from 31 mph to 34 mph to help increase productivity. The truck is powered by a 370-horsepower Tier 4 Final Scania DC9 engine, which does not require a diesel particulate filter. The truck bed has a heaped capacity of 22.9 cubic yards.

The transmission consists of eight forward gears and four reverse gears. It features automatic shifting with manual over-ride, a hydraulic integral retarder and a hydraulic power-shift longitudinal differential lock. For smoother shifting, the transmission has a higher overall gear ratio speed, equal ratio steps between gears and optimized gear shifting with partial lift loads, the company says.

“Developing and testing the new EP320 transmission for the TA300 was a collaborative effort between Terex Trucks and ZF,” says Scott Pollock, product manager at Terex Trucks. “The new transmission has been calibrated specifically for the TA300 and rigorously tested for two years internally and by operators on real jobsites, working in a variety of conditions.”

The TA300 also comes standard with independent front suspension, which enhances traction control. All six wheels have fully enclosed, oil-cooled, multi-disc brakes.

The cab is pressurized and has a high-performance heating and air conditioning system, the company says.

Terex also boosted transmission oil service intervals from 1,000 to 4,000 hours. Service points have been placed at ground level. The electronically raised hood and fully tilting cab also make maintenance easier, the company says.

The TA300 comes standard with Terex Trucks’ web-enabled telematics system. The truck is scheduled to be available in North America in August.
