Cat unveils redesigned 730, 730 EJ and 735 articulated dump trucks

Updated Jun 23, 2020

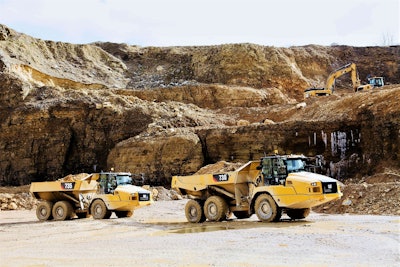

Cat 730 735 Articulated Dump Trucks

Cat has introduced revamped models of its 730 and 735 articulated dump trucks which include a new operator station, new engine and a few features first seen on the new 745 unveiled at ConExpo last year. As was started with the new 745 last year, the 730 and 735 no longer a carry a suffix to denote the machine generation. Cat now keeps track of model generations with a Build Number. You can read more about that change here.

On the new 735, Cat has replaced the 441-horsepower C15 ACERT with the 428-hp C13 ACERT. The 730 and 730 EJ (in this case, the EJ suffix denotes Ejector) also use this engine and are rated at 367 hp. Full specifications are below.


Quick Specs

Click to enlarge.Click to enlarge.

Cab redesign adds comfort

Cat 735 Articulated Dump Truck

The new cab found on the 730, 730 EJ and 735 trucks is a “spinal-ROPS” design that provides more visibility to the rear through a new rear-quarter glass. The new glass eliminates the structural pillar found on the previous generation C-Series models of these trucks. As an available option you can replace the rest of the cab’s glass with an infrared variety that reduces solar heating inside, making for more comfortable operation. The cab also features left- and right-hand sliding windows for increased ventilation and easier communication with workers on the jobsite.

Further design enhancements aimed at operator comfort include a new automatic climate control system with more vents, a new heated/cooled seat and a new flip up/down passenger seat with more cushioning. The new cab also features a “wake up” feature which turns on the trucks’ displays whenever the door is opened. The new door is easier to open as well thanks to a lighter design and a shut-assist feature that also provides improved sealing against dust.

Cat says the cab is 7 decibels quieter compared to the C-Series models with sound levels of 72 dB during operation.

The exterior of the cab has undergone some changes as well. The trucks feature an improved flexible lower fender and a low-profile exhaust stack that doesn’t need to be removed for transport.



Operation and controls

The transmission-and-hoist lever as seen on the 745. Photo: CatThe transmission-and-hoist lever as seen on the 745. Photo: Cat

First seen on the 745, Cat is bringing a new version of its combined transmission-and-hoist lever to the new 730 and 735 trucks. This lever gives operators single-lever control over truck speed and body-hoisting functions, automating repetitive operations. Operators can choose between manual or fully automatic assisted hoisting control with the flip of a switch. This control automatically applies the waiting brake, sets the transmission in neutral and hoists the body to the maximum angle at high rpms. A push-button lever control lets the operator set the machine speed and transmission hold/waiting brake. Directional gear shifting protection brings the machine safely to a stop when transitioning from forward to reverse and vice versa.

Partner Insights
Information to advance your business from industry suppliers

The new lever also includes a parking position. A tertiary brake switch will set the parking brake in the unlikely event of main and secondary braking malfunction.

Cat has also added its Advanced Automatic Traction Control system. This system avoids wheel spin by proactively applying differential locks. The trucks avoid acceleration surges when traveling over rough terrain through a throttle-smoothing system. A Detect/Stability-Assist system monitors the working angle of the truck along with the grade and “cautions the operator if the machine is approaching the set threshold angle,” Cat says. If there’s a possibility the truck may tip, the system will stop the dump process.

The trucks also feature a new lighting system controlled via a ground-level switch. The new system illuminates the can’s entry steps and hitch area. Integrated payload lights are an available option and provide external payload level indicators for loader operators.

Cat Connect Payload technology is another available option. Connect Payload calculates payload via sensors on the trucks’ walking-beam suspension while load-status lights on all four corners alert loader operators to payload status.
