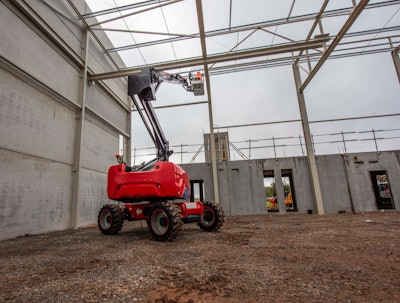

Manitou launched its tallest articulated boom lift for North America last year, and now the company has rolled out an all-electric version.
The new ATJ60E runs on lead-acid batteries, instead of the 42.9-horsepower diesel engine in its ATJ60 articulated boom work platform.
With far fewer components than a machine powered by an internal combustion engine, the electric-drive ATJ60E substantially reduces maintenance costs, the company says.
Two asynchronous, maintenance-free motors drive the ATJ60E. An integral charger is located on the turret, and the machine recharges on a standard 230-volt plug. Manitou said it chose lead-acid batteries due to their low replacement cost and recyclability. According to the company, the batteries can be cycled and recharged up to 1,500 times.
The ATJ60E offers a basket capacity of 507 pounds, a working height of 65 feet 7 inches and a platform height of 59 feet 7 inches. Up-and-over reach measures 26 feet 3 inches.
It comes with solid, non-marking tires and weighs 15,653 pounds. The axles offer a maximum tilt of 4 degrees longitudinally and laterally. High ground clearance, four-wheel drive and the active oscillating axle enable stability off road and over uneven terrain.
In the front of the basket, a large color monitor displays information. Basket-overload and tilt sensors provide audible and visual warnings when operators push the machine past safe operating parameters. The monitor also gives the operator a reading on how much time is left on the battery. A one-point slinging design without a spreader bar makes loading and transport faster and easier, the company says.
