Case intros CX145D SR excavator with more power, improved cab

Updated Aug 25, 2017

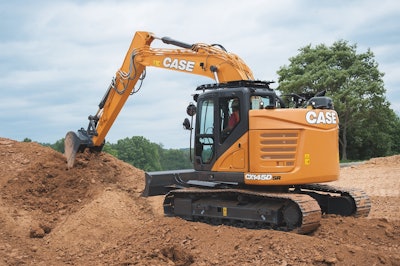

Case Cx145 D Sr 2

Case has expanded its D Series lineup of full-size excavators with the introduction of an updated minimum-swing model, the CX145D SR.

Powered by a 102 horsepower Tier 4 Final (T4F) engine, the CX145D SR has an operating weight of 32,100 pounds and delivers bucket digging forces up to 21,400 lb.-ft. and lift capacities up to 21,350 pounds. Case says the machine’s engine is a maintenance-free T4F solution requiring no diesel particulate filter (DPF) or regeneration. The engine instead implements a combination of selective catalytic reduction (SCR), cooled gas exhaust recirculation (CEGR) and diesel oxidation catalyst (DOC) technologies to meet emission regulations.

Case says the machine boasts faster cycle times thanks to improved breakout forces and more lifting strength made possible by a new electronically controlled pump, larger control and solenoid valves and multiple sensors. These upgrades combine with Case’s Intelligent Hydraulic System which is made up of four control systems that work to optimize hydraulic power on the fly.

The IHS is made up of the following systems: Boom Economy Control (cuts RPMs via boom down and swing gravity); Auto Economy Control (cuts RPMs during idle and shuts the engine down from a present idle time; Swing Relief Control (cuts hydraulic power when starting swing); and Spool Stroke Control (changes hydraulic pressure when digging).

Plus, the CD145D SR re-uses hydraulic fluid whenever possible, providing further increases to cycle times. And further efficiency gains are possible if the operator takes advantage of the machines’ three working modes: Speed Priority, Heavy Duty and Automatic.

The machine’s cab features a Bluetooth radio, adjustable operator station with a heated air-ride seat, standard rear and side view cameras and a 7-inch widescreen display that displays real-time operation data including fuel consumption, operating hours and other machine information.

Other standard features include Free Swing for craning, laying or lifting of offset loads; oil sample ports and a pattern selector for ISO or SAE controls.

Partner Insights
Information to advance your business from industry suppliers
8 Crucial Elements of a Tire Safety Program
Presented by Michelin North America
How High Fuel Prices hurt Your Business
Presented by EquipmentWatch
Selecting the Correct Construction Tire Solution
Presented by Michelin North America

Available options include a dozer blade configuration, Case Max View Monitor (providing 270 degrees of visibility) and a choice of either steel or rubber tracks. A new six-lamp LED lighting package is also available and provides three times brighter illumination than halogen lights.
