Caterpillar’s new Tier 4 Final M Series 3 motor graders boost fuel efficiency

Updated Feb 7, 2014

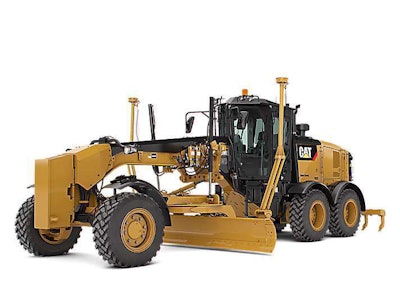

Caterpillar M Series 3 motor graders 3

Save fuel and reduce emissions with the latest M Series 3 motor graders from Caterpillar—the 12M3, 140M3, 160M3 and their all-wheel-drive counterparts.

The EPA Tier 4 Final machines use Caterpillar’s aftertreatment solution and Selective Catalytic Reduction using Diesel Exhaust Fluid that can be filled from ground level when the machine is fueled.

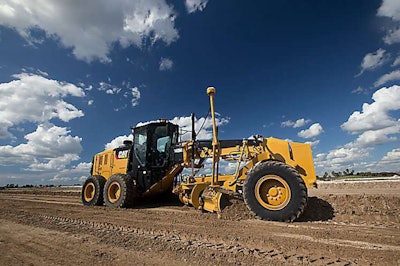

Caterpillar M Series 3 motor graders 2The graders have a standard economy (ECO) mode that reduces engine speed for fuel efficiency, deliver a fuel savings of up to 10 percent compared to previous models.

Cab features include Cat’s electronic joystick controls that reduce arm movement by 78 percent; a redesigned message display in the center console; new storage bins and a DEF tank level gauge. Available options include heated and ventilated seat; seat belt indicator light and LED lights that make it easier to service the machine in low light conditions.

M Series 3 motor graders are equipped with Product Link, allowing fleet owners to track location, hours fuel usage, productivity, idle time and diagnostic codes through the online VisionLink interface. Cat Grade Control Cross Slope and Cat AccuGrade are available as options.

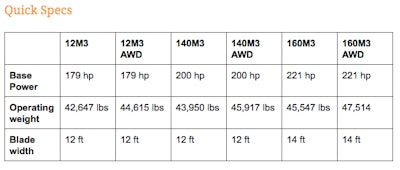

Screen Shot 2014-02-06 at 8.21.11 AM
