Vacuum Systems

By Lauren Heartsill Dowdle

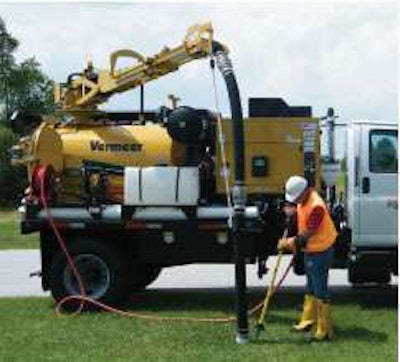

Copy Untitled 1Use both air and water systems in McLaughlin Group’s Xtreme line vacuum excavators, marketed by Vermeer.

• Features a 1,200-cfm positive displacement blower

• Powered by a 99-horsepower Kubota diesel engine and a 5.6-gpm water system

• Produces up to 15 inches of mercury and 3,000 psi of water pressure.

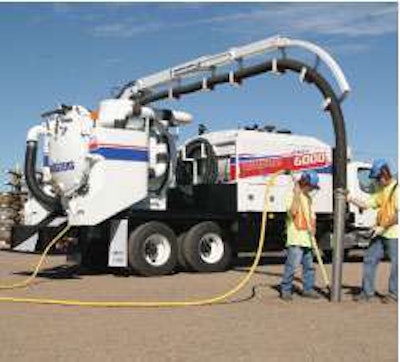

Vacmasters’ System 6000 air-vacuum excavation system uses supersonic air from a Self Purging Untitled 1proprietary nozzle to dig, trench and pothole in various soil types.

• Components are powered by an enclosed John Deere, 250-horsepower diesel engine

• Features a self-purging filtration system

• Remote operation up to 200 feet away.




Choosing the right system

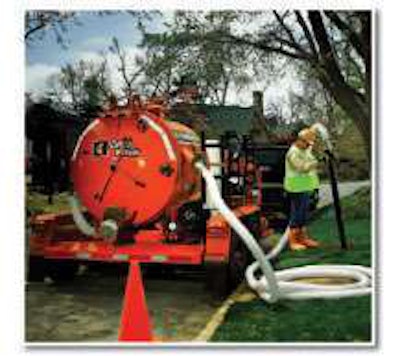

With a variety of vacuum system models available, compare these features to find the one Choosing Untitled 1that best suits your application:

• Horsepower and torque curve of the power unit

• Type of positive displacement pump or blower used to create vacuum

• Capacity of pump or blower (in cubic feet per minute, or cfm)

• Speed and filtration of air flow through the system

• Pressure and gallons-per-minute (gpm) of water pump

• Nozzle configuration of the excavation tool

• Size and weight of the unit when empty

• Weight of the unit when holding tank is full

• Capacity of the vacuum holding tank

• Sound level during operation

• Capacity of the water supply tank on water models or dust-filtering systems on air units

Source: Ditch Witch

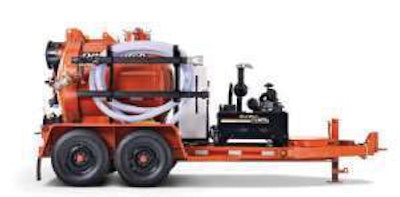

Perform potholing, valve box and utility vault cleanout with the Ditch Witch FX25 vacuum Economy Size Untitled 1excavation system.

• Equipped with a 500-gallon spoils tank

• Options include 80- or 200-gallon water system with 3,000-psi water pressure

• Powered by a 31-horsepower Briggs and Stratton Vanguard gas engine.

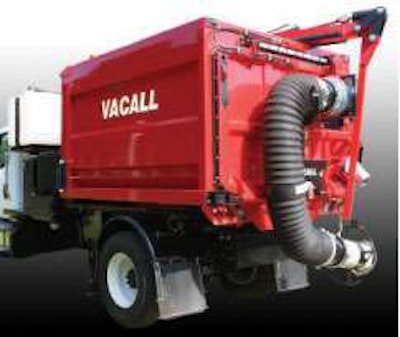

Equipped with a single engine and a rugged reinforced steel debris tank, Vacall’s AllCatch Tailgate Design Untitled 1removes debris such as wet or dry leaves, asphalt, litter, stones and rocks from roadside curbs and catch basins.

Partner Insights
Information to advance your business from industry suppliers

• Features a tailgate design with a hose and boom that fold against the rear of the machine

• High-capacity water system has a 600-gallon capacity with a spray wand for cleaning

• Has an AllSmartFlow CAN bus control system.
