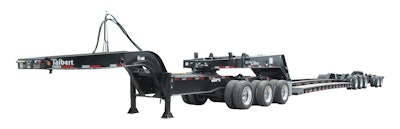

Located at Booth F5504 in the Festival Grounds at ConExpo, Talbert Manufacturing will show its new 65SA modular trailer, featuring a 3+3+2 configuration, raised-center version of the model.
(You can see more of what OEMs have in store for ConExpo 2020 in our show preview page by clicking here.)
Incorporating a variety of custom multiple axle configurations, the 65SA has a flip extension to accommodate a tandem- or tri-axle jeep dolly, allowing for maximum load configurations. The trailer can also be paired with Talbert’s E2 or E3Nitro axle extension, which dampens axle movement and controls load transfer.
The trailer’s customized axle configurations include 2+3+2, 3+3+2 or other variations. For example, adding a tri-axle jeep allows a 3+3+3 configuration. Featuring 60.5-inch axle spacing, as well as an airlift on axle 3 and a chain lift on axles 1, 2, 4 and 5, the trailer is capable of running with 3, 4, or 5 axles in a row without a booster.
The base model offers a 120-inch swing radius with connections for up to 70-inch gooseneck extension and can be custom-designed to provide a larger swing radius if necessary.
Offering a 28-foot deck length, the trailer is rated for 65 tons in a 13-axle configuration. Capacity increases to 70 tons in 15 feet with a 4-axle close-coupled configuration. The trailer can also be designed to accommodate an additional 10- or 15-foot section of deck, varying in type from beam to drop side.
