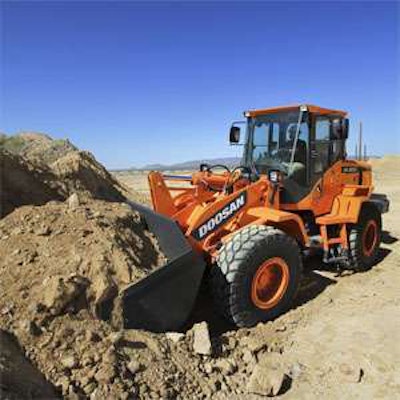

The upgraded interim Tier 4-compliant (iT4) DL200 and DL220 offer increased horsepower and performance improvements that enhance its capabilities for moving materials in highway, street and paving projects, as well as building, site development and livestock production applications.
More power and greater fuel efficiency
The 2.6-cubic-yard DL200 has been relaunched as a 160 horsepower iT4 wheel loader. It is engineered with a breakout force of 22,230 pounds, a full-turn tipping capacity of 17,110 pounds and a dump height of 9 feet 6 inches. For those requiring additional dumping capabilities, the DL200 is also available in a high-lift configuration, extending the dump height 15 inches above the standard DL250, to 10 feet 9 inches.
The 3.0-cubic-yard DL220 has been re-engineered as a 160 horsepower iT4 wheel loader. It provides operators with a breakout force of 23,650 pounds, a full-turn tipping capacity of 18,480 pounds and a 9-foot-3-inch dump height.
Both Doosan wheel loaders are equipped with 6-cylinder diesel engines that have been optimized for use with a cooled exhaust gas recirculation (CEGR) system, a diesel oxidation catalyst (DOC) and a diesel particulate filter (DPF). Engines with this configuration are optimized to reduce nitrogen oxides (NOX) and after-treatment is needed to reduce particulate matter, to comply with iT4 emission regulations. The turbocharged engines feature a high-pressure common-rail (HPCR) design with direct fuel injection, electronic control and four valves per cylinder.
This wheel loader’s new auto-idle feature provides additional noise reduction and fuel savings by reducing the working idle of the wheel loader from 950 rpm to a standby idle setting of 750 rpm when the machine is inactive for a short period of time.
Increased performance
Designed with improved lifting performance, the DL200 and DL220 offer operators the ability to set upper and lower limits for both the lift arm and bucket stop positions from inside the cab. Better lifting capabilities improve cycle times in digging and loading applications, while providing better control of the lift arm and bucket positions. An optional fourth spool control valve provides operators the capability to utilize an attachment that requires an additional hydraulic function, e.g., some snow blowers and snow blades.
To keep the wheel loader running at optimal performance in dirty and dusty conditions, the DL200 and DL220 incorporate a new automatic-reversing cooling fan. The operator can select to reverse the fan via a switch, or it can be set to automatically reverse on a preset time frame. Each time the fan reverses, it will run in reverse for a few minutes to clean the cooling system. This results in longer working hours and shorter maintenance time to clean the cooling system.
Operators can also expect upgraded driving performance options. As an alternative to the standard limited slip differential, the DL200 and DL220 offer an optional hydraulic locking front differential. Based on ground conditions, the operator can choose to lock the differential manually with a floor-mounted foot switch, or allow the machine to automatically engage the system. This provides increased driving power when one wheel spins or loses traction and improves machine performance when navigating tough terrain.
The 542-cubic-inch engine increases the efficiency of fuel delivery via increased pressure. The increased pressure allows the injector to inject a finer mist into the engine, which results in a more efficient combustion that in turn produces more torque and improved fuel economy, less noise, lower operating costs and cleaner exhaust.
Service intervals on the front lift arm pins have increased fivefold, from 50 to 250 hours, reducing operating costs and downtime. Tilt cylinder hydraulic hoses have been rerouted for improved hose reliability, better hose movement and improved visibility to the attachment.
Enhanced comfort
Interior cabin improvements also include a number of multi-function display panel upgrades on a centralized monitor that allows the operator to view comprehensive machine system information. The centralized monitor displays critical machine information ─ such as engine rpm, engine coolant temperature, fuel level, machine warnings, time and the transmission selected gear. A key exterior cabin improvement is lowered front side glass, providing improved visibility of operations. A new door threshold makes getting in and out of Doosan wheel loaders — and cleaning the inside of the cab — much easier.
The DL200 and DL220 — like every new Doosan machine — are covered by an innovative 48 hour parts guarantee. The program guarantees that if a “machine-debilitating” part is needed, Doosan will deliver it directly to the end user within two business days or Doosan will pay for a replacement machine rental. The 48 Hour Parts Guarantee is subject to carrier delivery restrictions and/or governmental agency delays.
ABOUT DOOSAN INFRACORE CONSTRUCTION EQUIPMENT AMERICA
Doosan Infracore Construction Equipment America, headquartered in West Fargo, N.D., markets the Doosan brand of products which includes large excavators, wheel loaders and articulated dump trucks. With more than 160 heavy equipment dealer locations in North America, Doosan is known for an unmatched dedication to service and customer uptime, and durable, reliable products. Doosan is fast becoming a global force in heavy construction equipment. For more information on Doosan products, visit www.doosanequipment.com.
QuickLook: Doosan DL200 wheel loader
• Horsepower: 160 hp
• Operating weight: 26810 lb.
• Bucket capacity: 2.6 cu. yd.
• Dump height: 9 ft. 6 in.
• Breakout force: 22230 lbf.
QuickLook: Doosan DL220 wheel loader
• Horsepower: 160 hp
• Operating weight: 28350 lb.
• Bucket capacity: 3.0 cu. yd.
• Dump height: 9 ft. 3 in.
• Breakout force: 23650 lbf.
