For Wayne Dowd, W. Dowd Excavating, Wind Gap, Pennsylvania, it’s how the Case 580 Super N backhoe stacks up against two competitive machines.

One competitive machine is “not as nimble or balanced” as the 580; another machine is “too big and bulky, with a large boom where you can’t get in and out without making all kinds of turns,” Dowd says.

In comparison, with the 580, he can “zip around the jobsite. The maneuverability is just not comparable with the other machines. I‘m just comfortable.”

SOUND OFF: Agree with the score? Disagree completely? Leave your own feedback on the 580 Super N in the comments below.

In comparison to Dowd, who uses his machine regularly, Gerald Karr with Folsom Well Service, Folsom, New Mexico, doesn’t use his 580 every day. “I can run it for three days straight and then it will sit for weeks,” he says.

Karr is glad for the joystick pilot controls on his machine, even though he says they don’t give him the feedback of his former sticks. “I hit some water lines I know I wouldn’t have hit before because I would have felt them. Still, the joysticks are super comfortable and I wouldn’t go back. I can sit wherever I want and bring the joysticks to me. On my old 580D I had to hunker over the controls and I was just beat at the end of the day.”

Another thing Karr had to get used to in comparison with his old machine: needing another person to guide him back on to a trailer. “I can’t see right down like I used to, but the only time I really need it is when I’m loading, so I’ve learned to adapt,” he says.

Dowd appreciates the machine’s side lights. “We’re out there, no matter what kind of weather and the lights are big improvement.”

Here’s how our seven reviewers scored the Case 580 Super N. All ratings are given on a scale from 1 to 10, which 10 being the best possible score and 1 being the worst possible score. The reviewers were chosen from Equipment World readers and were verified as owners of this machine by Equipment Data Associates, a division of Randall-Reilly.

Serviceability (show/hide) »

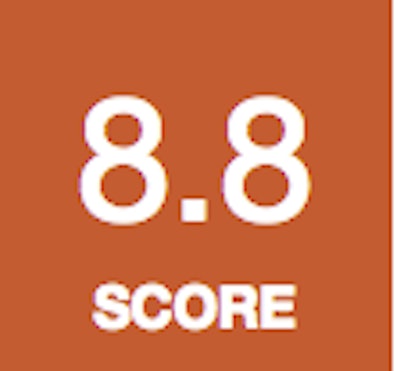

Screen Shot 2017 06 26 At 3 18 25 Pm

PROS

Our seven respondents particularly liked the machine’s fuel capacity, giving it a 9.3. Says Karr: “On my previous machine, when I was out all day, I had to bring along a fuel can. This lasts all day.”

The only serviceability item that scored noticeably lower on the Case 580 Super N was “access, ease of preventive maintenance/500 hour service.” This item scored 8.3 while the remaining serviceability features had an average score of 8.9.

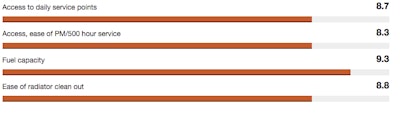

Screen Shot 2017 06 26 At 3 18 32 Pm

Performance (show/hide) »

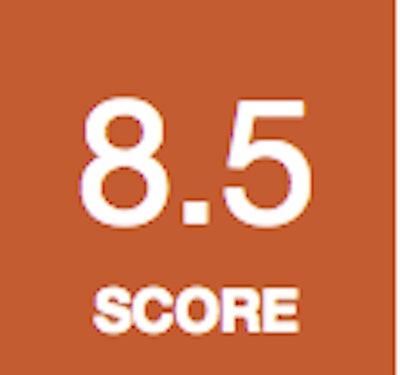

Screen Shot 2017 06 26 At 3 19 56 Pm

PROS

While respondents were happy with the fuel capacity of the Case 580 Super N, they weren’t as impressed with its fuel efficiency or travel speed, which at 7.9 scored noticeably lower than other performance features. “We road the machine often and it’s slow on hills. A little more road speed would be nice,” Dowd says. Karr has a different perspective, however: “I like the transmission a lot; everything seems peppy. When roading in 4th gear, the machine keeps the engine rpms down and every rpm leads to wear.”

Dowd also cites the hydraulics and fast cycle times. “It’s a smooth machine and I can get back into a hole with no jerkiness.”

Backhoe lift capacity — a key performance indicator — came in at a high 9,0, as did backhoe bucket height and reach, the push-button diff lock controls, and balance over stabilizers.

“I’ve tried others,” says one reviewer, “and for what we do, the machine works well. We have the PowerLift, but don’t really use it.”

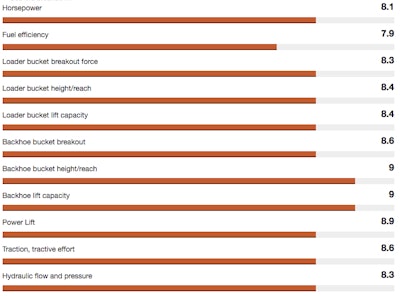

Screen Shot 2017 06 26 At 3 20 10 Pm

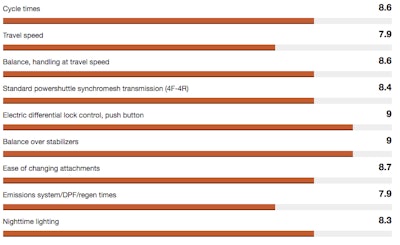

Screen Shot 2017 06 26 At 3 20 21 Pm

Operator features (show/hide) »

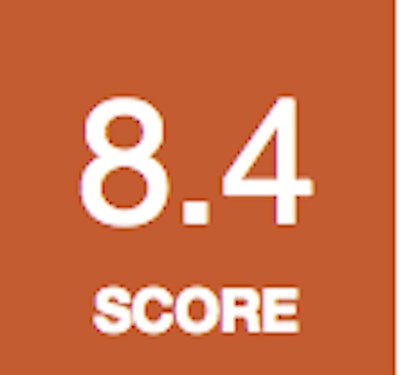

Screen Shot 2017 06 26 At 3 22 09 Pm

PROS

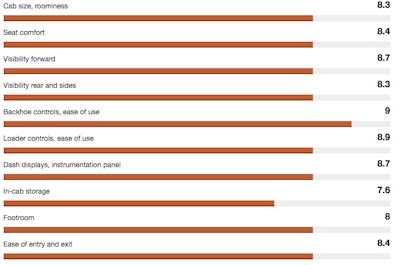

Respondents clearly dinged the machine on its in-cab storage room, giving it a 7.6 score. This included Dowd, who was also pragmatic. “The in-cab storage is limited, but it’s a work tool, not a hotel room,” he says. The cab’s foot room only came in slightly better at 7.9.

What respondents seemed to appreciate, however, was much more important than interior cab space: the ease of use of backhoe controls (9.0 score) and loader controls (8.9). Respondents also liked the forward visibility (8.7) and the dash displays/instrumentation panel (8.7).

Some other comments: “I don’t like the swing out side windows – bad visibility.”

Screen Shot 2017 06 26 At 3 22 16 Pm

Machine options (show/hide) »

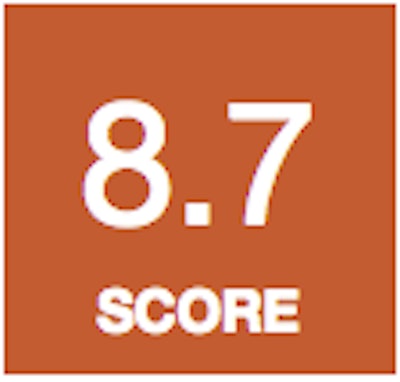

Screen Shot 2017 06 26 At 3 23 31 Pm

PROS

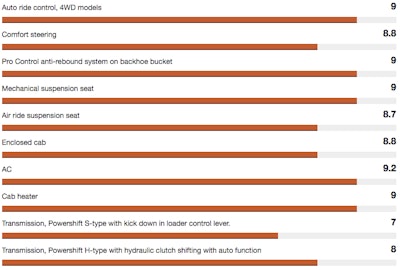

It’s clear backhoe owners like options, especially those geared toward operator comfort and performance. The most popular, chosen by all of the respondents, were a cab heater and hydraulic leveling loader bucket.

Popular creature comforts include an air ride suspension seat, enclosed cab and air conditioning. Respondents also opted for auto ride control and a rear-axle heavy duty outboard planetary drive with 19.5L x 24 tires.

And those who chose auxiliary backhoe unidirectional hydraulics and ride control rated them highly, giving them a 9.5 score. “We ordered a machine with factory installed auxiliary hydraulics and got one with aftermarket hydraulics that did not fit or work correctly,” Dowd says. “I finally got a machine with factory hydraulics, and they work fine.”

Screen Shot 2017 06 26 At 3 23 40 Pm

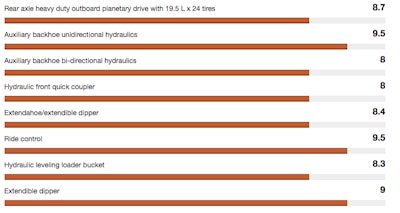

Screen Shot 2017 06 26 At 3 23 54 Pm

Dealer/service (show/hide) »

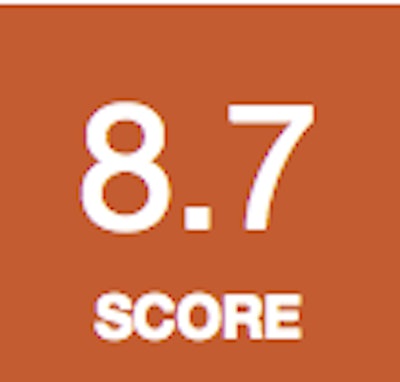

Screen Shot 2017 06 26 At 3 25 29 Pm

PROS

Since dealers are so integral to the equipment ownership experience, we asked respondents to rank their dealers in four key areas: support after sale, parts availability, warranty and their dealer representative.

The Case dealers who serviced our respondents came out looking great, receiving the second highest overall score.

“There’s one parts guy at my dealer who’s the best I’ve dealt with,” Karr says. “He’s very knowledgeable. When I wanted to get my old machine in tip-top shape, he helped me get the parts I needed.”

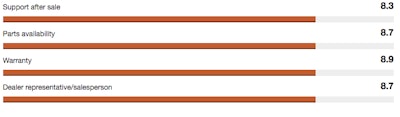

Screen Shot 2017 06 26 At 3 25 37 Pm

Other comments

Dowd doesn’t trust the clevis location on the machine. “It shattered on me, and it was lucky one of my men didn’t get hurt. Case changed the location, but I don’t use it because of that failure,” he says.

  • “I only own Case backhoes; you need not ask about any other,” said a reviewer who runs a backhoe service in California and has put 1,800 hours on his machine, the highest of all of our reviewers.
  • When asked which backhoe features were most important, one reviewer said, “Operator comfort, power and smoothness of operation.”
  • “I’m thoroughly thrilled with the machine,” Karr says. “I definitely recommend it.”
*** Individual reviews (show/hide) ***

Individual reviews

We found our reader reviewers through Randall-Reilly’s Equipment Data Associates division, which tracks financed purchases of construction equipment, and verified each reviewer owned a Case 580 Super N. There was a broad range on the number of hours these buyers had put on the machine but all machines had been purchased between January 2013 and January 2014.

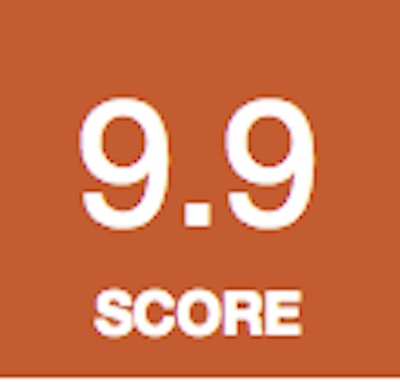

Screen Shot 2017 06 26 At 3 29 21 Pm

Wayne Dowd, W. Dowd Excavating, Wind Gap, Pennsylvania (show/hide) »



PROS

Hours on machine at time of review: 2,737
Markets: Utility, water service, general excavation

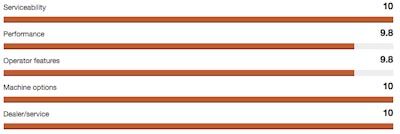

Screen Shot 2017 06 26 At 3 29 28 Pm

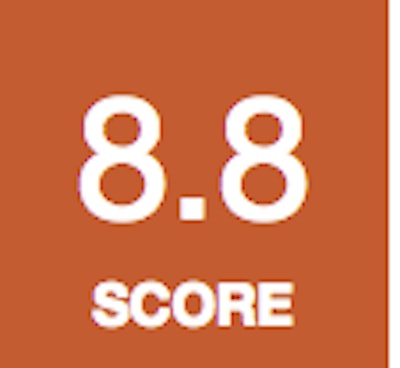

Screen Shot 2017 06 26 At 3 30 57 Pm

Gerald Karr, Folsom Well Service, Folsom, New Mexico (show/hide) »



PROS

Hours on machine at time of review: 250
Markets: Water well work

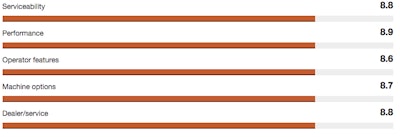

Screen Shot 2017 06 26 At 3 31 07 Pm

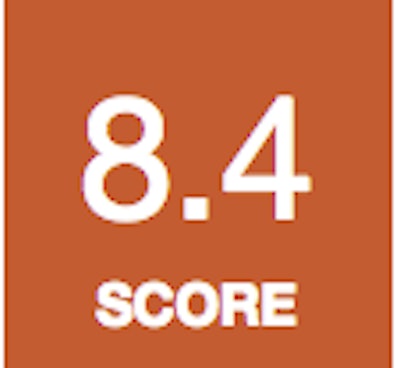

Screen Shot 2017 06 26 At 3 32 19 Pm

Missouri backhoe service contractor (show/hide) »



PROS

Hours on machine at time of review: 360
Markets: Commercial and custom work

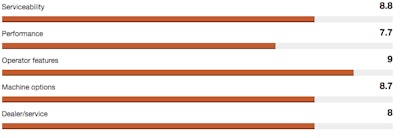

Screen Shot 2017 06 26 At 3 32 24 Pm

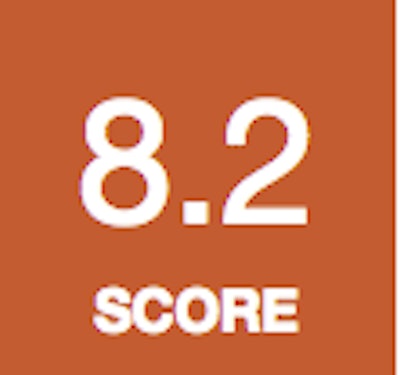

Screen Shot 2017 06 26 At 3 33 57 Pm

California backhoe service contractor (show/hide) »



PROS

Hours on machine at time of review: 1,800
Markets: Site preparation, plumbing, heating and air conditioning

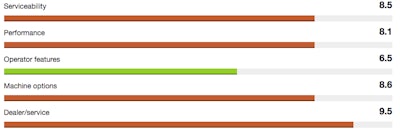

Screen Shot 2017 06 26 At 3 34 08 Pm

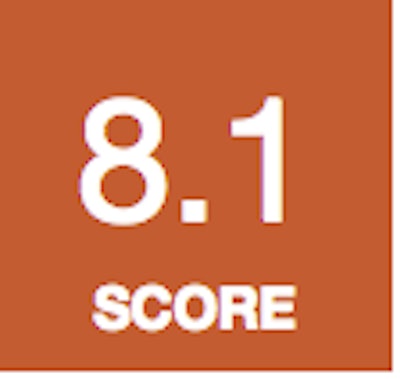

Screen Shot 2017 06 26 At 3 35 16 Pm

Indiana excavating contractor (show/hide) »



PROS

Hours on machine at time of review: 640
Markets: Excavating

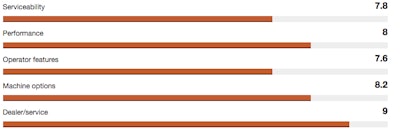

Screen Shot 2017 06 26 At 3 35 35 Pm

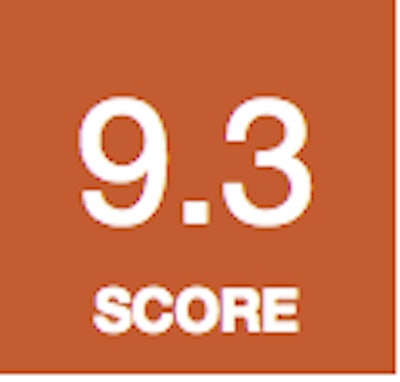

Screen Shot 2017 06 26 At 3 37 11 Pm

Texas excavating contractor (show/hide) »



PROS

Hours on machine at time of review: 200
Markets: Excavation, single-family housing

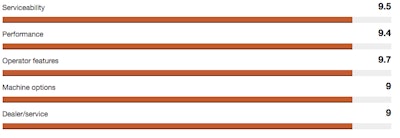

Screen Shot 2017 06 26 At 3 37 17 Pm

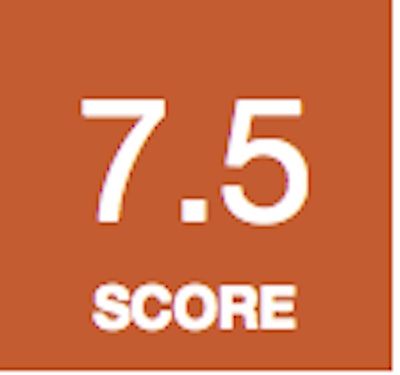

Screen Shot 2017 06 26 At 3 38 39 Pm

Arkansas heavy contractor (show/hide) »



PROS

Hours on machine at time of review: 960
Markets: Railroad construction, heavy and civil engineering construction

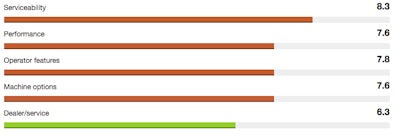

Screen Shot 2017 06 26 At 3 38 45 Pm

About the 580 Super N

Introduced in 2010, the Case N series of backhoes represented a substantial reworking of the model. The series includes four machines: our review machine, the 580 Super N; the 580N, 580 Super N WT (wide track) and the 590 Super N. The 14-foot-class, 91-horsepower 580 Super N model replaced the 580 Super M Series 3.

Notable changes to the lineup included a PowerLift feature that boosts the muscle to the backhoe bucket as much as 65 percent when digging in frost, clay, or root bound soils and when lifting or craning heavy objects.

Powershift H-type and Powershift S-type transmissions enable you to shift from the column. A kickdown feature is standard and what Case calls the SmartClutch lets you customize the transition from forward to reverse for smoother direction changes. The backhoe also has a ProControl anti-rebound system as an option that reduces side-to-side jerking when bringing a loaded backhoe bucket to a stop.

The geometry of the loader arm was redesigned to increase breakout force and reach to the center of dump trucks along with increasing lift capacity 36 percent.

A redesigned cab has floor-to-ceiling windows and new rear quarter windows for shout outs behind you. The high intensity lighting package provides overlapping illumination and the side lights can be rotated 45 degrees for focused lighting.
