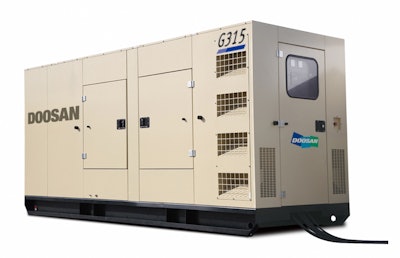

Doosan G315Doosan Portable Powerâs four new diesel generators designed for rental, construction and specialty applications are specifically targeted for the Asia-Pacific, Middle East and African markets experiencing growth in not only construction, but also mining, oil and gas exploration.
The lineup, which includes the G90WCU-1E-T1, G125WCU-1E-T2, G200WCU-1E-T1 and G315WCU-1E-T2 models, feature prime power ratings of 90kVA/72kW, 125 kVA/100 kW, 200 kVA/160 kW and 315 kVA/252 kW, respectively.
The units have Tier 1 and Tier 2 Cummins turbocharged engines and include noise reduction and safety features, as well as easily accessible maintenance points. For user-friendly operation, the generators have an analog control panel with a one-push start-stop button and standard remote start-stop control. Each generator provides a minimum of 12 hours runtime before refueling.
Quick specs:
|
Model |
G90 |
G125 |
G200 |
G315 |
|
Engine |
Cummins 6BT5.9-G2 |
Cummins 6BTAA5.9-G2 |
Cummins 6CTAA8.3-G2 |
Cummins QSM11-G2 |
|
Emissions Rating |
Tier 1 |
Tier 2 |
Tier 1 |
Tier 2 |
|
Prime Power Rating (kVA)
|
90 |
125 |
200 |
315 |
|
Voltage |
400V-3Ă |
400V-3Ă |
400V-3Ă |
400V-3Ă |
|
Frequency (Hz) |
50 |
50 |
50 |
50 |
|
Length (mm) |
3150 |
3150 |
3552 |
4126 |
|
Width (mm) |
1200 |
1200 |
1300 |
1460 |
|
Height (mm) |
1310 |
1310 |
1540 |
1688 |
