Terex intros R350T/Forestry compact track loaders to smoother ride Gen2 lineup

Updated May 12, 2016

Terex is expanding its Generation 2 lineup of skid steers and compact track loaders once more with the addition of the company’s largest CTLs.

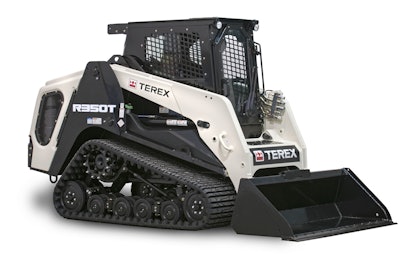

The radial lift R350T and R350T Forestry are powered by a Tier 4 Final Cummins QSF3.8 engine providing 120 horsepower and 360 lbs.-ft. of torque.

With a 6-foot profile, 15 inches of ground clearance and low ground pressure of 4.4 psi on the R350T and 4.3 psi on the Forestry model, Terex says these loaders are designed for work in limited access areas and on soft surfaces.

The R350T weighs in at 11,265 pounds and has a rated operating capacity (ROC) of 3,535 pounds at 35 percent tipping load capacity. Tipping load is 10,100 pounds and lift height is 125 inches.

Weighing in at 12,255 pounds, the Forestry model has a rated operating capacity of 3,745 pounds, tipping load of 10,700 pounds and a lift height of 125 inches.

Like the rest of their Gen2 brethren, these new loaders feature an improved ride thanks to a new undercarriage design that is suspended from the chassis by independent torsion axles. The design allows the bogie wheels on the loader to flex, making for a smoother ride while reducing vibration and shocks experienced while operating on rough terrain.

The Gen2 lineup now consists of 11 models, ranging in size from 665 pounds to 3,745 pounds of ROC: R070T, R160T, R165S, R185S, R190T, R200S, R265T, R350T/Forestry, V200S, V230S.*

*R model numbers indicate a radial lift machine, while V indicates a vertical lift machine.

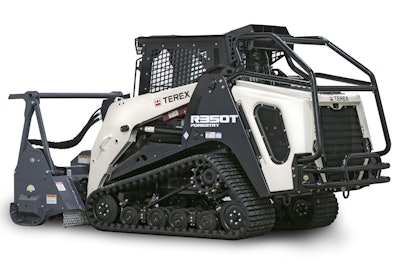

R350T ForestryR350T Forestry
