Engine Repowers: The complicated business of putting a new diesel in an old machine

Updated Jul 16, 2017
Screen Shot 2017-07-11 at 10.55.33 AM

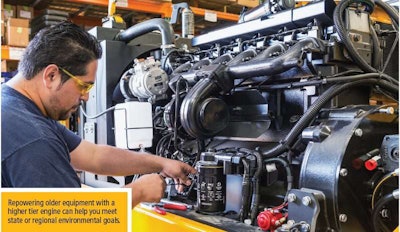

Maintenance Lead 0717 E1499788703511
It used to be easy to replace an engine in an older piece of diesel-powered equipment in the era before emissions controls.

In many cases today, that process doesn’t start with an engine hoist, but instead requires permission from air quality regulators before you touch a wrench. That’s because with each new iteration of diesel exhaust emission technology – from Tier 0 to Tier 4 Final – engines produce fewer emissions and the government doesn’t want any backsliders. You can’t put an older tier engine in a machine that came from the factory with a newer, cleaner engine. It’s the law.

The good news is that in most of the country you can still do a like-for-like swap, putting a Tier 3 engine in a machine that had a Tier 3 engine in it previously and on down and up the line. And in many cases, you can upgrade from a Tier 1 to a Tier 3 engine, or Tier 2 to Tier 3 and thereby reap the benefits of a better, more efficient engine.

CARB

But in California and many large cities with air pollution problems, even a like-for-like swap may not satisfy the authorities.

The California Air Regulatory Board doesn’t so much look at individual machines as it does a contractor’s total fleet emissions output. “The CARB rules have a lot of particulars you want to stay abreast of,” says Darin Schultz, sales manager at Perkins Pacific. “We tell customers to use a consultant to find out exactly what they can and can’t use.”

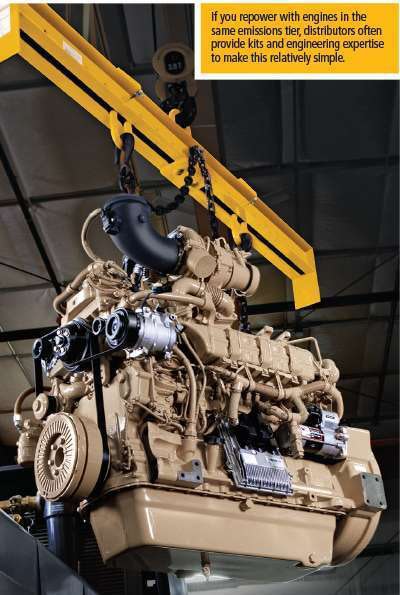

Maintenance0717 AIf a California contractor has a mostly new fleet of equipment powered by Tier 4 Interim or Tier 4 Final engines, CARB may decide this contractor can do the occasional like-for-like swap on a few of his machines powered by a lower tier engine. If a contractor has a lot of mostly older machines, however, CARB may decide the contractor needs to put in a higher tier engine in an older piece of equipment, or scrap the old equipment and buy a new machine to reduce his total emissions output.

“California has a plethora of regulations – from off-road, on-road, portable, stationary and ag –  that drive the users to make hard decisions whether to replace or rebuild,” says Glen Chrusciel, program manager, retrofit and repower at John Deere Power Systems. “Initially it was a lot of rebuilds, taking Tier 1 machines and upgrading them to Tier 3. That was easy. Now as we’re getting close to 2020, a lot of these milestones become difficult to meet. We’re finding replacement of the whole machine to be the best bang for the buck.”
